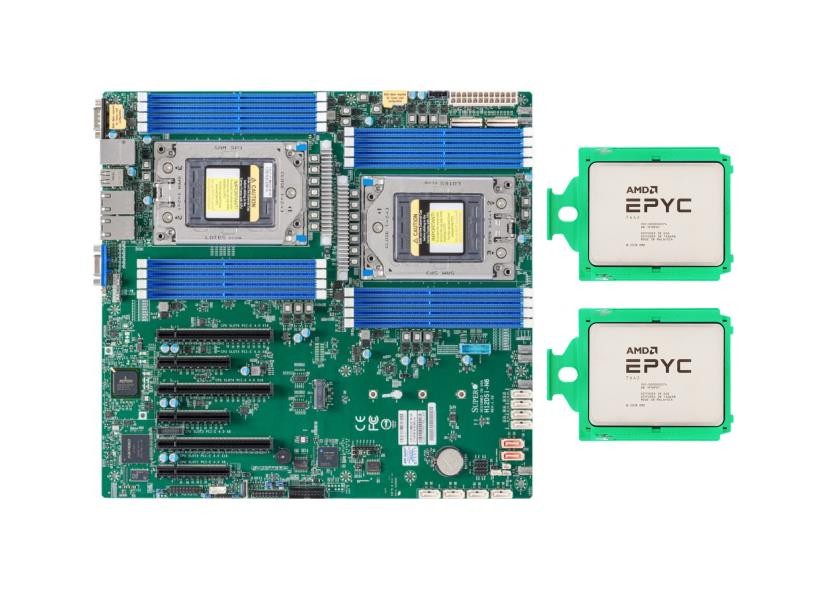

Package include: 1x Supermicro H12DSi-N6 Motherboard 2x AMD EPYC 7642 CPU 48 Core 96 Threads Processors
AMD EPYC™ 7642Specifications# of CPU Cores48# of Threads96Base Clock2.3GHzMax Boost ClockUp to 3.3GHzTotal L3 Cache256MBPackageSP3Socket Count1P/2PPCI Express® VersionPCIe 4.0 x128Default TDP / TDP225WSystem MemorySystem Memory SpecificationUp to 3200MHzSystem Memory TypeDDR4Memory Channels8Per Socket Mem BW204.8 GB/sFoundationProduct FamilyAMD EPYC™Product LineAMD EPYC™ 7002 SeriesPlatformServerOPN Tray100-000000074OPN PIB100-100000074WOF
Motherboard Product SKUs MBD-H12DSi-N6 - 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) - Socket SP3
Cores Chipset System Memory Memory Capacity - 16 DIMM slots
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
- 8-channel memory bus
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type - DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v. 2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2600 BMC
Network Controllers - Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA Input / Output SATA LAN - 2x 1GbE LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 2 USB 2.0 ports (rear)
- 4 USB 3.0 ports (2 rear, 2 headers)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connectors
- 4 PCI-E 4.0 NVMe x4 internal ports
- TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 4.0 x16 slots
- 3 PCI-E 4.0 x8 slots
M.2 - Interface: 1 PCI-E 4.0 x4
- Form Factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H12DSi-N6) 2U - SCLA25TQC-R609LP
- AS -2024S-TR
System BIOS BIOS Type - AMI 256Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 6.2
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
- CPU switching voltage regulator
- VBAT
FAN - Up to 8 fan status tachometer monitoring
- Up to 8x 4-pin fan headers
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Environment / Compliance
Environmental Specifications- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
