Supermicro X11DPI-N Motherboard E-ATX Intel Xeon Scalable LGA3647 Mainboard C621 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

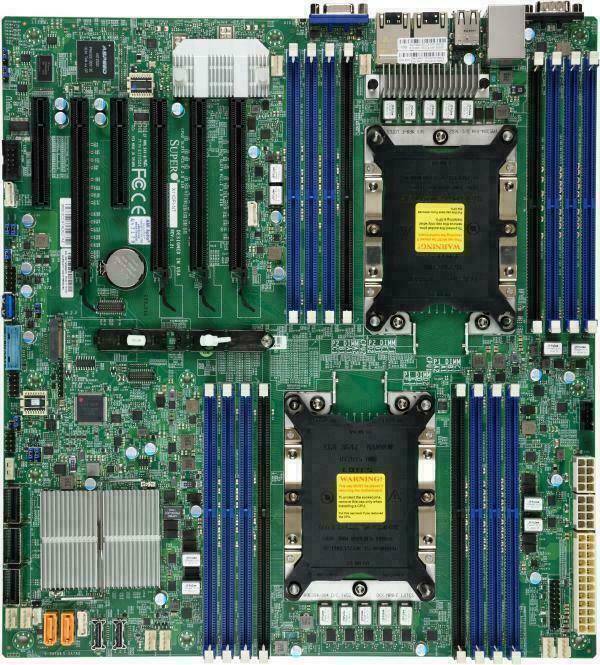

Supermicro X11DPI-N Motherboard E-ATX Intel Xeon Scalable LGA3647 Mainboard C621

Price: CN $759.00

Specifications
Product SKUs
MBD-X11DPi-N

12" x 13" (30.48cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

Cores / Cache

Up to 28 cores

Note

BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory
Memory Capacity

Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

Memory Type

2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 256GB

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset

Intel® C621

SATA

Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2500

Network Controllers

Dual LAN with 1GbE LAN with Intel® X722

Graphics

ASPEED AST2500 BMC

Input / Output
SATA

14 SATA3 (6Gbps) port

LAN

2 RJ45 Gigabit Ethernet LAN ports

USB

4 USB 2.0 ports (2 rear + 2 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output

1 VGA port

Serial Port / Header

2 COM Ports (1 rear, 1 header)

TPM

1 TPM Header

Expansion Slots
PCI-E

4 PCI-E 3.0 x16,
2 PCI-E 3.0 x8

M.2

M.2 Interface: PCI-E 3.0 x4
Form Factor: 2260, 2280, 22110
Key: M-Key

System BIOS
BIOS Type

AMI class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage

+12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages

FAN

8x 4-pin fan headers (up to 8 fans), PWM fan speed control

Temperature

CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED

CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED

Other Features

ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID

Operating Environment
Operating Temperature Range
