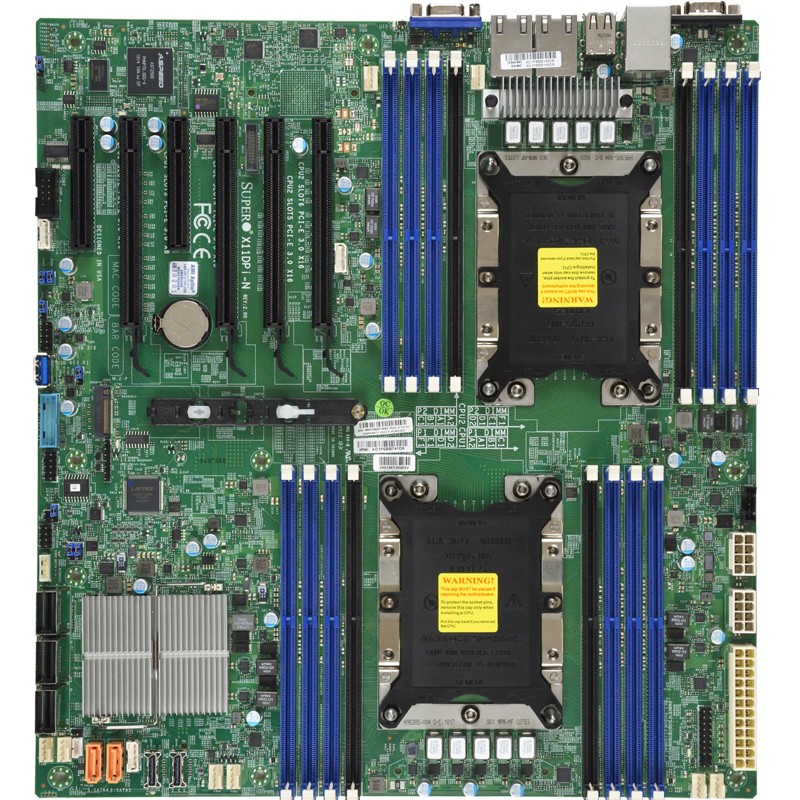

Specifications Product SKUs MBD-X11DPi-N

• X11DPi-N

Physical Stats Form Factor

• E-ATX

Dimensions

• 12" x 13" (30.48cm x 33.02cm)

Processor/Cache CPU

• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
• Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s

Cores / Cache

• Up to 28 cores

Note

• BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory Memory Capacity

• Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
• Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
• Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

Memory Type

• 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

• RDIMM: 64GB
• LRDIMM: 128GB
• 3DS LRDIMM: 256GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel® C621

SATA

• Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

• ASPEED AST2500

Network Controllers

• Dual LAN with 1GbE LAN with Intel® X722

Graphics

• ASPEED AST2500 BMC

Input / Output SATA

• 14 SATA3 (6Gbps) port

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 4 USB 2.0 ports (2 rear + 2 via headers)
• 5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output

• 1 VGA port

Serial Port / Header

• 2 COM Ports (1 rear, 1 header)

TPM

• 1 TPM Header

Expansion Slots PCI-E

• 4 PCI-E 3.0 x16,
• 2 PCI-E 3.0 x8

M.2

• M.2 Interface: PCI-E 3.0 x4
• Form Factor: 2260, 2280, 22110
• Key: M-Key

System BIOS BIOS Type

• AMI UEFI

Management Software

• Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring Voltage

• +12V, +3.3V, +5V, +5V standby, 3.3V standby, Monitors CPU voltages

FAN

• 8x 4-pin fan headers (up to 8 fans), PWM fan speed control

Temperature

• CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED

• CPU / System Overheat LED, UID/Remote UID, BMC/IPMI Heartbeat LED, Power LED

Other Features

• ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, NCSI header, Node Manager Support, RoHS, SDDC, UID

Operating Environment Operating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)
