Supermicro X9SCL-F LGA1155 mATX Server Motherboard IPMI Dual LAN + I/O Shield For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

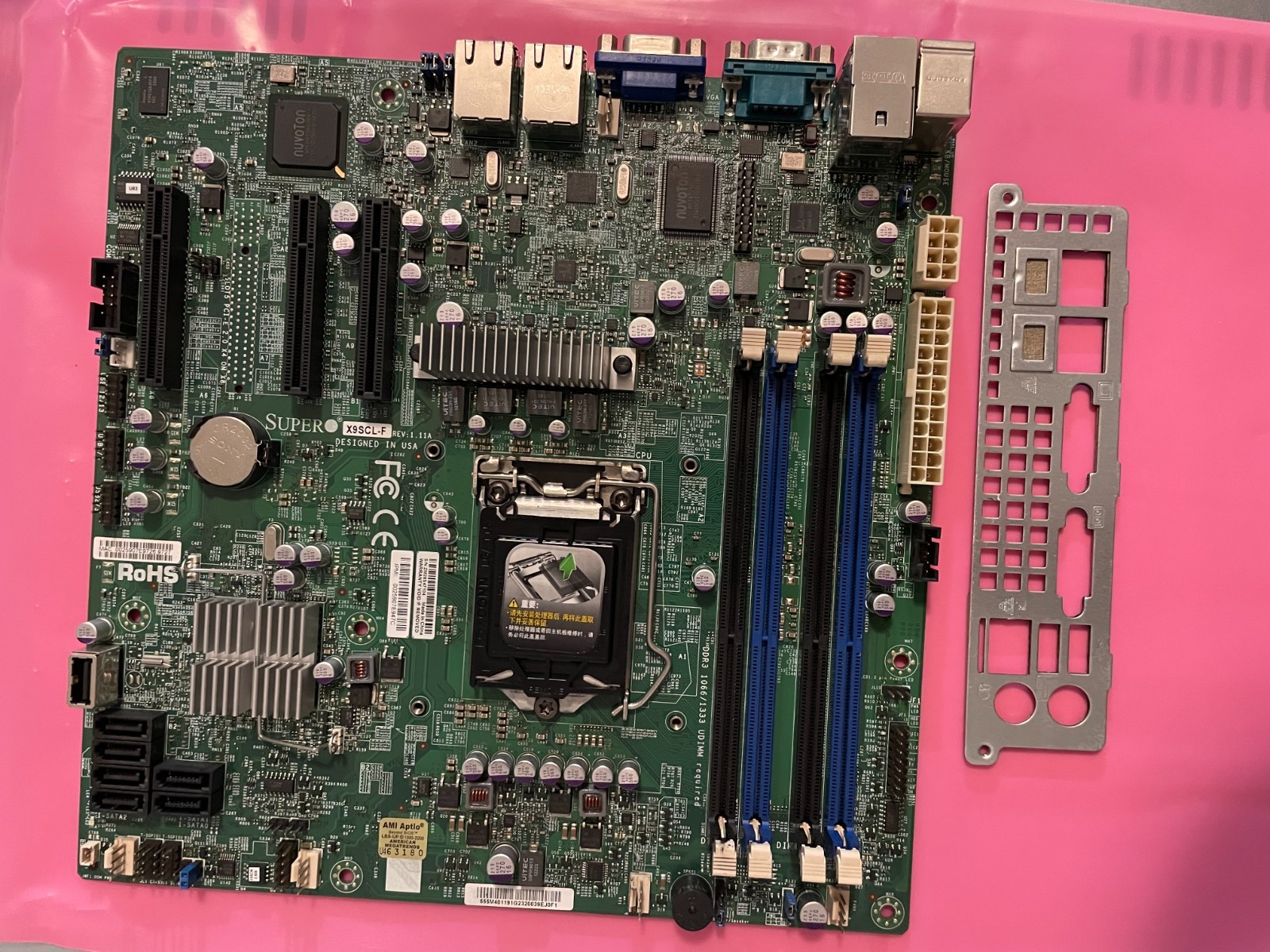

Supermicro X9SCL-F LGA1155 mATX Server Motherboard IPMI Dual LAN + I/O Shield

Price: US $30.00

Supermicro X9SCL-F Micro ATX Server MotherboardSocket LGA1155 (H2) · Intel C202 Chipset

A proven, no-nonsense server board built for 1U and low-power builds — a longtime homelab and budget-server favorite thanks to full IPMI 2.0 remote management and dual Intel Gigabit NICs. Ideal for a pfSense/OPNsense firewall, TrueNAS/FreeNAS box, Proxmox/ESXi host, or an always-on home server.

Chipset: Intel C202

CPU Support: Intel Xeon E3-1200 & E3-1200 v2 series, plus 2nd/3rd-gen Core i3, Pentium, Celeron

Memory: 4× DDR3 DIMM, up to 32GB ECC or non-ECC UDIMM (1333/1066 MHz)

Form Factor: Micro ATX (9.6" × 9.6")

Networking: Dual Intel 82574L Gigabit LAN + dedicated IPMI LAN port

Remote Management: IPMI 2.0 with KVM-over-LAN and virtual media (Nuvoton BMC) — full headless control

Storage: 6× SATA2 (3Gb/s), RAID 0/1/5/10

Expansion: PCIe 2.0 slots (1× x8 + 1× x4 in x8 slot)

USB: 9× USB 2.0 (2 rear + 6 via header + 1 Type-A)

Onboard Video: VGA (Matrox G200eW), plus serial/COM

Condition: Pulled from a working environment and in good operational condition. Removed during a decommission/upgrade. Any cosmetic wear is normal for used server hardware.

Included: Motherboard + matching I/O shield. CPU and RAM not included. No other accessories unless pictured.

Ships securely in an anti-static bag with protective packaging. Fast shipping. Questions welcome.
