TRENDnet Hardened Industrial 90W Gigabit 4Port poe Injector TIIG90 Brand: TRENDnet UPC: 0710931161595 Mfr Part #: TIIG90

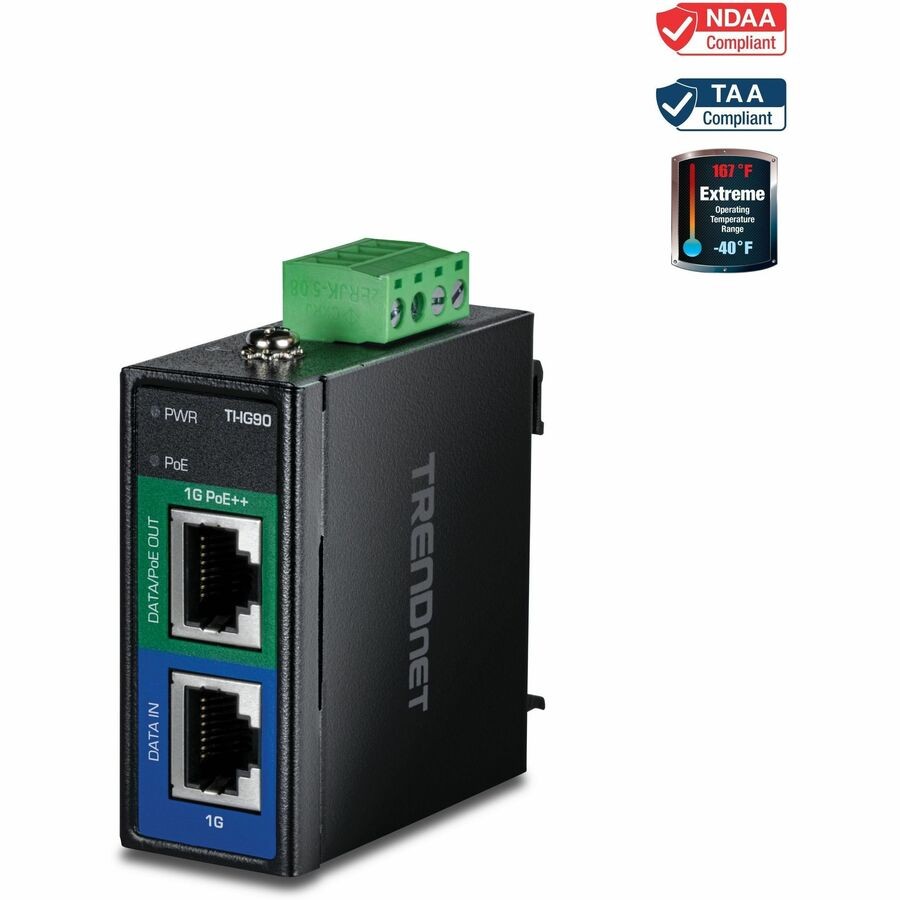

General InformationTRENDnet's TI-IG90 is a reliable IP50 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, or PoE++ (up to 95W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.

DEVICE INTERFACE: 1 x Gigabit port (10Mbps/100Mbps/1Gbps); 1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps); 4- pin
power terminal block; LED Indicators
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions
that government customers demand today. (U.S. and Canada only)
POE++: Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device.
CONNECTION DISTANCE: Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet
cable up to 100 meters (328 ft.) to network a PoE device.
INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of
vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).
DIN RAIL & WALL MOUNTS: IP50 rated industrial injector includes DIN-Rail mount and wall mount hardware
POWER SUPPLY SOLD SEPARATELY: Use this industrial injector with the compatible power supply model TI-S15052 (Sold
Separately)
FAULT TOLERANCE: The industrial PoE++ injector features 48 - 57V DC power input with overload current protection
GROUNDING POINT: The injector features a grounding point to protect equipment from external electrical surges
ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV,
Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV

More from the Manufacturer

Technical InformationProtection Type:Overload Protection

Power DescriptionInput Voltage:57 V DCMaximum Output Power:95 W

Physical CharacteristicsForm Factor:DIN Rail/Wall MountableMount Type:DIN Rail/Wall (Approximate):4.73 oz

Hardened Industrial 90W Gigabit 4PPoE Injector

Removable terminal block

DIN-rail and wall mount kit

Certifications & Standards:

Standards:

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE (IEC 60068-2-27)

Freefall (IEC 60068-2-31)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Country of Origin:TaiwanTAA Compliant:YesNDAA Compliant:Yes
