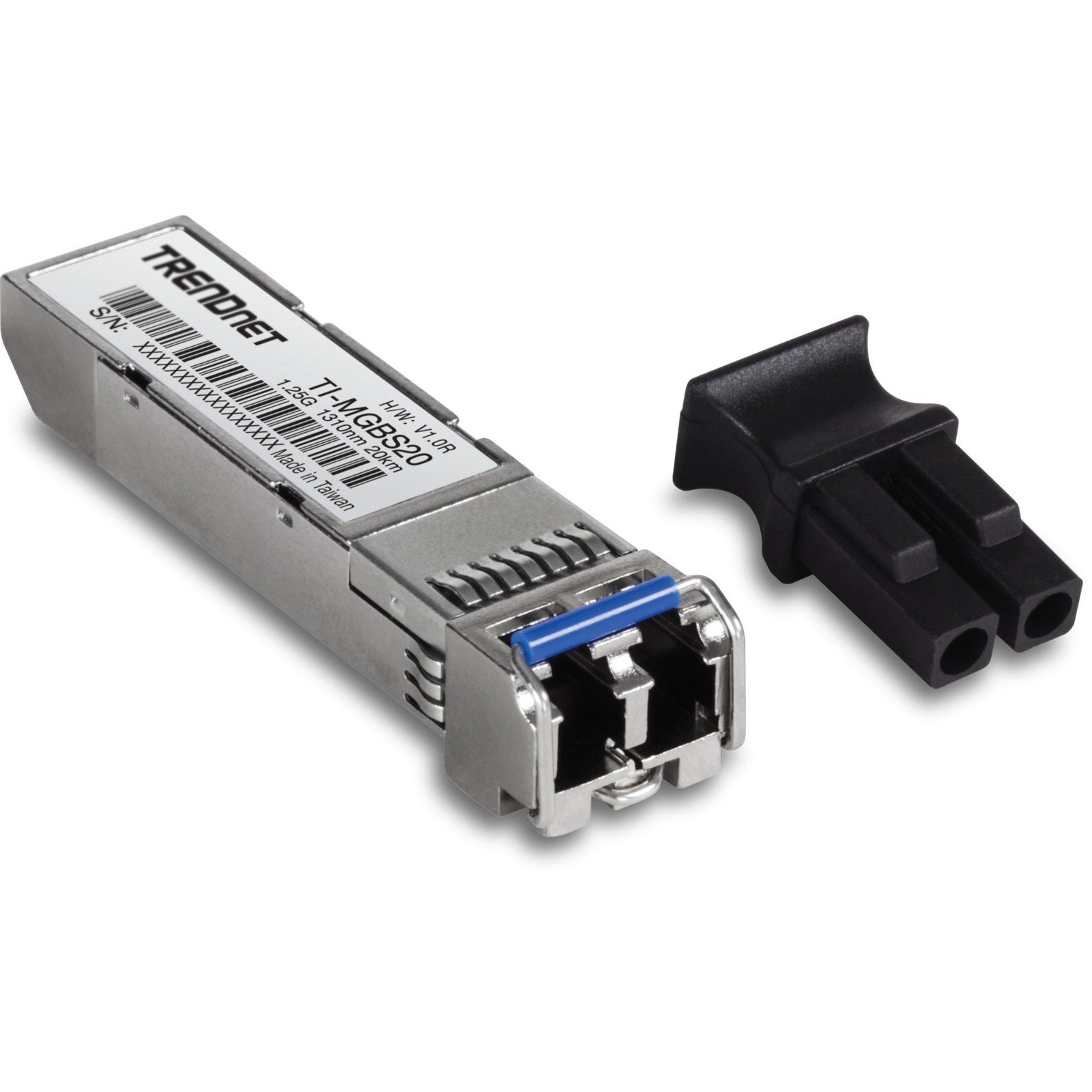

TRENDnet 1000Base-LX Industrial SFP Single- Mode LC Module [20km] (ti-mgbs20) TRENDnet 1000Base-LX Industrial SFP Single- Mode LC Module [20km] (ti-mgbs20)

International Customers: All electronic products are packaged for sale in the US with US voltage.

TAA Compliant: Yes

Compatibility: MSA Compliant

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
• Extreme operating temperature range of -40°- 85 ° C (-40° - 185 ° F)
• Supports data rates of up to 1.25Gbps
• Transmission distance of up to 20km (12.42 mi.)
• Low Electromagnectic Interference (EMI) design
• Supports 1310nm single -mode network transmissions
• Duplex LC optical interface
• Low power consumption
• Lifetime Warranty
• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 1000Base-LX Industrial SFP Single -Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.).

Fiber Applications

Long- distance fiber networking for industrial, manufacturing, corporate, and /university campus applications

Fiber Distance

Single- Mode transceiver spans distances up to 20km (12.42 mi.) and supports up to with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors

Hot-Pluggable SFP

Hot-pluggable industrial SFP transceiver compatible with an MSA compliant SFP slot

Fiber Wavelength

Compatible with single mode 1310nm wavelength

Fiber Distance

This industrial SFP Supports networking for distances up to 20km (12.42 mi.)

Fiber Interface

LC-type duplex connector

Operating Temperature

? The industrial SFP is rated for an extreme operating temperature range of -40°- 85 ° C (-40° - 185 ° F)

SpecificationPhysical CharacteristicsForm FactorHot-pluggableWeight (Approximate)0.04 WarrantyLifetimeInterfaces/PortsTotal Number of Ports1Connector TypeLCInterfaces/Ports Details1 x LC Duplex 1000Base-LX NetworkGeneral InformationBrand NameTRENDnetMarketing InformationTRENDnet's 1000Base-LX Industrial SFP Single -Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.). DEVICE INTERFACE: SFP MSA Compliant; LC Duplex Connector; Low Electromagnetic Interference (EMI) Design LIFETIME PROTECTION -We stand by the quality of our products. The TI-MGBS20, 1000Base-LX Industrial SFP Single- Mode LC Module (20km) is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant 1000Base-LX Industrial SFP Single- Mode LC Module , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) DATA RATES & RANGE: SFP module supports data rates up to 1.25Gbps with transmission distances of up to 20km (12.42 Miles) EXTREME OPERATING TEMPERATURE: The industrial SFP is rated for an extreme operating temperature range of -40°- 85° C (-40° - 185° F) INTERFACE & COMPATABILITY: The SFP module is compatible with duplex LC fiber connector types. Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors. FIBER APPLICATIONS: This industrial SFP LC module can be used for long distance fiber networking for industrial, manufacturing, corporate, and school campus applications. Easy plug and play installation. FIBER WAVELENGTH: Compatible with single mode 1310nm wavelength IEEE 802.3z Gigabit Ethernet & ANSI Fiber Channel Compliant. Also compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) More from the Manufacturer Product TypeSFPProduct Name1000Base-LX Industrial SFP Single- Mode LC Module (20km)ManufacturerTRENDnetManufacturer Part NumberTI-MGBS20Media & PerformanceEthernet Technology1.25 Gigabit EthernetMaximum Data Transfer Rate1.25 Gbit/sMaximum Distance Supported20 kmMedia Type SupportedOptical FiberFiber Mode SupportedSingle-modeFiber Optic Cable Wavelength1310 nmNetwork Technology1000Base-LXTitleProduct TitleTRENDnet TI-MGBS20, 1000Base-LX Industrial SFP Single- Mode LC Module [20km], Lifetime Protection (TIMGBS20)Technical InformationApplication/Usage

• Data Networking
• Optical Network

Environmental ConditionsMaximum Operating Temperature-121°F (-85°C)Minimum Operating Temperature-40°F (-40°C) Shipping
