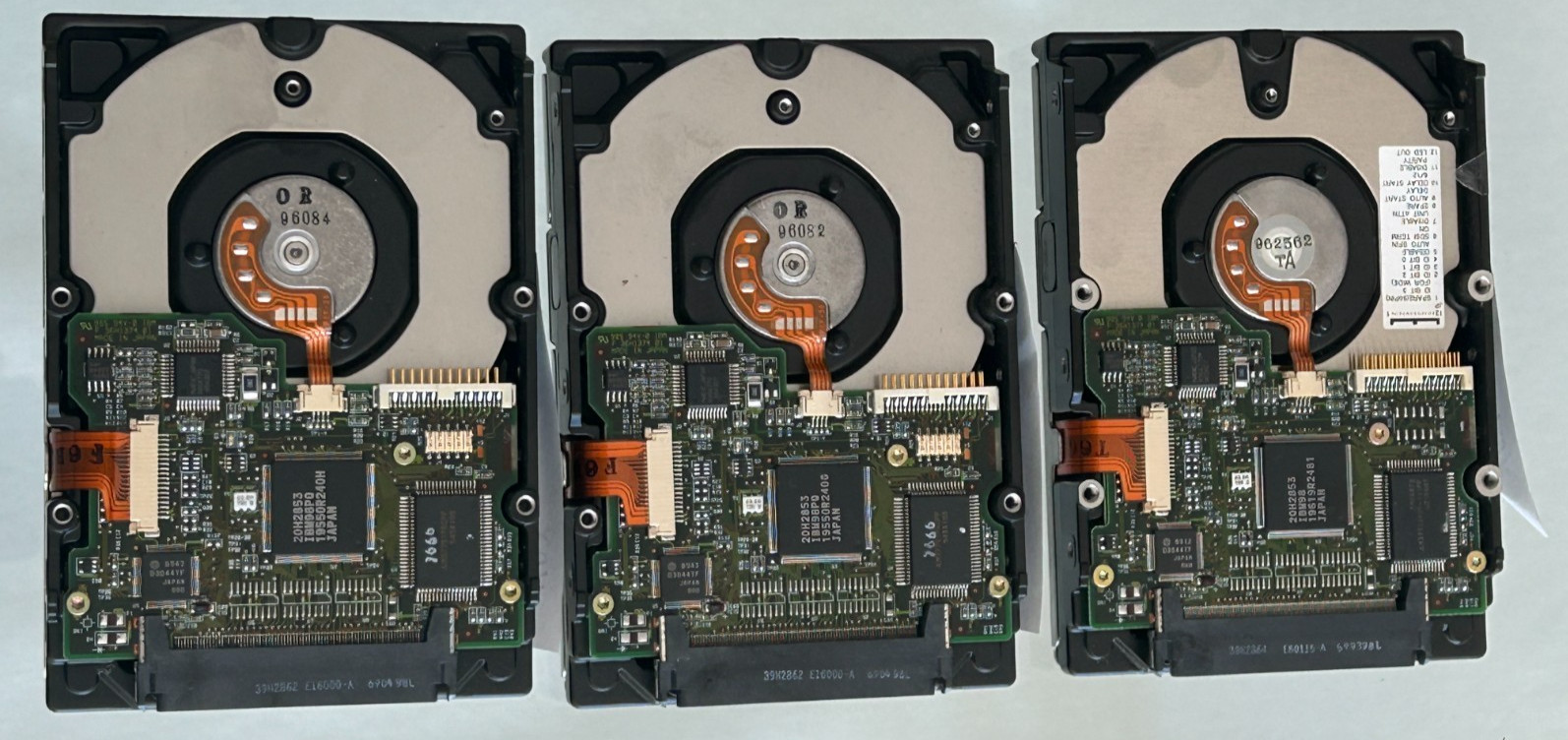

Tested - 3X SGI IBM DORS-32160 2.16GB 3.5" 80-Pin SCA SCSI HDD 013-1578-001
Price: US $275.00

Lot of 3 SGI HDD IBM DORS-32160 2.16GB 80-Pin SCA SCSI Hard Drive.These drives were tested by formatting them.The formatting process completed successfully and the drive reported its expected capacity. Please review the photos for the actual test and formatting results. The drive was formatted to remove previous data and is being sold ashardware only.These drives can easily be reformatted for use with the SGI IRIX operating system using the disk utilities included with IRIX.

Vintage IBM SCSI hard drive manufactured in Japan in March 1996. This particular drive carries SGI part number 013-1578-001 and uses an 80-pin SCA SCSI connector, rather than the conventional 50-pin connector found on some other versions of the IBM

  • Model: DORS-32160
  • IBM Part Number: 46H6082
  • SGI Part Number: 013-1578-001
  • Capacity: 2160 MB (2.16 GB)
  • Form Factor: 3.5-inch
  • Interface Type: Fast/Wide SCSI
  • Connector Type: 80-pin SCA (Single Connector Attachment)
  • Rotational Speed: 5,400 RPM
  • Factory SCSI ID: 0, as marked on the label
  • Power Rating: +5V 300mA / +12V 200mA
  • Manufactured: Japan
  • Manufacture Date: March 1996

    • The 80-pin SCA connector combines the SCSI interface and power connections into a single connector and was commonly used with workstation/server drive backplanes. Please verify that your system, backplane, or adapter supports an 80-pin SCA drive before purchasing.
