Product description 47mm low profile height

Fits in most small form factor case, for mini-ITX machines and HTPCs, while TL-9015 slim fan is capable of generating enough airflow to cool heatsink and motherboard components

100% RAM and PCIe compatibility

Optimized heatsink design for compatibility for ITX motherboard, even the PCIe and RAM slots are close to CPU socket, AXP90-X low profile cooler is still compatible with high memory modules or thick PCIe cards

Dual Soldered Process

Both Nickle plated copper base and four high performance heat pipes are soldered with fins for maximum heat transfer and withstand usage over long period of time

Customer Reviews 4.9 out of 5 stars 37 — — 4.9 out of 5 stars 13 5.0 out of 5 stars 2 4.6 out of 5 stars 6 Intel/AMD CPU Socket "LGA2066, LGA2011 v3, LGA2011, LGA1150, LGA1151, LGA1155, LGA1156; AMD: AM4" "LGA2066, LGA2011 v3, LGA2011, LGA1150, LGA1151, LGA1155, LGA1156; AMD: AM4," "LGA2066, LGA2011 v3, LGA2011, LGA1150, LGA1151, LGA1155, LGA1156; AMD: AM4" "LGA2066, LGA2011 v3, LGA2011, LGA1150, LGA1151, LGA1155, LGA1156; AMD: AM4" "LGA2066, LGA2011 v3, LGA2011, LGA1150, LGA1151, LGA1155, LGA1156; AMD: AM4" AM2+ ~ AM4 CPU Fan Speed 1500±10%RPM 1500±10%RPM 1500±10%RPM 1850±10%RPM 1850±10%RPM no data Airflow 66.17CFM（MAX） 66.17CFM（MAX） 66.17CFM（MAX） 82CFM（MAX） 82CFM（MAX） no data heat pipe 4*6mm heatpipes 4*6mm heatpipes 5*6mm heatpipes 5*6mm heatpipes 5*6mm heatpipes no data Maximum TDP 180W 180W 200W 225W 245W no data Noise Level ≤25.6DBA ≤25.6DBA ≤25.6DBA ≤29.6DBA ≤29.6DBA no data Dimensions(L×W×H) "120×71×157(mm) 4.72×2.8×6.18(inches)" "120×71×154(mm) 4.72×2.8×6.06(inches)" "120×71×154(mm) 4.72×2.8×6.06(inches)" "120×73×157(mm) 4.72×2.87×6.18(inches)" "120×70×154(mm) 4.72×2.76×6.06(inches)" no data Current 0.2A（MAX） 0.2A（MAX） 0.2A（MAX） 0.25A（MAX） 0.25A（MAX） no data

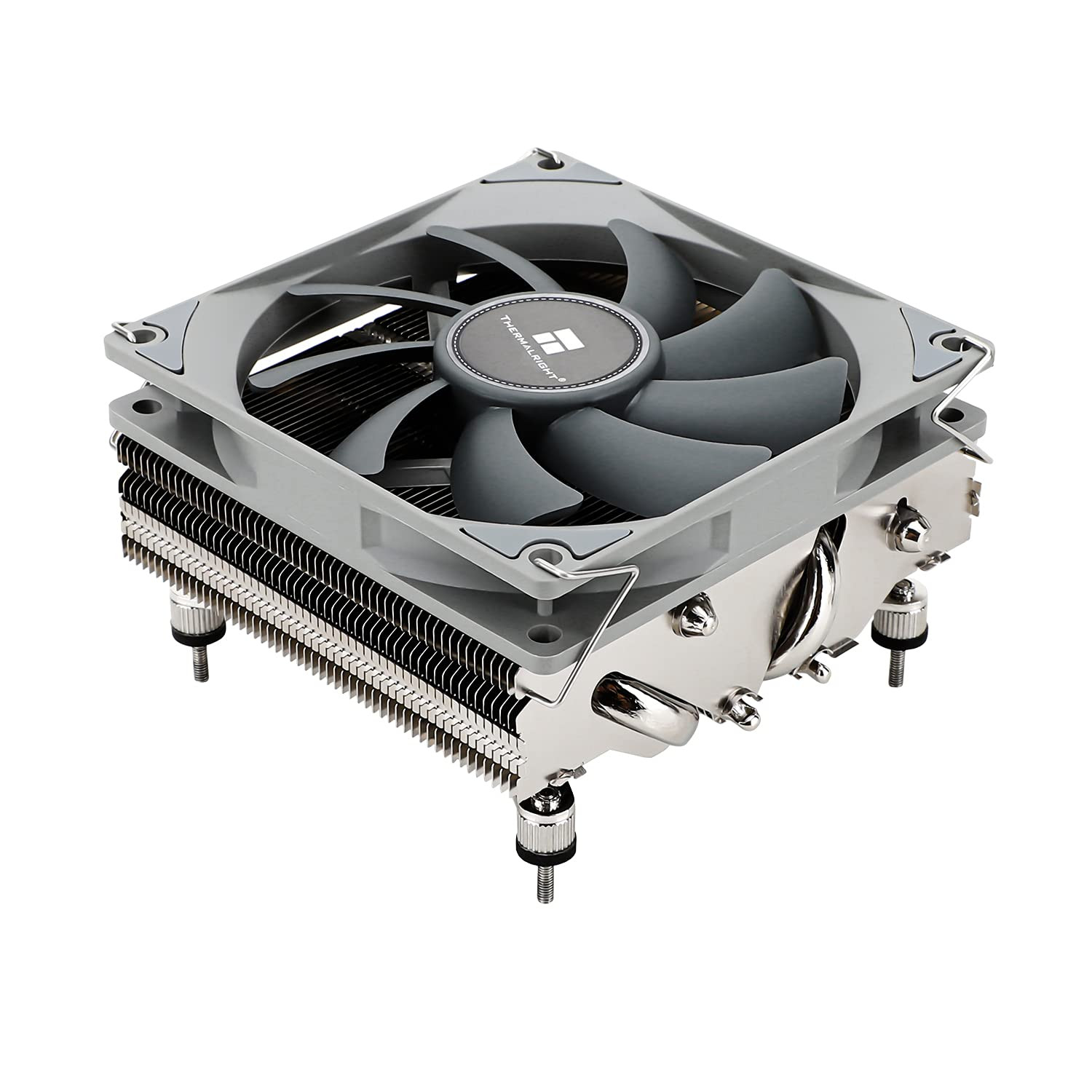

• [Good heat dissipation] The 47mm height downward CPU cooler is composed of a 92mm high-performance cooling fan, a pure copper base, and 4 pure copper heat pipes, which quietly dissipates the high temperature of the CPU, and is suitable for the use of small ITX motherboards and small chassis.
• 【AGHP Technique】4×6mm heat pipes apply AGHP technique, Solve the Inverse gravity effect caused by vertical / horizontal orientation, the cooling effect of the cpu cooler is also doubled by the process of secondary welding of heat pipes and fins.
• 【47mm Height】The AXP90 X47 low profile cooler, combined with a 92mm PWM fan for automatic temperature control and ultra-quiet operation, and a total cooler height of just 47mm, makes it ideal for HTPC, ITX and small models with a small CPU cooler without any memory limitation worries.
• 【Broad Compatibility】The heatsink supports CPU slots: Intel: LGA1700/1851/1150/1151/1155/1156/1200; AMD/AM4/AM5, for different platforms, the heatsink is equipped with the corresponding metal mounting fasteners, which can be installed in conjunction with the manual or installation video.
• 【CPU Cooler Specifications】cpu cooling Size: 94.5×95×47mm, matched fan: TL-9015, air volume: 42.58CFM (MAX), air pressure: 1.33mmH2O (MAX), rotational speed: 2700RPM ± 10%, noise: 22.4db (A), fan pin: 4PIN PWM, radiator material: aluminum. The attached heat transfer paste can provide good cooling effect and improve the heat transfer of the CPU.
