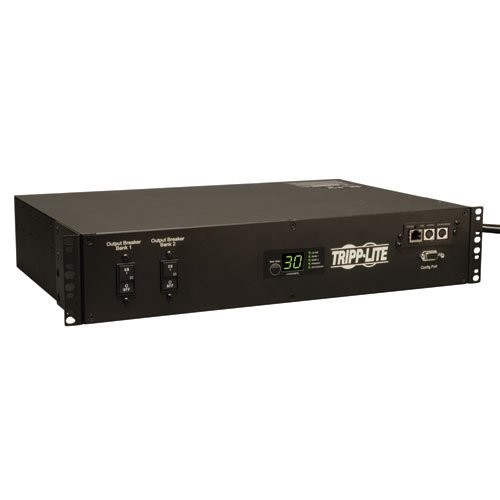

Tripp Lite Switched PDUMH30HVATNET 19-Outlets PDU - 1 x NEMA L6-30R, 2 x IEC 60320 C19 - 2U Horizontal Rackmount Tripp Lite Switched PDUMH30HVATNET 19-Outlets PDU - 1 x NEMA L6-30R, 2 x IEC 60320 C19 - 2U Horizontal Rackmount
International Customers: All electronic products are packaged for sale in the US with US voltage.
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
PDUMH30HVATNET 2U horizontal rackmount Auto Transfer Switch / ATS offers 30A 208/240V multi-outlet power distribution with dual input connections, individually switched outlets, built-in network interface and digital current metering. Includes separate L6-30P primary and secondary input cords and 19 switched output receptacles. Built-in network interface enables remote SNMP/Web monitoring and control. Remotely displays status of input power, load level and outlet power status via secure network or web browser interface. Supports optional environmental and contact-closure sensor options. Offers programmable or real-time individual outlet control to power on, off, or cycle AC output to regain control of locked-up servers and other network devices.
SpecificationPower DescriptionInput Voltage230 V ACPhysical CharacteristicsMount TypeRack-mountableMounting OrientationHorizontalRack Height2UWarrantyLimited Warranty2 YearGeneral InformationBrand NameTripp Lite seriesMarketing Information Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. More from the Manufacturer Product TypePDUProduct NameSwitched PDUMH30HVATNET 19-Outlets PDUManufacturerEaton CorporationManufacturer Part NumberPDUMH30HVATNETProduct ModelPDUMH30HVATNETProduct SeriesSwitchedTitleProduct TitleTripp Lite by Eaton PDU 5.8kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V L6-30P Inputs 16-C13 2-C19 & 1 L6-30R Outlet 2U TAA (PDUMH30HVATNET)Technical InformationPlug/Connector Detail2 x NEMA L6-30PReceptacle Type
- NEMA L6-30R
- IEC 60320 C19
- IEC 60320 C13
Receptacle Detail
- 1 x NEMA L6-30R
- 2 x IEC 60320 C19
- 16 x IEC 60320 C13
Plug/Connector TypeNEMA L6-30PPDU TypeSwitchedManagementManagement Protocols: HTTP HTTPS PowerAlert Network Management System SMTP SNMPv1 SNMPv2 Telnet SSH FTP DHCP BOOTP NTP Shipping
