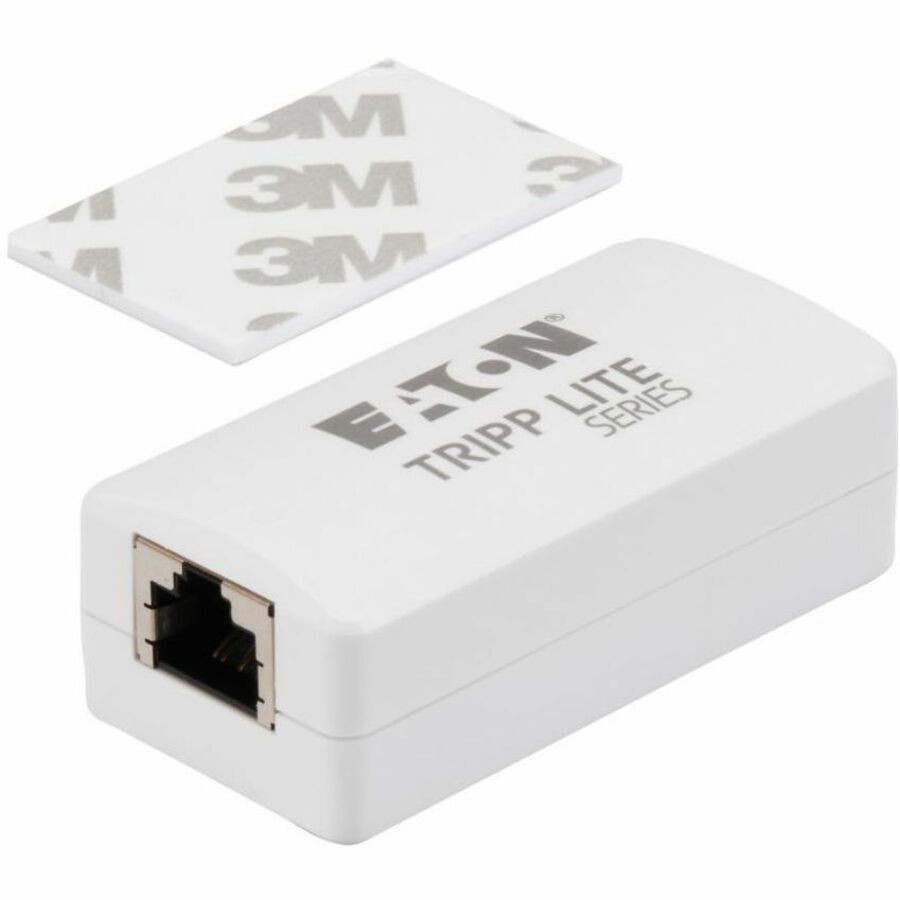

Tripp Lite series N234-MI-BX Medical-Grade Ethernet Network Isolator for Patient Care Vicinities Brand: Eaton UPC: 0037332287120 Mfr Part #: N234MIBX
General Information
Isolates Medical Equipment on an Ethernet Network to Enhance Patient Safety
The N234-MI-BX connects medical equipment to a non-medical appliance or system, such as a single computer or a local Ethernet network. It protects staff and patients from dangerous leakage currents that can travel through standard copper Ethernet cable without affecting the flow or speed of 10G data.
Ideal for Use in a Wide Range of Medical Applications
This medical-grade isolator is recommended for interfacing between medical and non-medical equipment where no essential performance is required. The suitability of use and isolation shall be determined in the end use application and evaluation. It is also ideal for connecting a clinic or practice's network to the PC of a prolonged EEG system or connecting an analysis computer to a doctor's consulting room with an EMG measuring station.
Compatible with Standard Ethernet-Enabled Medical Equipment and Cabling
This medical-grade isolator is compatible with patient monitoring systems, diagnostic imaging equipment, infusion pumps, medical PCs and laboratory analyzers. It can also be used with network switches, servers and other IT infrastructure in healthcare facilities that require galvanic isolation between medical and non-medical networks. Its RJ45 ports connect to any standard Cat6 Ethernet cable.
Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities
The N234-MI-BX complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical network isolator can be used in patient care vicinities. For example, you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system.
Easy to Install on an Ethernet Network
This Ethernet network isolator has two RJ45 ports and acts as a coupler, joining two tested and approved Cat6 cables to complete the connection between compatible medical equipment and a computer or data network in a patient care vicinity. Because the cables are easily removed from the ports, you can replace a failed cable without replacing the isolator. Completely plug and play, this RJ45 isolator does not require any software or an external power supply.
TAA-Compliant for GSA Schedule Purchases
The N234-MI-BX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Technical InformationConnector Type:RJ-45Features:Plug & PlayIngress Protection (IP) Rating:IPX0Ingress Protection (IP) Rating:IP40
Physical CharacteristicsColor Family:WhiteProduct Color:WhiteColor Details:
Cable Jacket Color White
Material Details:
Copper Ethernet (Approximate):1.76 oz
N234-MI-BX Medical-Grade Ethernet Network Isolator for Patient Care VicinitiesQuick Start EquipmentApplication/Usage:Patient Care VicinityTAA Compliant:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Store Policies
