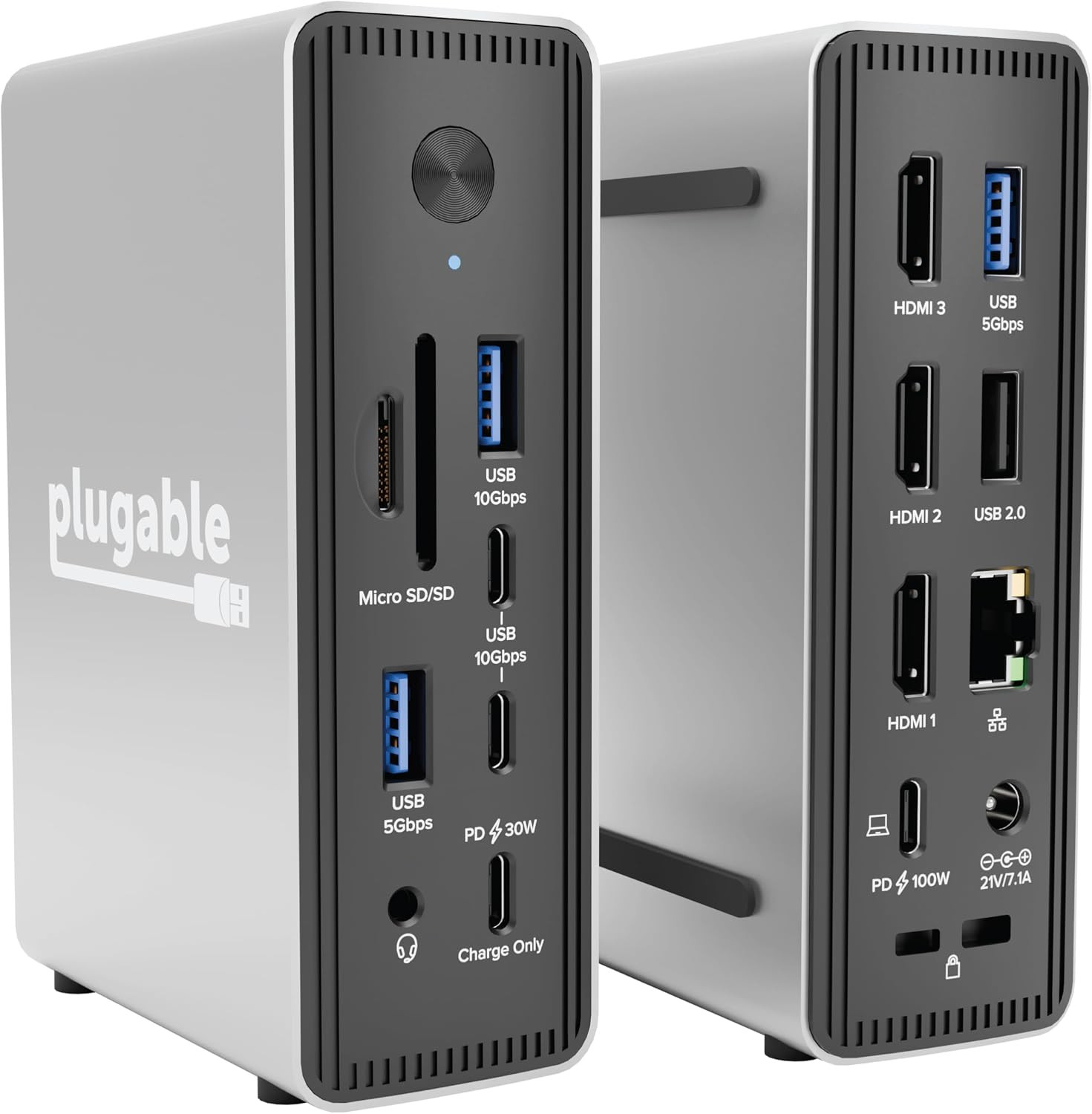

USB-C Triple Display Laptop Docking Station 3 Monitors, 15-In-1: 3X HDMI, Dual 4K or Triple (1X 4K60 + 2X 1080P) 2.5Gbe, 100W PD, 30W USB-C Charge Port, Driverless for Windows, UD-MSTH3Description Hardware Interface USB Type C Compatible Devices function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); Supports full-featured USB-C, USB4, and Thunderbolt systems running Windows 10 / 11 & Intel-based Chromebooks including HP Omnibook / EliteBook / DragonFly / ProBook / Spectre x360 series, Dell XPS / Latitude / Inspiron series, Lenovo ThinkPad / IdeaPad / Yoga, Microsoft Surface Pro / Go / Book / Laptop models, LG Gram, Thousands of other laptops which are compliant with full-featured, standards-compliant USB-C ports. MacBook computers (including the MacBook Pro, Air, and Neo) are not recommended and will only support a single extended display. Windows and ChromeOS ARM systems are not recommended and may only enable one or two external displays at lower resolution. See more Total Usb Ports 8 Number of Ports 16 Total Number of HDMI Ports 3 Wattage 100 watts Minimum Required Operating System Version Windows 11 Item Dimensions L x W x H 3.4"L x 1.7"W x 4.8"H Item Weight 1 pounds Color Space Gray Number of Items 1 Number of Packs 1 Unit Count 1 Count Built-In Media USB C MST Triple Display Dock Model Number UD-MSTH3 Mfr Part Number UD-MSTH3 Warranty Description 2 Year Manufacturer Limited Warranty Total USB Ports 8 Product Dimensions 3.4"L x 1.7"W x 4.8"H Total HDMI Ports 3

Product description UD-MSTH3 Expanded Technical Specifications, Display Details and Connectivity

• Operating System: Windows 10/11 and Intel-based Chromebooks are supported. Not compatible with macOS for extended displays.
• Required Host Connection: Requires a USB-C, USB4, or Thunderbolt port that supports video output.
• Display & Resolution: 3x HDMI 2.0 ports. Maximum resolution and number of displays dependent on the host platform and CPU. See below:
  • Intel 12th Gen or Newer / AMD Ryzen 6000 or Newer: 1 display up to 4K 60Hz, 2 displays up to 2× 4K 60Hz, 3 displays up to 1× 4K 60Hz + 2× 1080p 60Hz
  • Intel 11th Gen or Older / AMD Ryzen 5000: 1 display up to 4K 30Hz, 2 displays up to 2× 1080p 60Hz, 3 displays are not supported
  • Windows on ARM / Snapdragon X-Series / ARM Chromebooks: 1 display up to 4K 60Hz, 2 displays up to 2× 4K 60Hz, 3 displays are not supported.
• Display Limits: The dock cannot exceed your laptop’s total supported display count. The built-in screen may count toward this limit, and some laptops may require the lid to be closed.
• Laptop Charging: Up to 100W charging to the host (laptop) plus a front USB-C charge-only port providing up to 30W to your mobile device.
• 2.5Gbps Ethernet and MicroSD/SD Card Readers: Faster file transfers on 2.5Gbps-enabled networks, or maximize multi-gigabit internet connection. Includes integrated SD card reader - connect memory cards without a separate adapter.
• Driver Requirement: No drivers are required; however, we recommend using the latest graphics and Ethernet drivers.

1 Ports & Connectivity 2 100W Charging Compatibility USB-C Host Port with Video A fully functional USB-C port (Thunderbolt 4 or 5 and most USB4 ports) - enables external displays and host charging up to 100W. Three HDMI 2.0 ports Each HDMI 2.0 port can enable a display up to 4K 60Hz individually, or dual display at 4K 60Hz or, triple display 4K 60Hz and two 1080p60Hz 2.5Gbps Ethernet 2.5Gbps 8P8C LAN enabled by Realtek RTL8156B USB Ethernet adapter - drivers available through Windows Update. We recommend installing the latest drivers from our website or directly from Realtek if you experience any network related issues. USB-C 30W Charging Port One of the front-facing USB Type-C ports is a 30W charge-only port; ideal for charging phones or tablets at up to 30W Power Delivery, charging power is shared with the host computer. This port does not support data transfer.

• Will this dock work with any laptop?

  Most Windows 10 or 11 and ChromeOS systems with full-featured USB-C, USB4, or Thunderbolt ports should be compatible with the Plugable UD-MSTH3 docking station. USB-C video and charging is required, Thunderbolt intrinsically enables these features.

• Is my Apple MacBook Air, Pro, or Neo compatible with the Plugable UD-MSTH3 docking station?

  No, Mac systems do not support MST and are not recommended with the UD-MSTH3, For multi-monitor extended displays on Mac, consider the Plugable’s UD-3900PDZ Triple HDMI Docking Station.

• What are the maximum resolutions supported by this dock?

  Dual displays support up to 2x 4K 60Hz. Triple displays support 1x 4K 60Hz + 2x 1080p60Hz. On select DSC-capable hosts, triple-display output may reach 2x 4K 60Hz + 1x 4K 30Hz. Actual support varies by host, graphics, DSC ratio, and display setup.

• Do I need to install software or drivers for the external displays?

  No, this docking station is driverless, simply relying on the native video output from the USB-C port on your computer. We recommend keeping the system fully up to date to ensure best performance and reliability.

• What type of work or applications is the UD-MSTH3 suitable for?

  This dock is well suited for home and office work. Triple displays provide a large workspace with hardware-accelerated graphics that won’t slow down graphics, video editing, or video playback. 10Gbps USB and 2.5Gbps Ethernet enhance connectivity.

• 15-Port Triple Display USB-C Docking Station: Transform a compatible Windows or ChromeOS laptop into a complete workstation through one cable. Position the dock horizontally or vertically to fit your desk setup while adding three HDMI displays, 100W laptop charging, six USB ports, 2.5Gbps Ethernet, SD and microSD card readers, and 3.5mm audio
• Triple HDMI Extended Displays: This driverless USB C dock utilizes Multi-Stream Transport (MST) to drive a native dual 4K 60Hz monitor setup or a triple display setup with 1x 4K 60Hz, 2x 1080p 60Hz. Perfect for data analysts and financial traders who need to spread out massive spreadsheets, creatives who need accurate color, and big workflows
• 15-Port Expansion and 100W Charging: Power your workday with 100W host charging, plus a dedicated 30W PD USB-C Charge-Only port to fast-charge phones or tablets. Features 6 USB ports: two 10Gbps USB-C, one 10Gbps USB-A - great for high-speed storage, two 5Gbps USB-A - for general connectivity, and one USB 2.0 - for mouse, keyboard, or printer, as well as a 2.5Gbps Ethernet port for low-latency networking, a 3.5mm audio jack, and dedicated SD and microSD slots for quick media transfers
• Windows and ChromeOS Compatibility: This Plugable docking station enables plug-and-play, driverless connectivity for modern USB-C video-enabled, USB4, and Thunderbolt laptops running Windows 11 or newer and ChromeOS systems. Not recommended for Mac or ARM-based systems.
• Lifetime Support: This USBC Docking Station has been designed with reliability at its core and was built to meet the deployment demands of IT departments and the ease of use necessary for home offices. Includes lifetime support from our North American team of connectivity experts
