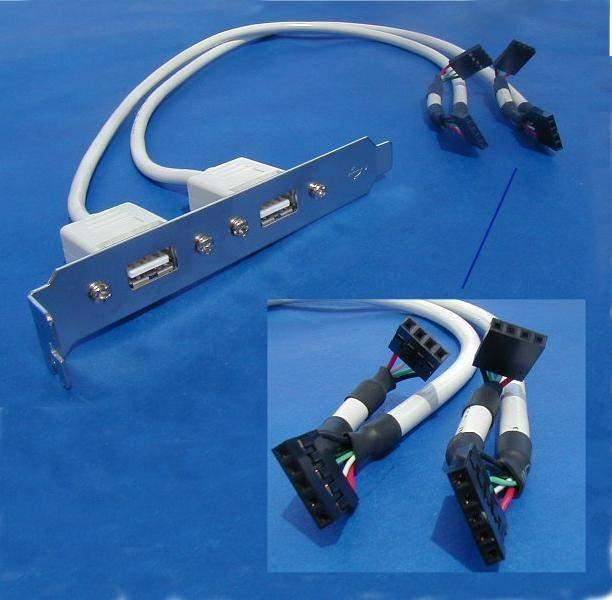

USB PORT DUAL to MAINBOARD PORT 2x5 14in INTEL
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
USB PORT DUAL to MAINBOARD PORT 2x5 14in INTEL
Price: US $9.90
USB to Main Board 2x5 Layout
14 Inch Leads
Layout on Intel Mother BoardsWorks with:
Intel Desktop Board D850GB (PC600 / PC800 RDRAM* RIMM Memory)
Intel Desktop Board D850MD (PC600 / PC800 RDRAM* RIMM Memory)
Intel Desktop Board D850MV (PC600 / PC800 RDRAM* RIMM Memory)
Intel Desktop Board D845HV (PC133 SDRAM Memory)
Intel Desktop Board D845WN (PC133 SDRAM Memory)
Intel Desktop Board D845BG (DDR SDRAM 200/266 Memory)
Intel Desktop Board D845PT (DDR SDRAM 200/266 Memory)
Thanks to those who supplied the Above information.
Most likely works with all Intel Extra USB ports.
PINOUT:Pin Pin1 VCC(Red) 2 VCC(Red)3 Data-(White) 4 Data-(White)5 Data+(Green) 6 Data+(Green)7 Ground(Black) 8 Ground(Black)9 Shell(Black) 10 Shell(Black)Watch the +5 Volts VCC(Red)
