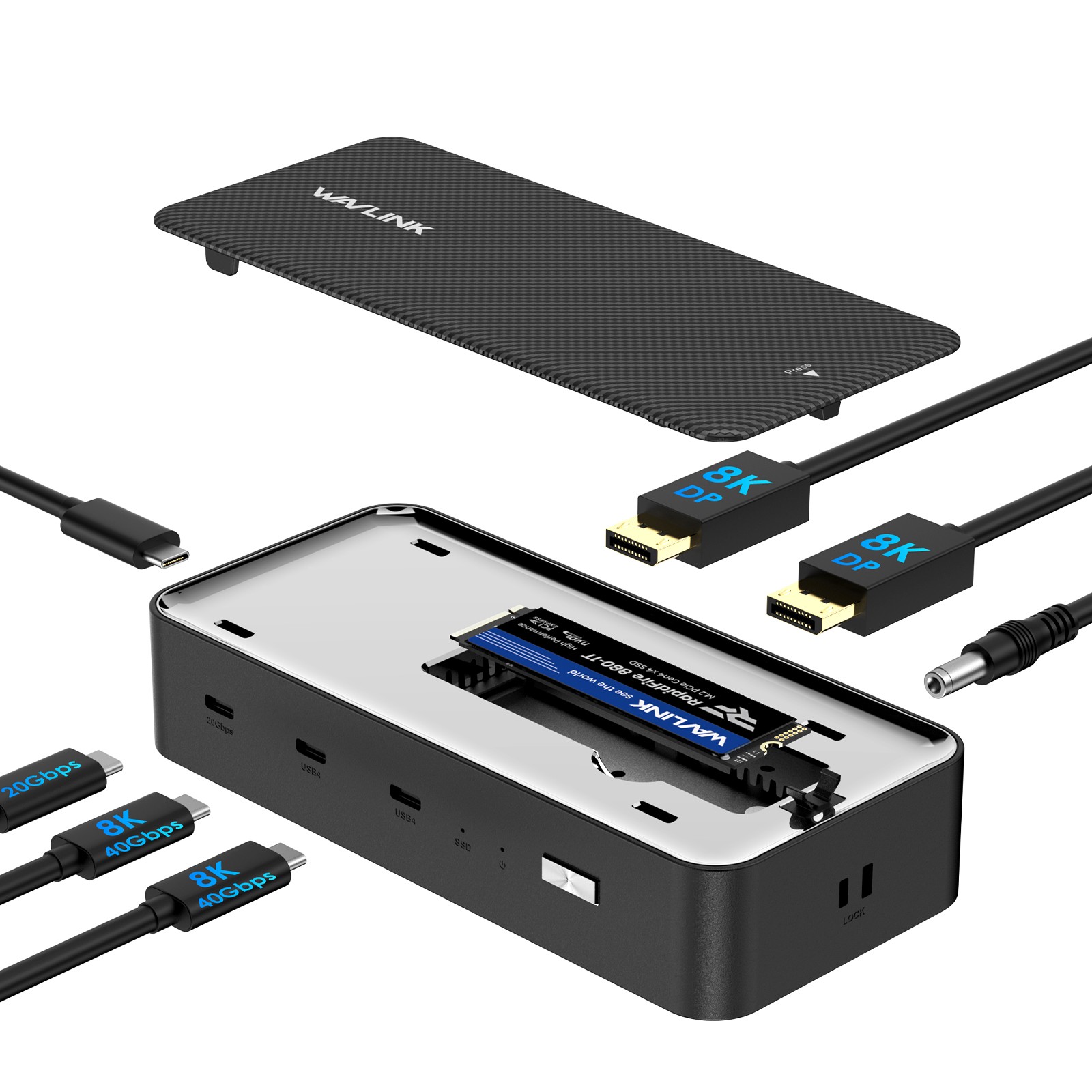

WAVLINK · USB4 · 5-IN-1 SSD DOCKUSB4 8K Docking Station with SSD Enclosure40Gbps · 20Gbps · 8K@60Hz · Triple 4K@120Hz · 100W PDTwo USB4 ports, dual DisplayPort 2.1, a 20Gbps USB-C port and an integrated M.2 PCIe NVMe bay — a true all-in-one workstation hub with instant storage expansion.⚡ 40Gbps USB4💾 M.2 NVMe Bay🖥 8K@60Hz / 3×4K@120Hz🔋 100W PD40GbpsUSB4 Transfer8K@60HzSingle Display3×4K@120Hz Triple8TBMax SSD Capacity100WPass-Through PDFeaturesStorage. Display. Speed. All in One Dock.A hybrid design that replaces your hub, your SSD caddy and your display adapter — with a single USB4 connection.01 5-in-1 SSD Expansion Dock This WAVLINK dock combines 2× USB4 ports, 2× DisplayPort 2.1, a 20Gbps USB-C port and an integrated M.2 PCIe NVMe SSD enclosure. The hybrid design delivers all-in-one functionality: single 8K@60Hz display, triple 4K@120Hz monitor support, blazing 40Gbps and 20Gbps data transfer speeds, and 100W pass-through charging. Everything you need in one powerful hub.02 SSD Enclosure for Instant Storage Upgrade Running low on laptop storage? Simply insert an M.2 PCIe NVMe SSD into the dock’s dedicated enclosure for instant, tool-free expansion. Delivers 20Gbps data transfer with 2004MB/s read and 1770.75MB/s write speeds. Supports M-key SSD up to 8TB, compatible with 2230 / 2242 / 2260 / 2280 sizes.2004MB/s Read1770.75MB/s WriteUp to 8TB2230 / 2242 / 2260 / 228003 8K@60Hz & 4K@120Hz Crystal-Clear Display Drive a breathtaking up to 8K@60Hz monitor or a 3 × 4K@120Hz setup via dual DisplayPort and dual USB4 video outputs on Windows. For macOS, the docking station supports extending up to 2 × 4K@120Hz displays via one DP and one USB4 port.⚠ If the Type-C port of the host does not support DP2.1 & DSC / USB4 / Thunderbolt 4 / 5, performance will be limited.04 40Gbps USB4 + 20Gbps USB-C With two USB4 ports offering 40Gbps transfer speeds — 8× faster than USB 3.0 — this dock accelerates large file transfers, video captures and external drive performance. An additional USB-C port supports 20Gbps USB 3.2 Gen 2×2 and remains backward compatible with older USB standards.05 100W Pass-Through Charging Includes a 130W power adapter to deliver up to 100W pass-through charging to your laptop. Recharge a DP2.1 DELL 7440 laptop from 0% to 50% in about 30 minutes, ensuring uninterrupted productivity and eliminating battery anxiety during long work or play sessions.06 Universal Compatibility — Plug & Play No driver needed, freeing you from installation hassles. Connects to versatile host devices like Lenovo ThinkPad, iMac and MacBook. Compatible systems: Windows, macOS and Linux — use it as a powerful workstation wherever you are.Display ResolutionMulti-Monitor CapabilityActual results depend on your host port standard and DSC support. Refer to the table that matches your system.WindowsConfigurationDP2.1 & DSC / USB4 / TB4/5DP1.4 & DSC / USB4 / TB4/5DP1.4 & DSC / USB-CSingle Display
AA / AB8K@60Hz4K@144Hz4K@144HzDual Display
AAA / ABB / ABC2 × 4K@160Hz4K@120Hz + 4K@60Hz2 × 4K@60Hz
Dual DP onlyTriple Display
AAAA / ABCD / ABBB / ABBC3 × 4K@120Hz
DP+DP+USB42 × 4K@60Hz + & DSC / USB4 / TB4/5DP1.4 & DSC / USB4 / TB4/5DP1.4 & DSC / USB-CSingle Display
AA / AB8K@60Hz4K@120Hz4K@120HzDual DP (Mirror)
AAA / ABB2 × 4K@120Hz2 × 4K@120Hz2 × 4K@120HzDual USB4 / DP+USB4 (Extend)
ABC2 × 4K@120Hz4K@120Hz + 4K@60Hz—Triple Display (Mirror + Extend)
AAAA / ABBB / ABBC3 × 4K@120Hz
DP+DP+USB44K@120Hz + 2 × 4K@60Hz
DP+DP+USB4—macOS supports up to 2 different external monitors when connected to this dock. Triple-display mirroring follows the configurations above.SpecificationTechnical DetailsInterface CompatibilityUSB4, Thunderbolt 3, USB 3.2 Gen 2×2, DP 2.1 Alt Mode2 × DisplayPortDP 2.1 support, max. 7680 × 4320 @60Hz2 × USB440Gbps data transmission + DP 2.1, max. 7680 × 4320 @60HzTriple DisplayMax. resolution 3 × 4K@120Hz1 × USB-C (20Gbps)USB 3.2 Gen 2×2, 20Gbps data transmissionM.2 SSD Interface20Gbps data transmission; M-key, up to 8TB; 2230 / 2242 / 2260 / 2280Upstream Port1 × USB-C, provides 100W charging for the hostSize16.6 × 7.7 × 3.6 cm / 6.5 × 3.0 × 0.4 inWeight259 g / 9.2 ozPower AdapterDC 20V (130W) — up to 100W pass-through to hostSystem RequirementsCompatible With💻 Windows✓ Microsoft Windows 7 / 8 / 10 / 11✓ Plug and play — no driver required🍎 macOS & Linux✓ Apple macOS 10.15 or later✓ Extends up to 2 different displays on macOS🔌 Host DevicesVersatile host support including Lenovo ThinkPad, iMac, MacBook and other USB4 / Thunderbolt / USB-C (DP Alt Mode) laptops and desktops.In the BoxWhat You’ll Receive✓1 × USB4 MST 8K Universal Docking Station ✓1 × DC 20V Power Adapter ✓1 × USB4 80Gbps USB-C to USB-C Cable (100 cm) ✓1 × Screwdriver ✓1 × Quick Start Guide WAVLINKUSB4 8K DOCKING STATION · 5-IN-1 · M.2 NVMe SSD ENCLOSURE · 100W PD
