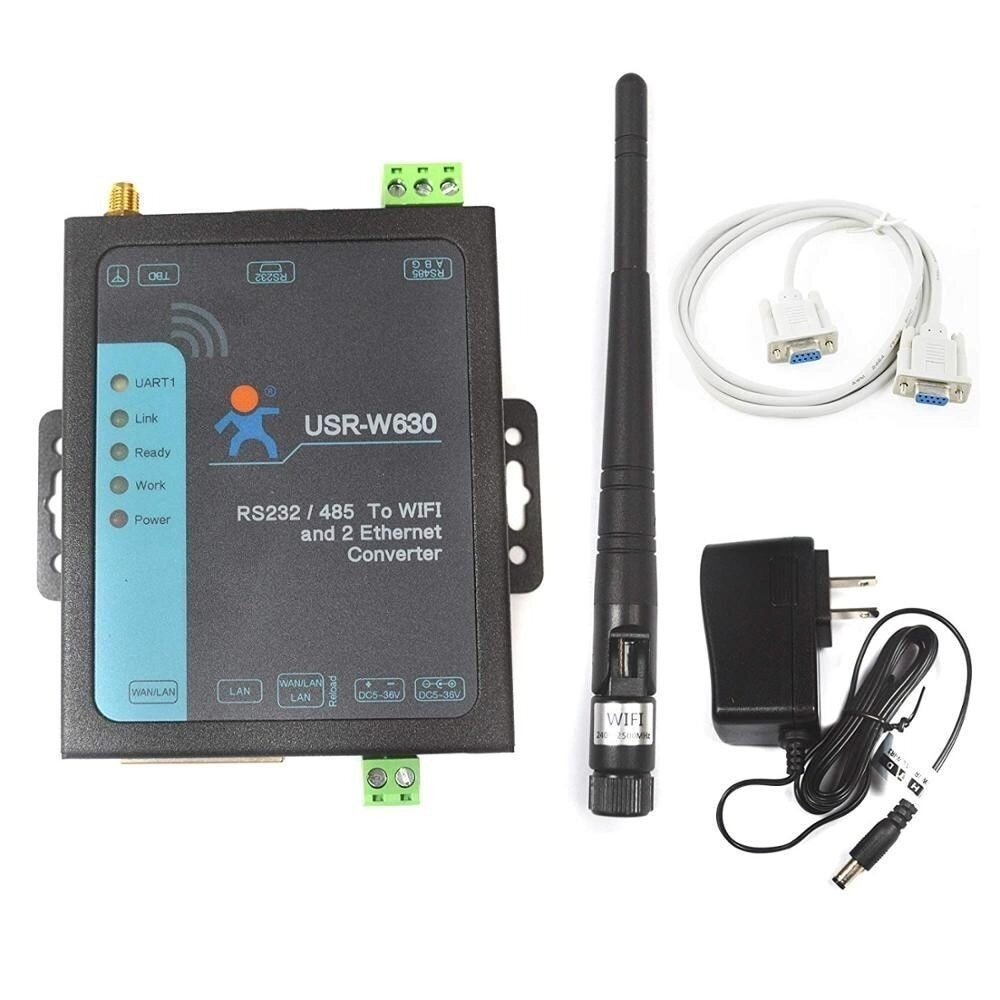

USR-W630 Industrial Serial to WIFI and Ethernet Converter Supports 2 Ethernet Ports, Modbus RTU
Note, there are different kinds of Power Adapter optional, UK/EU/US/AU Plug, please choose the product you like.
1 Port WiFi to serial converter USR-W630, which can realize offerirectional transparent transmission between RS232/RS485 and WIFI, WiFi and Ethernet, Serial and Ethernet.● 1-port RS-232 or RS485 to 802.11 b/g/n WLAN serial device server
● Links serial and Ethernet devices to an IEEE 802.11b/g/n network
● Supports TCP server/client, UDP server/client,https client, Virtual COM
● Supports Modbus RTU to Modbus TCP
● Supports multiple networking mode with 2 RJ45 ethernet port
● Serial to WiFi / WiFi to Ethernet converters Product Description
In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.
2. Heartbeat Packet Function
USR-W630 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W630 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.
3. Socket Distribution Protocol
USR-W630 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different
socket will be added different header before they are sent to serial.
4. Regular Restart Function
USR-W610 supports timing and timeout restart function, which makes the system run more stable.
