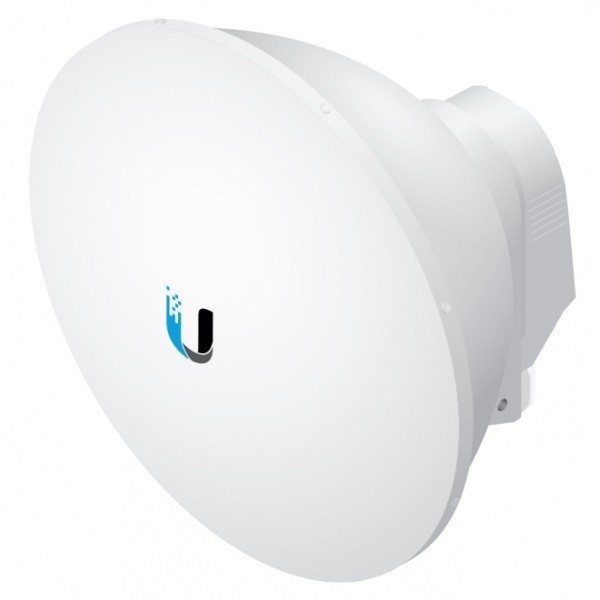

Ubiquiti AF-5G23-S45 AF-5G23-S45, 23 dBi, 5 GHz, AF-5X, White, 378 mm, mm ~E~. Shipped with USPS Ground Advantage.

Features:

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately).

The airFiber X antenna uses the 5 GHz frequency band and is available as the following models:

• AF-5G23-S45 (gain: 23 dBi)

• AF-5G30-S45 (gain: 30 dBi)

• AF-5G34-S45 (gain: 34 dBi)

Each model is compatible with the airFiber AF-5X, a 5 GHz Carrier Backhaul Radio.

Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.

Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Housed in a compact form factor (378-mm diameter size), the AF-5G23-S45 offers 23 dBi of gain and features the following advantages:

• Low sidelobes reduce interference from other transmitters in the area.

• High isolation enhances performance for co-location in tower-mounted installations.

• The low-profile design with integrated radome reduces wind-loading.

Innovative Mechanical Design

• Secure Pole-Mounting Maintains the position of the dish during harsh outdoor conditions.

• Low-Profile Form Factor of the AF-5G23-S45 Reduces wind-loading.

Weatherproof Design

• Protective Shroud Protects the cables and connectors from the elements.

• Integrated Radome of the AF-5G23-S45 Shields the radio from the environment.

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

Model: AF-5G23-S45

Dimensions: 378 x 378 x 290 mm (14.88 x 14.88 x 11.42")

Weight: 3.4 kg (7.5 lb) (Mount Included)

Frequency: 5.1 - 5.9 GHz

Gain: 23 dBi

Max. VSWR: 1.5:1

Wind Survivability: 200 km/h (125 mph)

Wind Loading: 190 N @ 200 km/h (43 lbf @ 125 mph)

Polarization: Dual Linear

F/B Ratio: 33 dB

ETSI Specification: EN 302 326 DN2

Mounting: Universal Pole Mount for Ø 38 - 64 mm (Ø 1.5 - 2.5") Poles
