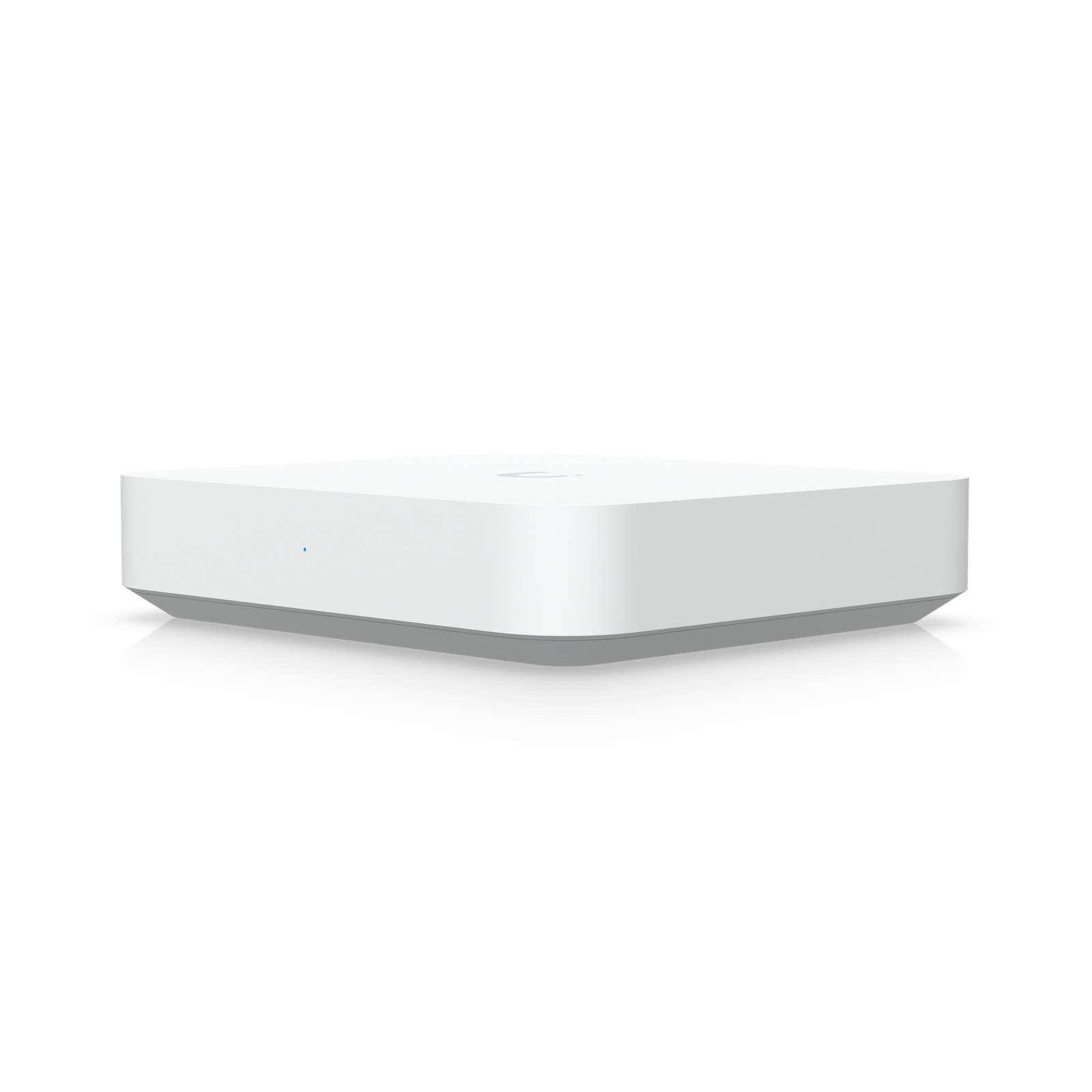

Gateway Max Model: UXG-MAX Product Description

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

Key Features

• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
• Up to 2.3 Gbps routing with IDS/IPS
• (1) 2.5 GbE WAN port
• (4) 2.5 GbE LAN ports, including (1) remappable to WAN
• USB-C powered (adapter included)
• Managed with UniFi Network 8.1.113 and later

Technical Specifications IDS/IPS2.3 GbpsIDS/IPS Throughput2.3 GbpsProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHzSystem Memory2 GB2.5 GbE RJ455(2.5G/1G/100M/10M)Power SupplyUSB type C (5V DC/3A)(Adapter included)Power MethodUSB type C (5V DC/3A)Max. Power Consumption9.6WMAC Address Table Size2,000Form FactorCompact desktopDimensions141.8 x 127.6 x 30 mm(5.6 x 5 x 1.2")Weight520 g (1.1 lb)NDAA CompliantYesCertificationsCE, FCC, IC, Anatel: 04873-25-08356Ambient Operating Temperature-10 to 40° C (14 to 104° F)Ambient Operating Humidity5 to 95% noncondensingButton(1) Factory resetDefault WAN Ports(1) 2.5 GbE RJ45ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVEnclosure MaterialPolycarbonateHeat Dissipation33 BTU/hrIDS/IPS Signatures55,000+ With WAN Port Count4Supported Voltage Range100–240V ACUniFi NetworkVersion 8.1.113 and later 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
