Ubiquiti Networks UniFi U7 Pro XG 10/5/2.5/1 GbE NEW For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

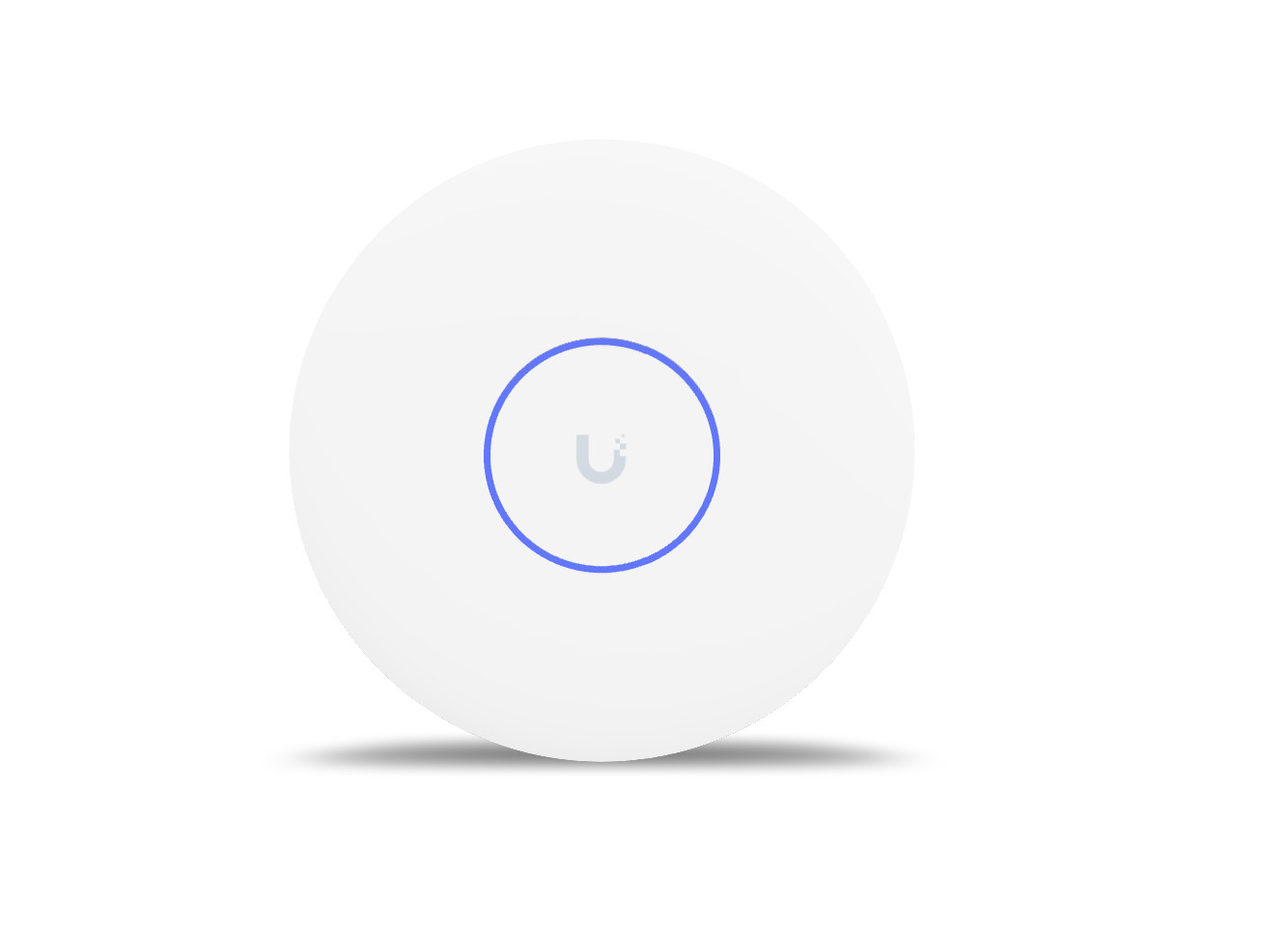

Ubiquiti Networks UniFi U7 Pro XG 10/5/2.5/1 GbE NEW
Price: US $199.00
OverviewDimensions⌀206 x 32.5 mm (⌀8.1 x 1.3")WiFi StandardWiFi 7Spatial Streams6Coverage Area140 m² (1,500 ft²)Max. Client Count300+Uplink10 GbEMountingCeiling, Wall(Lite Mount Included)Power MethodPoE+PerformanceMIMO6 GHz2 x 2 (DL/UL MU-MIMO)5 GHz2 x 2 (DL/UL MU-MIMO)2.4 GHz2 x 2 (DL/UL MU-MIMO)Max. Data Rate6 GHz5.8 Gbps (BW320)5 GHz4.3 Gbps (BW240)2.4 GHz688 Mbps (BW40)Antenna Gain6 GHz6 dBi5 GHz5 dBi2.4 GHz4 dBiMax. TX Power6 GHz24 dBm5 GHz26 dBm2.4 GHz23 dBmMax. BSSIDs8 per RadioSupported Data Rates802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)FeaturesWireless Meshing✓Band Steering✓802.11v BSS Transition Management✓802.11r Fast Roaming✓802.11k Radio Resource Management (RRM)✓Advanced Radio Management✓Passpoint (Hotspot 2.0)✓Captive Hotspot PortalCustom Branding Landing Page✓Voucher Authentication✓Payment-Based Authentication✓External Portal Server Support✓Password Authentication✓Guest Network Isolation✓Private Pre-Shared Key (PPSK)✓WiFi Speed Limiting✓Client Device Isolation✓WiFi Schedules✓RADIUS over TLS (RadSec)✓Dynamic RADIUS-assigned VLAN✓HardwareMax. Power Consumption22WSupported Voltage Range42.5–57V DCNetworking Interface(1) 10 GbE RJ45 portWeight750 g (1.7 lb)ManagementEthernetEnclosure MaterialUV-stabilized polycarbonate, aluminum alloyMount MaterialStainless steel (SUS304), galvanized steel (SGCC)LEDsSystemWhite/BlueChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzU-NII-5 to U-NII-8: 5925 - 7125 MHzWorldwide:2400 - 2483.5 MHz5150 - 5850 MHz5925 - 7125 MHzAmbient Operating Temperature-30 to 40° C (-22 to 104° F)Ambient Operating Humidity5 to 95% noncondensingNDAA Compliant✓CertificationsCE, FCC, IC, Anatel: 06630-25-08356
