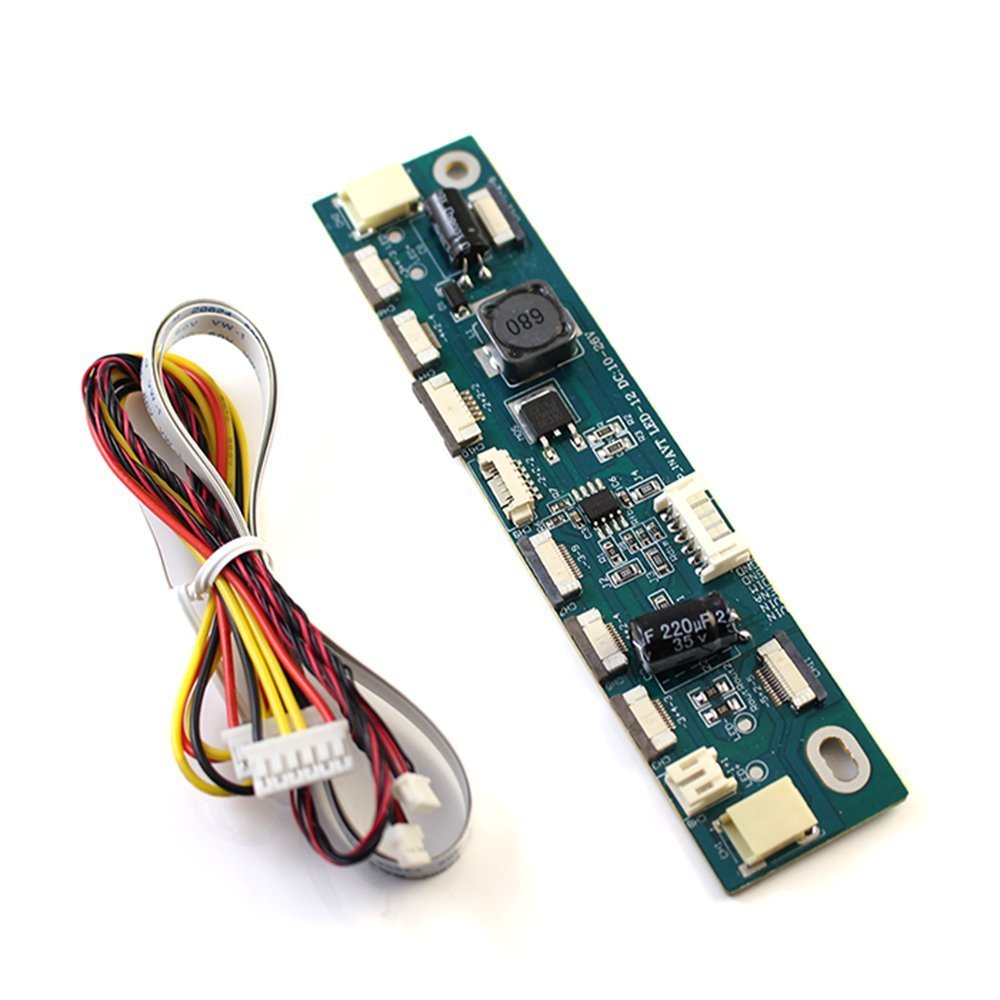

Universal LED Backlight Converter Inverter Board 2P 6P 10P 12P Interface 12V

This LED inverter board supports almost all LED strips in the original monitor backlight.
So it can be used as a universal LED driver board or a LED strip tester.
Find the right definition of LED strips, and then connect it!
Size:12x3cm
Support :15'' to 24'' LED monitor
Input voltage: 10 to 26V

Support definition:LED backlight LCD panel12-pinsinterface:5- 2+ 5- / CCCCNAANCCCC / NCCCNAANCCCN Compatible LCD models such as M236H3-LA2 V236H1-LE2 M236H3-LA3 V236H1-LE4 M215H3-LA1 M185B3-LC1 M185B3-LA1 M220Z3-LA1 M220Z3-LA3 M156BGE-L01 M215H3-LA5 V185B1-LE1 V185B1-LE2 V215H1-LE1 V2 V216B1-LE1...LED backlight LCD panel10-pinsinterface:3- 4+ 3- / CCCAAAACCC / NCCAAAACCC Compatible LCD models such LQ185K1LGN3 ... LED backlight LCD panel10-pinsinterface:4- 2+ 4- / CCCCAACCCC orNNCNAACCNNCompatible LCD models such backlight LCD panel12-pinsinterface:3+ 9- / AAACCCCCCCCC LED Backlight LCD Panel 6-pins 1.0mm Pin Pitch FFCinterface:2- 2+ 2- / CCAACCCompatible LCD models such LM215WF3-SLC1 LM215WF3-SLC5...LED backlight LCD panel6-pins 1.25mm Pin Pitchinterface:2- 2+ 2- / CCAACCCompatible LCD models such backlight LCD panel2-pinsinterface:1+ 1- / ACCompatible LCD models such backlight LCD panel 2-Pins 3.5mm Pin Pitch interface.
