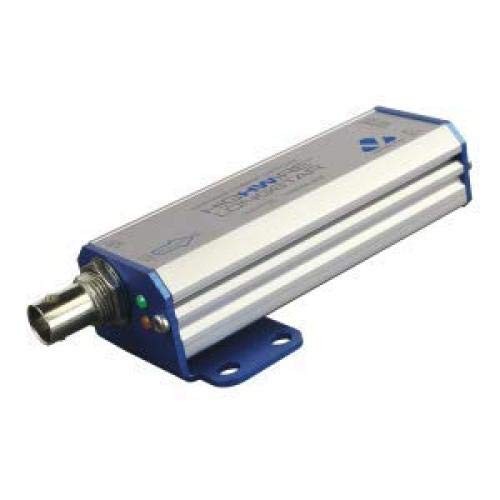

Veracity HIGHWIRE Longstar - Camera Side - Long Range Ethernet over Coax (vls-1p-cc) Veracity HIGHWIRE Longstar - Camera Side - Long Range Ethernet over Coax (vls-1p-cc)
International Customers: All electronic products are packaged for sale in the US with US voltage.
NDAA Compliant: Yes
Certifications & Standards: FCC CE BS EN 50121-4
TAA Compliant: Yes
Additional Information: Unit Power: 1.0 Watt Camera Power: 25 Watt Connectors: RJ45 Ethernet with PoE, BNC coax with PoE, DC in Weight: 112g
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Product Description
This item is brand-new, factory sealed.
Unrestricted 100Base-T and POE over 1400m
HIGHWIRE Longstar delivers unsurpassed power and bandwidth over extreme distances of coax cable.
Deliver unsurpassed power and bandwidth over extreme distances of coaxial cable. Cut costs and installation time by re-using long runs of legacy coax cabling, especially in rail and metro applications.
Long-range Ethernet with POE over coax at distances up to 1,400 metres
HIGHWIRE Longstar's ruggedness and high performance is particularly suited to rail, metro and industrial applications. HIGHWIRE Longstar delivers unsurpassed distances.
HIGHWIRE Longstar delivers a full bandwidth 100Base-T network signal and POE Plus over unsurpassed lengths of regular coaxial cable. It provides the reassurance of exceptional performance and reliability, while enabling considerable savings in the cost, time and risk of upgrading legacy analogue camera installations to IP.
A range of 540 - 690 metres with RG-59 or even up to 1400 metres with RG-11 is supported, without compromising the 100Base-T data rate. For even greater distances it can automatically configure to 10Base-T operation, running approximately three times further with data only. Models with optional POE in or out can deliver the full 25 watts of 802.3at POE Plus to cameras over the same legacy cable.
Designed for straight-forward installation, all the HIGHWIRE Longstar models are entirely self-configuring, and feature extended temperature operation, have a rugged enclosure with both wall-mount or high density rack mounting options.
Designed for Installers
Used in pairs, installation of HIGHWIRE Longstar is extremely fast and efficient. The devices self-configure and self optimise on connection. No set-up or system pairings are required. Data and power connections are easily monitored during installation using the embedded LEDs. The system incorporates Veracity's SafeView™ technology, which provides instant confirmation of link status, power level and diagnostic information.
Flexible High Performance
Although designed for 75 Ohm cable, HIGHWIRE Longstar will operate over 50 Ohm cable with full performance and only a slight reduction in the maximum distance attainable.
POE - Simple Reliability
POE-equipped models allow all of the power for the link to be sourced from a POE switch, POE injector or power supply, for simple installation and optional UPS backed power delivery for high resilience against grid power failures.
HIGHWIRE Longstar is a rugged and low-cost alternative to fibre, also with power delivery It is also suited to new coax installations, due to the low levels of signal distortion through long runs of RG6 or RG11 cabling
Simple Rackmount Option Up to 24 HIGHWIRE Longstar Base units can be rack-mounted using the simple 1U space-saving bracket. Although HIGHWIRE Longstar POE models can be powered from POE switches or injectors, several Veracity 57V DC power supply options are available (see partcodes) to provide the maximum power and range performance.
Veracity Power Supply Options Rack-mounted HIGHWIRE Longstar units can be powered by the Veracity 57V DC 1U rackmount power supply. This 8.8A power supply can provide enough power for up to 24 HIGHWIRE Longstar units with POE output. The power unit can be fitted behind the rack-mounted HIGHWIRE Longstars in the same 1U space, thus saving rack space.
SpecificationPhysical (RJ-45)YesNumber of Network (RJ-45) Ports1General InformationBrand NameVeracityMarketing Information Unrestricted 100Base-T and POE over 1400m HIGHWIRE Longstar delivers unsurpassed power and bandwidth over extreme distances of coax cable. Deliver unsurpassed power and bandwidth over extreme distances of coaxial cable. Cut costs and installation time by re-using long runs of legacy coax cabling, especially in rail and metro applications. Long-range Ethernet with POE over coax at distances up to 1,400 metres HIGHWIRE Longstar's ruggedness and high performance is particularly suited to rail, metro and industrial applications. HIGHWIRE Longstar delivers unsurpassed distances. HIGHWIRE Longstar delivers a full bandwidth 100Base-T network signal and POE Plus over unsurpassed lengths of regular coaxial cable. It provides the reassurance of exceptional performance and reliability, while enabling considerable savings in the cost, time and risk of upgrading legacy analogue camera installations to IP. A range of 540 - 690 metres with RG-59 or even up to 1400 metres with RG-11 is supported, without compromising the 100Base-T data rate. For even greater distances it can automatically configure to 10Base-T operation, running approximately three times further with data only. Models with optional POE in or out can deliver the full 25 watts of 802.3at POE Plus to cameras over the same legacy cable. Designed for straight-forward installation, all the HIGHWIRE Longstar models are entirely self-configuring, and feature extended temperature operation, have a rugged enclosure with both wall-mount or high density rack mounting options. Designed for Installers Used in pairs, installation of HIGHWIRE Longstar is extremely fast and efficient. The devices self-configure and self optimise on connection. No set-up or system pairings are required. Data and power connections are easily monitored during installation using the embedded LEDs. The system incorporates Veracity's SafeView™ technology, which provides instant confirmation of link status, power level and diagnostic information. Flexible High Performance Although designed for 75 Ohm cable, HIGHWIRE Longstar will operate over 50 Ohm cable with full performance and only a slight reduction in the maximum distance attainable. POE - Simple Reliability POE-equipped models allow all of the power for the link to be sourced from a POE switch, POE injector or power supply, for simple installation and optional UPS backed power delivery for high resilience against grid power failures. HIGHWIRE Longstar is a rugged and low-cost alternative to fibre, also with power delivery It is also suited to new coax installations, due to the low levels of signal distortion through long runs of RG6 or RG11 cabling Simple Rackmount Option Up to 24 HIGHWIRE Longstar Base units can be rack-mounted using the simple 1U space-saving bracket. Although HIGHWIRE Longstar POE models can be powered from POE switches or injectors, several Veracity 57V DC power supply options are available (see partcodes) to provide the maximum power and range performance. Veracity Power Supply Options Rack-mounted HIGHWIRE Longstar units can be powered by the Veracity 57V DC 1U rackmount power supply. This 8.8A power supply can provide enough power for up to 24 HIGHWIRE Longstar units with POE output. The power unit can be fitted behind the rack-mounted HIGHWIRE Longstars in the same 1U space, thus saving rack space. Product TypeNetwork ExtenderProduct NameHIGHWIRE Longstar - Camera Side - Long Range Ethernet over CoaxManufacturerVeracity USA, IncManufacturer Part NumberVLS-1P-CCProduct LineHIGHWIRE LongstarTitleProduct TitleVeracity HIGHWIRE Longstar - Camera Side - Long Range Ethernet over Coax (VLS1PCC)Technical InformationMaximum Data Transfer Rate12.50 MB/sMaximum Extended Range4593.18 ft Shipping
