This sale is for 4.3inch Capacitive Touch LCD Overview

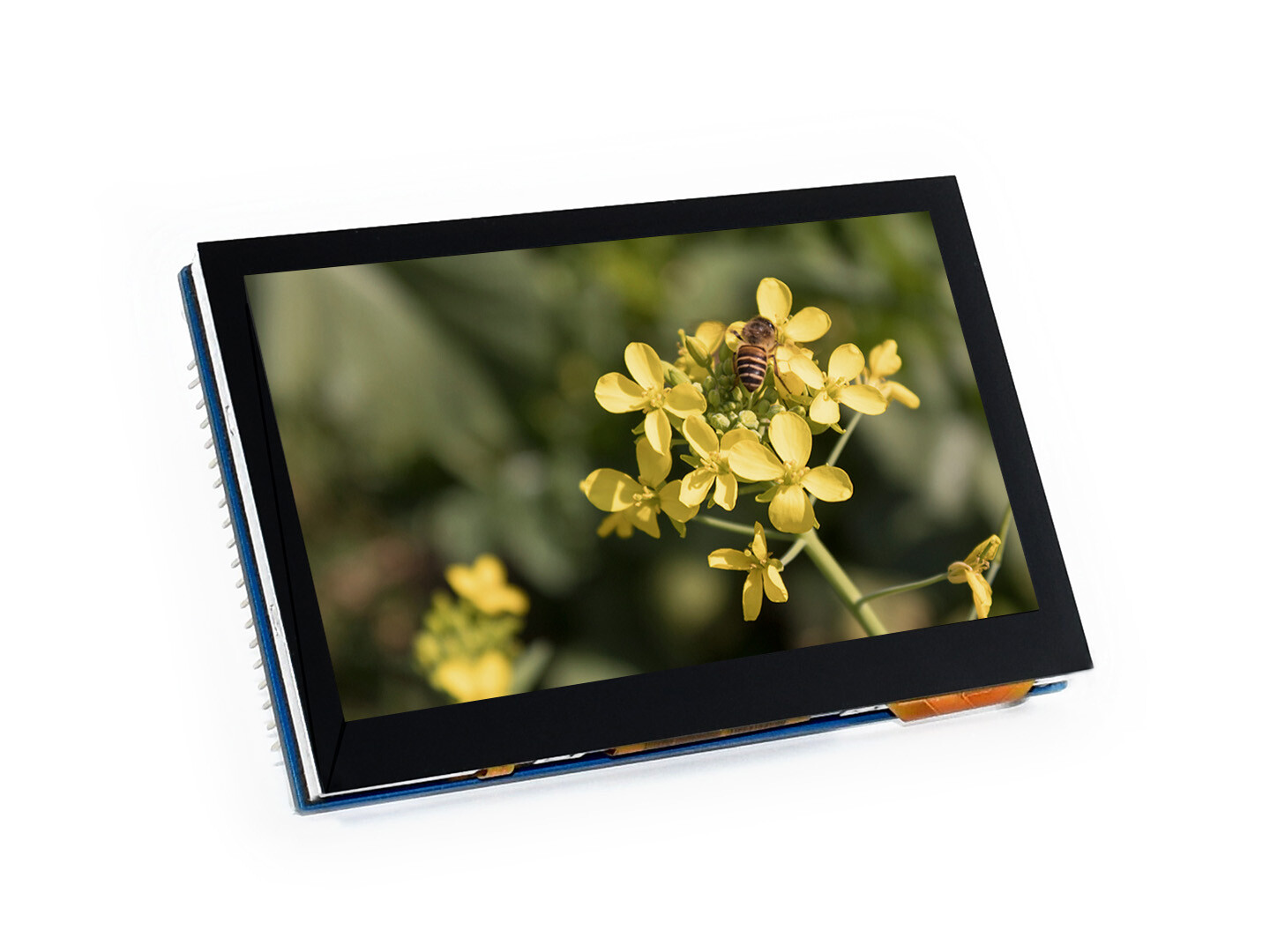

This is a multicolor graphic LCD display, 4.3inch diagonal, 800x480 pixels.
It is able to display 16,777,216 colors via the 24-bit RGB interface, supports up to 5-points capacitive touch control via I2C interface.
Features
- 4.3inch capacitive touch display, 800x480 resolution
- Capacitive touch panel on the I2C bus, 5-points touch control, with touch interrupt
- 24-bit RGB display interface, 16,777,216 colors, fast refreshing
- Comes with development resources and manual (examples for STM32F4 / STM32F7)
Key Parameters LCD Type IPS LCD Interface 24-bit RGB Touch Screen Interface I2C Display Colors 16,777,216 Touch Controller GT911 Display Size (mm) 95.04 (W) × 53.86 (H) Dot Pitch (mm) 0.1188 (W) × 0.1122 (H) Backlight LED Resolution 800 × 480 (Pixel) Power Supply Voltage 5V Logic Level 3.3V Interface Definition SYMBOL DESCRIPTION TYPE FUNCTION 5V Power supply Power 5V GND Ground GND 3.3V Power supply 3.3V R0~R7 Data line Input Red data G0~G7 Data line Input Green data B0~B7 Data line Input Blue data CLK LCD clock Input LCD clock signal DISP Backlight control enable Input Enable/Disable backlight control HSYNC Horizontal synchronization Input Horizontal synchronous signal input VSYNC Vertical synchronization Input Vertical synchronous signal input DE Control mode selection Input DE=0:SYNC mode
DE=1:DE mode PWM Backlight brightness adjustment Input PWM signal for adjusting backlight GND Ground Power GND SDA I2C data Output/Input I2C data pin, read/write data SCL I2C clock Input I2C clock pin RST Reset Input Reset the TP controller IRQ Interrupt Output External touch interrupt External Dimension Development Resources
Wiki : Compatibility
The onboard pinheader is compatible with the following product(s) (not limited to):
- 4.3inch 480x272 Touch LCD (A)
- 4.3inch 480x272 Touch LCD (B)
The onboard pinheader is compatible with and can be directly plugged into the following product(s):
The RGB interface is compatible with the following product(s):
- 7inch Capacitive Touch LCD (D)
- 7inch Capacitive Touch LCD (E)
- 7inch Capacitive Touch LCD (F)
- 7inch Capacitive Touch LCD (G)
- 10.1inch Capacitive Touch LCD (D)
Selection Guide PartNumber Touch Panel Type Resolution LCD Data Interface Touch Controller For Use With 4.3inch Capacitive Touch LCD Capacitive 800x480 24PIN RGB GT911 MCU with LCD controller 7inch Capacitive Touch LCD Capacitive 800x480 24PIN RGB FT5206GE1 MCU with LCD controller 7inch Capacitive Touch LCD (C) Capacitive 800x480 16PIN GT911 MCU without LCD controller 7inch Capacitive Touch LCD (D) Capacitive 1024x600 24PIN RGB/LVDS FT5206GE1 MCU with LCD controller 7inch Capacitive Touch LCD (F) Capacitive 1024x600 24PIN RGB GT811 MCU with LCD controller 7inch Capacitive Touch LCD (G) Capacitive 800x480 24PIN RGB GT911 MCU with LCD controller 10.1inch Capacitive Touch LCD (D) Capacitive 1024x600 24PIN RGB/LVDS FT5406 MCU with LCD controller Package Contains
Weight: 0.105 kg
- 4.3inch Capacitive Touch LCD (G) x1
- 40-pin FFC x1
- 4-pin FFC x1
