DESCRIPTION4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin And Light Design, Touch Function Optional4.3″ DSI Dispaly/Touch Display

Integrated Structure | Thin And Light Screen Design

• Size4.3″
• Resolution800×480
• Display InterfaceDSI
• Display PanelIPS/QLED
• Viewing Angle160°
• Touch TypeCapacitive (optional)
• Touch Points5-Point (optional)
• Touch InterfaceI2C (optional)
• Touch PanelToughened Glass
  (optional)
• ConsumptionLow Power
• Certification 1RoHS2.0
• Certification 2CE

Version OptionsDevice & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extraadapter cable
Integrated Structure Design

DSI One-Cable Communication For Embedding Engineering Applications Quickly
Provide Secondary Development Resources To Help Simple Development

Working With Raspberry Pi 4B Via DSI Interface

Working With Raspberry Pi 3B+ Via DSI Interface

for reference only, the Raspberry Pi boards are not included.
Thinner And More Space Saving

Integrate the driver circuit into an FPC, only needs 5mm thickness space

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 90%, NTSC 78%

* This function is only available on the QLED version

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

* This function is only available on the QLED version

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

* This function is only available on the QLED version

5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch

* This function is only available on the Touch Display version, the actual touch points depends on the operating system

Adjustable Brightness Via Software
Product Show



DimensionsResources & ServicesDSI Thin & Light Display SelectionPART NUMBERRESOLUTIONDISPLAY INTERFACEDISPLAY PANELTOUCH INTERFACETOUCH PANELDISPLAY SIZE(MM)PRODUCT style="box-sizing: border-box;">Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

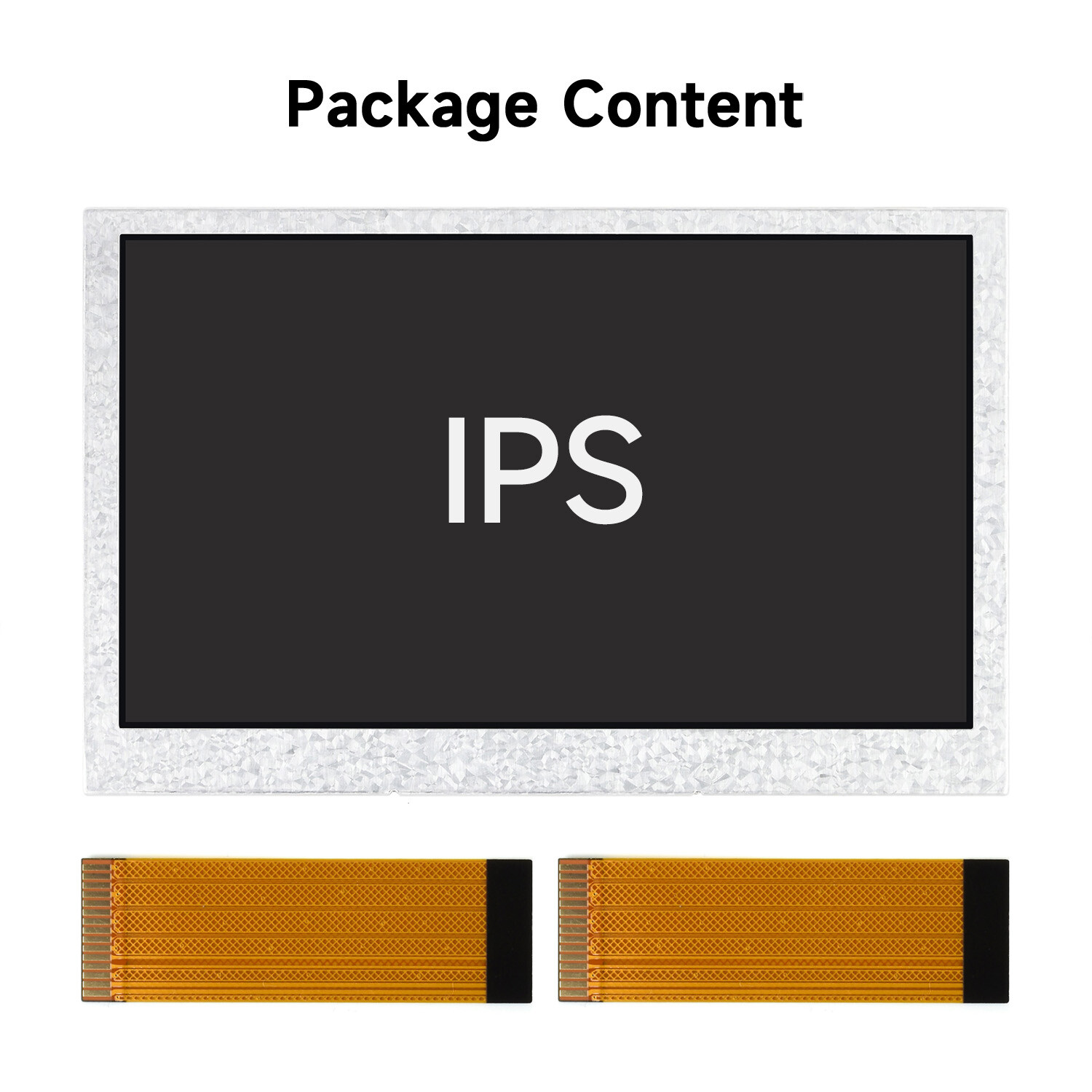

PACKAGE CONTENT

Weight:0.083 kg

43H-800480-IPS/QLED Display

1. OPTIONSIPS/QLED Display x1
2. FPC 15 PIN cable (~ 50mm) x2

1243H-800480-IPS/QLED Touch Display

1. OPTIONSIPS/QLED Touch Display x1
2. FPC 15 PIN cable (~ 50mm) x2

1243H-800480-IPS-CT-B

1. 43H-800480-IPS-CT-B x1
2. FPC 15 PIN cable (~ 50mm) x2
