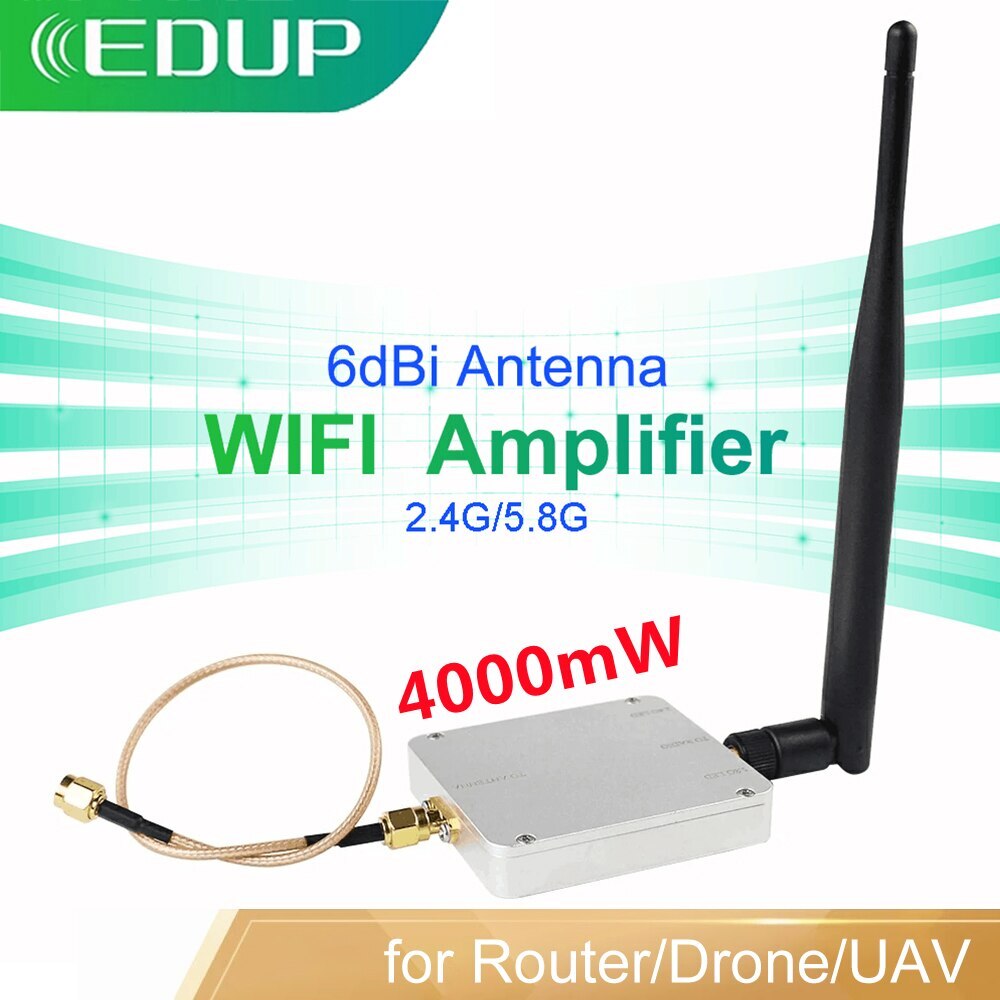

EDUP WiFi Booster Signal Amplifier 2.4GHz&5GHz IEEE 802.11a/ b/g/n/ac WLAN
- 2.4G &5.8G dual band, Auto switch frequency;
Max. 4000mW real output power.
- 6-16V wide voltage range,support different power supply.
- Aluminum-alloy case by CNC, anti-interference;
Designed for Drones, UAV, RC equipment....
- Working with certified IEEE 802.11a/b/g/n/ac Wireless LAN devices.
- Simply plug and play, no software is required.
Operating Range:2.4~2.5 GHz, 5.0~5.875 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,
carrier from transmitter and automatically switch receiving
to transmitting mode.
Connector Type:SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside)
Input Power:5~23 dBm
Transmit Gain:15~18dB
Output Power:4000mW (36dBm)
Receiver Gain:15~17 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 6V~16V
Operating Temperature:-30°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight: 100g
Booster Size:225*165*50MM
2. Heat dissipation is recommended, such as adding heat sink or radiator fan.
3. Antenna should be screwed first, then plug the power adapter, finally connect the device.
4. The output could reach 36dBm, when input power is 18dBm or 19dBm (default gain is 18dB).
