PREMIUM HARD TO FIND PC ITEMS:

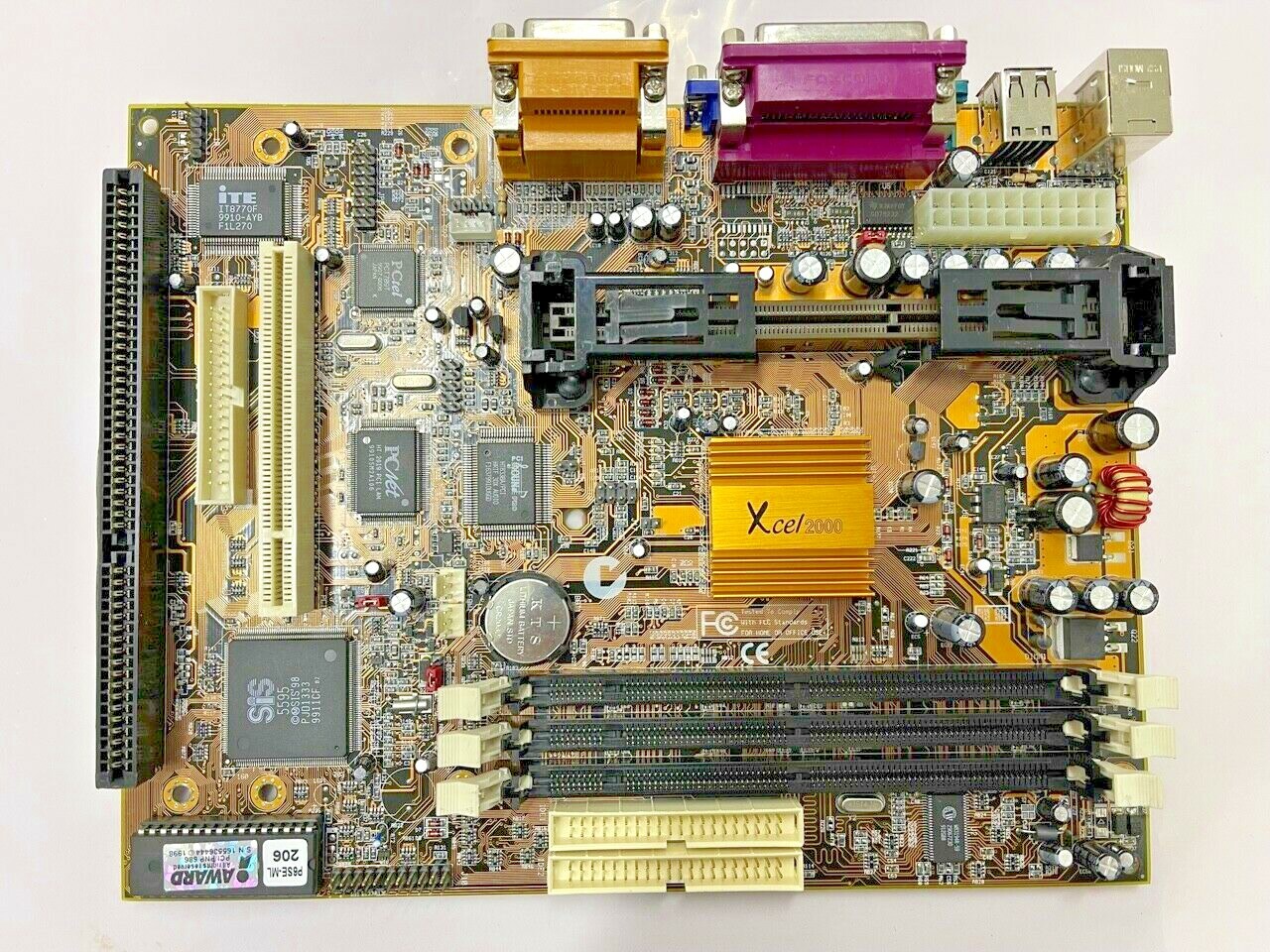

RARE VINTAGE ECS P6SE-ML XCEL2000 SIS 620/5595 SLOT 1 ATX MOTHERBOARD WITH VGA SOUND MBMX9. MANUAL,Drivers and Cables NOT included. Fully Tested. OEM Surplus.
** USA Seller ** THE ONLY LISTING ON ! LAST ONE!
FLAT USPS PRIORITY Shipping
US-MBMX8-0000-2
NOTE: Spec is for P6SET-ML which has a socket 370 and a slot 1 cpu socket. The chipset is the same for both.
P6SET-ML- ECS
PROCESSORS
SECC2 Pentium III up to 850MHz(100MHz FSB), Pentium II
Celeron PPGA up to 533MHz
CHIPSET
SiS 620/5595
CMI8738 PCI 3D Audio Chip on board
MEMORY
Three 168-pin DIMMs
Maximum: 768MB
SYSTEM BIOS
Award BIOS
I/O INTERFACE
Supports Plug and Play function
One - EPP/ECP mode parallel port
One - 16550 high-speed serial I/O
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66)
PS/2 keyboard and PS/2 mouse connectors
ATX Power Supply Connector
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
Two sets of USB connectors
1 VGA connector
LAN and Modem connector
Other ports
IrDA SIR Header
Green, HDD, Power indicator LED Connectors
CPU Fan and Chassis Fan Headers
LAN Card Wake Up/Internal Modem Ring Wake-Up Headers
RTC & BATTERY
SiS 5595 included 256 bytes CMOS SRAM With CMOS SRAM hardware clear jumper
FORM FACTOR
