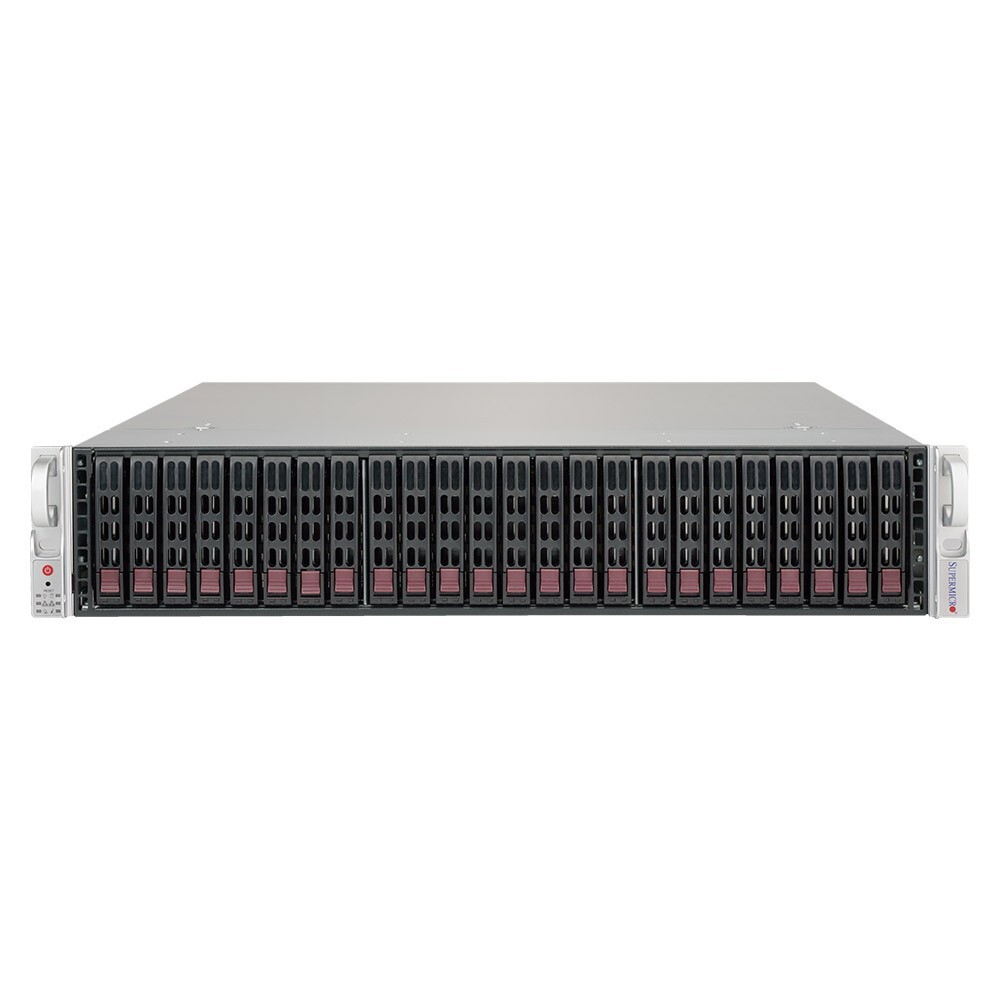

Supermicro SuperChassis CSE-216BE16-R1K28LPB Chassis NEW IN STOCK 5 Yr Warranty
SpecificationsProduct SKUsCSE-216BE16-R1K28LPB

• SuperChassis 216BE16-R1K28LPB

Form Factor

2U chassis support max. motherboard size - ATX 12\" x 10\", E-ATX 12\" x 13\", EE-ATX 13\" x 13.68\". Support up to ATX 12\"x13\" MB with rear 2.5\" HDD option installed

Processor Support

Dual, single Intel® / AMD processors

DimensionsHeight

• 3.5\" (89 mm)

Width

• 17.2\" (437 mm)

Depth

• 24.8\" (630 mm)

Gross Weight

• 53 lbs (24.04 kg)

Packaging (W x H x L)

• 30\" (762 mm) x 11.5\" (292 mm) x 38.7\" (983 mm)

Available Color

• Black

Expansion Slots

• 7 low-profile expansion slot(s)

Drive Bays

• 24 x 2.5\" hot-swap drive bay

Front PanelButtons

• Power On/Off button
• System Reset Button

LEDs

• 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED
• Unit Identification (UID) LED

Systems CoolingFans

• 3 x 8cm high-performance PWM fan(s)
• Optional 5 x 6cm fan cooling module for 826B/216B

System Monitoring

• Chassis intrusion switch

Operating Environment (System)Operating Temperature Range

• 5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

Power Supply1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbusPower Efficiency

• 95%

Total Output Power and Input

• 1000W with Input 100 - 140Vac
• 1280W with Input 180 - 240Vac

AC Input Frequency

• 336 x 76 x 40 mm

Output Type

• Backplanes (gold finger)

-12V

• Max: NAA

+12V

• Max: 83A / Min: 0.5A (100Vac - 140Vac)
• Max: 106.7A / Min: 0.5A (180Vac - 240Vac)

+5Vsb

• Max: 4A / Min: 0A

+12Vsb

• Max: NAA

Power Distributor

• PDB-PT216-2824
• O/P: 12V/100
• +5V Max: 30
• +3.3V Max: 24
• -12V Max: 0.6

Certification

• Platinum Certified


Regulatory (Power Supply)Power Supply Safety / EMC

• BSMI
• CCC
• CE/EMC
• FCC class B
• TUV/CB
