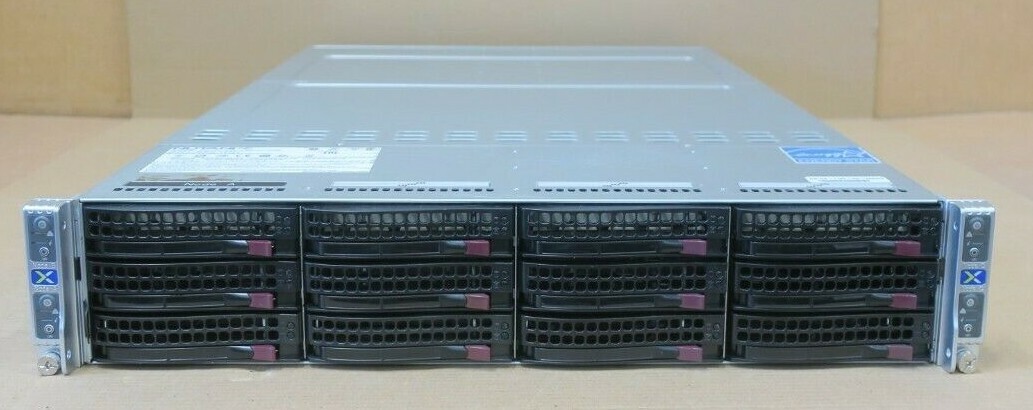

Supermicro SuperServer 6026TT-HIBQRF 12-Bay 4x X8DTT-HIBQF+ Nodes CTO 2U Server
Supermicro Chassis Model:6026TT-HIBQRFSupermicro Node Motherboard P/N:X8DTT-HIBQF+
In Good Condition, Full Working OrderTested2 Years Warranty
CTO - Configure To OrderNo CPU, No Memory included both of which are required in order to use, please send a message for a quote for them if required
Includes:
- 1 xSupermicro SuperServer 6026TT-HIBQRF 12-Bay 4x X8DTT-HIBQF+ Nodes CTO 2U Rack x 12-Bay 3.5" SAS/SATA Hard Drive Bays - Backplane BPN-SAS827B rev 1.01
- 2 x 1400W Power Supplies - PWS-1K41P-1R
- 4 x Super X8DTT-HIBQF+Nodes Each With:
- Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
- Intel Xeon Processor X5600/E5600/L5600/X5500/E5500/L5500 Series
- Supports up to 12 x DDR3 DIMMS
- 2 x Heatsinks Included - SNK-P0037P
- 1 x Supermicro 4-Port Backplane Adapter Card - BPN-ADP-4SATA rev 1.00
- 1 x Supermicro PCIE x16 Right Side 1U Riser - RSC-R1U-E16R rev 1.00
Manufacturers Specification:
SYS-6026TT-HIBQRF
- SuperServer 6026TT-HIBQRF (Black)
Motherboard
4x Super X8DTT-HIBQF+Processor/CacheCPU
- Dual 1366-pin LGA Sockets
- Supports up to twoIntel® 64-bit Xeon®processor(s) of the same type below:
- Intel® Xeon® Processor X5600/E5600/L5600 Series
(Westmere) 40W - 95W
- Intel® Xeon® Processor X5500/E5500/L5500 Series
(Nehalem-EP) 38W - 95W
QPI
System MemoryMemory Capacity
- 12x 240-pin DIMM slots
- Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
- Memory Mirroring supported
Memory Type
- 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
- 1GB, 2GB, 4GB , 8GB** , 16GB**
Memory Voltage
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices (per Node)Infiniband
- Mellanox ConnectX QDR Infiniband 40Gbps Controller
Chipset
- Intel® 5520 (Tylersburg) chipset
- ICH10R + IOH-36D
SATA
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Nuvoton WPCM450 BMC
Network Controllers
- Dual Intel® 82574L Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
Super I/O
Clock Generator
Input / Output (per Node)Serial ATA
- Six Serial ATA ports
- 3 SATA hard drives supported
LAN
- 2x RJ45 LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB
- 2 rear + 1 header (2 Ports)
- 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA
Serial Port
- 1 Fast UART 16550 serial port
Infiniband
- 1 External QSFP Infiniband Connector
System BIOS (per Node)BIOS Type
- 32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
- Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
ChassisForm Factor
Model
- Power On/Off button
- UID button
LEDs
- Power LED (on power button)
- Network activity LED
- System Overheat/fan fail/power fail/ LED
- UID LED (on UID button)
Expansion Slots (per Node)PCI-Express
- 1 (x16) PCI-E ( Low Profile)
Drive Bays (per Node)Hot-swap
- 3x 3.5" SATA Hot-swap drive bays
Hard drive Backplane2U Hard drive BackplaneSystem CoolingFans
Power Supply1400W high-efficiency (1+1) redundant power supply with PMBusAC Input
- 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
- 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output
- 1100W: +12V/92A; +5Vsb/4A
- 1400W: +12V/116A; +5Vsb/4A
With Distributor
- +5V: 30 Amp
- +3.3V: 24 Amp
- -12V: 0.6 Amp
CertificationGold Certified
PC Health MonitoringCPU
- Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
- CPU Core 6-Phase-switching voltage regulator
FAN
- Total of four 4-pin PWM fans
- 4x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Low noise fan speed control
Temperature
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 4x Fan Connectors
- PSU I2C temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
LED
- Power Fail / Overheat LED
- Suspend-state Indicator LED
- UID LED
Other Features
Operating Environment / ComplianceRoHS
Environmental Spec.
- Operating Temperature: 10°to 35°C (50°to 95°F)
- Non-operating Temperature: -40°to 70°C (-40°to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5 to 95% (non-condensing)
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£500 excluding VAT
