Add-on Card

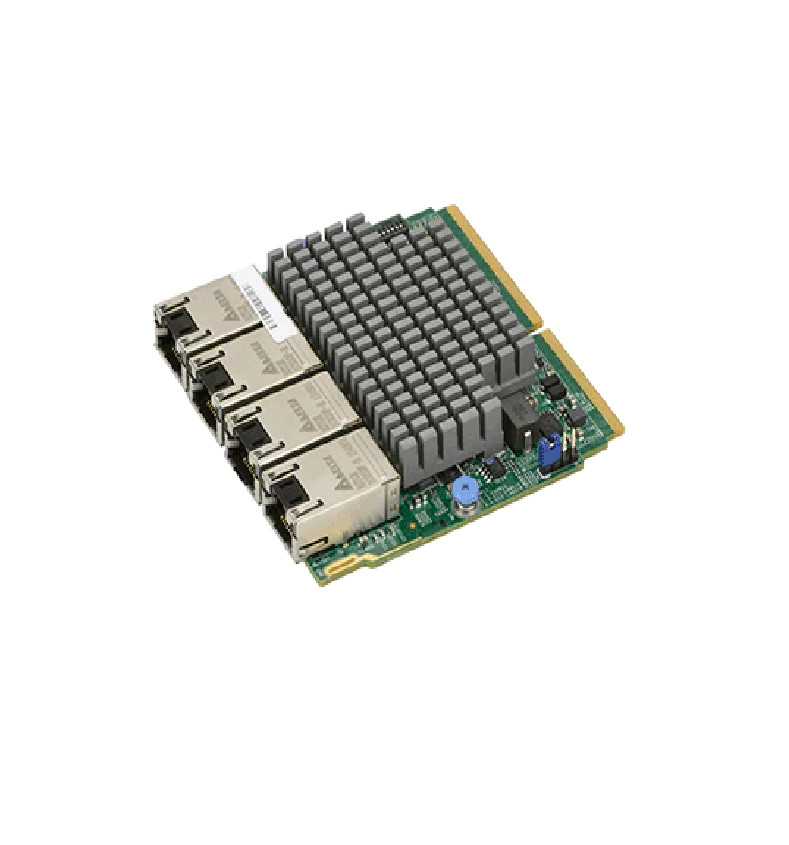

The Most Compact and Advanced 10GBase-T AdaptersThe Supermicro AOC-MTG-i4T are the most feature rich low power 10GBase-T controllers in the market today. Based on the Intel® X550 chipset with virtualization features such as VXLAN and NVGRE, it offers flexible connectivity selection for all networking requirements. The second generation integrated 10GbE MAC+PHY drives down both cost and power enabling a highly cost effective deployment of 10GbE in the data center. The AOC-MTG-i4T is among the most innovative 10GbE controllers in the market and an excellent choice to expand network connectivity in data centers and enterprise environments.This product is only available through Supermicro.
Key Features
• Super I/O Module (SIOM) Form Factor• Intel® X550 10GbE controller. The second generation, 10GBase-T controller with integrated MAC and PHY.• Backward compatibility with existing 1000Base-T networks simplifies the transition to 10 GbE.• Quad RJ45 Connectors• Network Virtualization Offloads: VXLAN and NVGRE• VMDq and SR-IOV for virtualized Environment• Asset Management Features with thermal sensor• NC-SI for Remote Management• Supports RJ-45 Category-6 and 6A cables• RoHS compliant 6/6Compliance
RoHS

• RoHS Compliant 6/6, Pb Free

Downloads
User's Guide[ Download ]Datasheet[ Download ] DriverChoose the latest CDR-NIC folder, and then click on Intel folder for driver [ Download ] Driver CDClick on the latest CDR-NIC ISO file to download [ Download ] Compatibility Matrices
Servers Supermicro Servers with SIOMsupportCables & Transceivers Networking Cables & Transceivers • General - Intel® X550 10GbE controller with integrated 10GBase-T copper PHYs - Super I/O Module (SIOM) Form Factor - Quad RJ45 ports• I/O Features - MSI/MSI-X support - Low Latency - Multiple Queues - 64 Tx and Rx Per Port - Tx/Rx IP, SCTP, TCP, and UDP Checksum Offloading (IPv4, IPv6) Capabilities - Tx TCP Segmentation Offload (IPv4, IPv6) - Receive and Transmit Side Scaling for Windows Environment and Scalable I/O for Linux Environments (IPv4, IPv6 and TCP/ UDP) • Virtualization Features - Multi-mode I/O Virtualization Operations - Network Virtualization Stateless Offload: VXLAN, NVGRE - Support for Virtual Machine Device Queues (VMDq) - 64 Transmit (Tx) and Receive (Rx) Queue Pairs Per Port - Flexible Port Partitioning - 64 VFs per Port - PCI-SIG SR-IOV - 802.1q VLAN support• Management Features - Preboot eXecution Environment (PXE) support - Remote Boot iSCSI and FCoE - IEEE 1588 - Asset Management support on Supermicro® platforms - NC-SI for Remote Management• Cable Support - RJ-45 Category-6 up to 55m; Category-6A up to 100m• Power Consumption - AOC-MTG-i4T: Typical 22W, Maximum 26W• Operating Conditions - Operating temperature: 0°C to 55°C (32°F to 131°F) - Storage temperature: -40°C to 70°C (-40°F to 158°F) - Storage humidity: 90% non-condensing relative humidity at 35°C• Physical Dimensions - Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W xD)• Supported Platforms - Supermicro® motherboards with Super I/O Module slot - Supermicro® server systems with Super I/O Module slot
Specification
