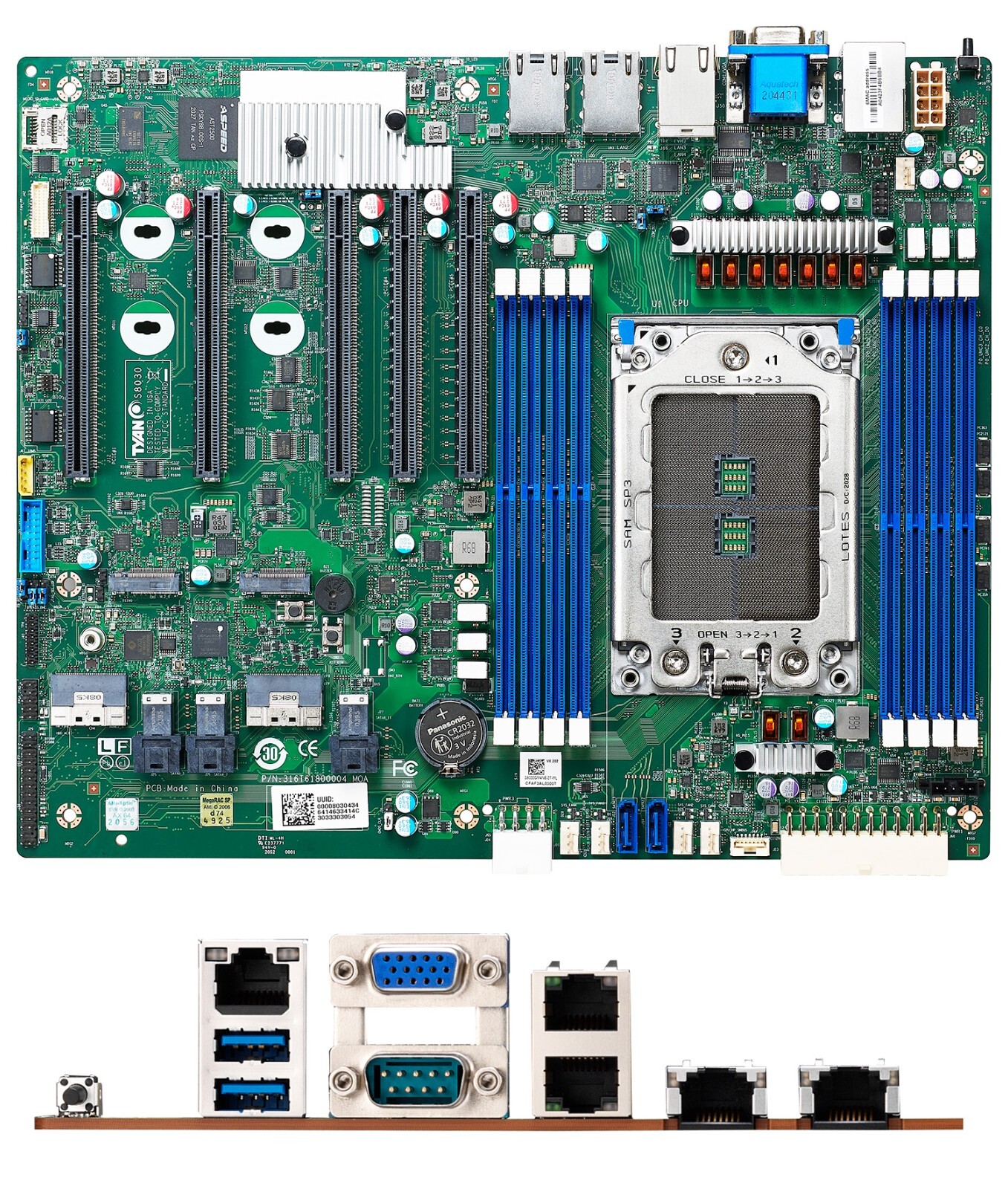

*NEW & FULL WARRANTY*TYAN Tomcat HX S8030 S8030GM4NE-2T Motherboard - AMD EPYC 7003 with 3D V-Cache technology (Milan-X) - AMD Socket SP3 ATX Board

• 8 DIMM slots w/ DDR4 3200 memory support
• Up to 14 SATA ports
• 5 PCIe Gen.4 x16 slots
• 2 PCIe 4.0 x8 SlimSAS conn. for 4 NVMe U.2
• 2 NVMe M.2 22110 / 2280 slots
• 2 10GBase-T + 2 1000Base-T LAN + 1 dedicate 1000Base-T IPMI ports
• AST2500 BMC with IPMI v2.0 & Redfish support

ProcessorQ'ty / Socket Type(1) LGA4189Supported CPU Series3rd Gen Intel Xeon Scalable ProcessorThermal Design Power WattageMax up to 270W (TDP)System BusUp to 11.2/10.4 GT/s with Intel UltraPath Interconnect (UPI) supportChipsetPCHIntel C621AMemorySupported DIMM Qty(8) DIMM slotsDIMM Type / SpeedDDR4 ECC RDIMM /LRDIMM 3200CapacityUp to 1,024GB RDIMM/ 2,048GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory PORMemory channel8 Channels per CPUMemory voltage1.2VExpansion SlotsPCIe(1) PCIe Gen.4 x8 slot (#4 w/x4 link) / (1) PCe Gen.4 x8 slot (#2 via MUX) / (1) PCIe Gen.4 x16 slot (#3 w/x8 link) / (2) PCIe Gen.4 x16 slots (#5,#6)LANQ'ty / Port(1) GbE port + (1) GbE dedicated for IPMIControllerIntel I210PHYRealtek RTL8211EStorage SATAConnector(2) Mini-SAS HD (8 ports)ControllerIntel C621ASpeed6Gb/sRAIDRAID 0/1/10/5 (Intel RSTe)Storage sSATAConnector(1) Mini-SAS (4-ports) / (2) 7-pin SATA for (2) SATA portsControllerIntel C621ASpeed6Gb/sRAIDRAID 0/1/10/5 (Intel RSTe)Storage NVMeConnector (M.2)(2) 22110/2280 (by PCIe Gen.3 interface)Connector (U.2)(1) SFF-8654 for (2) NVMe portsNotificationCertain M.2 SSDs designed after November 2020 are supported only with a specific motherboard revision. Please contact Tyan Technical Support for additional information.Storage (Optional)VROC SupportYesGraphic VGAConnector typeD-Sub 15-pinResolutionUp to 1920x1200ChipsetAspeed AST2500Input /OutputUSB(2) USB2.0 ports (@ rear) / (2) USB3.0 ports ( @ rear) / (2) USB3.0 ports (via cable)COM(1) DB-9 COM ConnectorVGA(1) D-Sub 15-pin VGA port (@ rear)RJ-45(1) GbE port + (1) GbE dedicated for IPMIFront Panel(1) 2x12-pin SSI front panel headerAudio(1) 2x5-pin header / (1) 3 holes Audio Jack connectorSATA(14) SATA-III ports from AHCIPower8-pin power connectorsOthers(1) UID buttonTPM (Optional)TPM SupportPlease refer to our TPM supported list.System MonitoringChipsetAspeed AST2500FanTotal (5) 4-pin headersTemperatureMonitors temperature for CPU, memory & system environmentVoltageMonitors voltage for CPU, memory, chipset & power supplyLEDOver temperature warning indicator / Fan & PSU fail LED indicatorOthersWatchdog timer supportAudioChipsetRealtek ALC888SFeature2.1 chServer ManagementOnboard ChipsetOnboard Aspeed AST2500AST2500 iKVM Feature24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hubAST2500 IPMI FeatureIPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interfaceBIOSBrand / ROM sizeAMI / 32MBFeatureHardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S5Physical DimensionForm FactorSSI CEB compatibleBoard Dimension12” x 10.5” (305 x 267mm)RegulationFCC (SDoC)Class BCE (DoC)Class BRCMClass BVCCIClass BOperating EnvironmentOperating Temp.0° C ~ 40° C (32° F~ 104° F)Non-operating Temp.- 40° C ~ 70° C (-40° F ~ 158° F)In/Non-operating Humidity90%, non-condensing at 35° CRoHSRoHS 6/6 CompliantYesOperating SystemOS supported listPlease refer to our AVL support lists.Package ContainsMotherboard(1) S5642 MotherboardManual(1) Quick Installation GuideI/O Shield(1) I/O ShieldCable SATA(2) SATA signal cables
