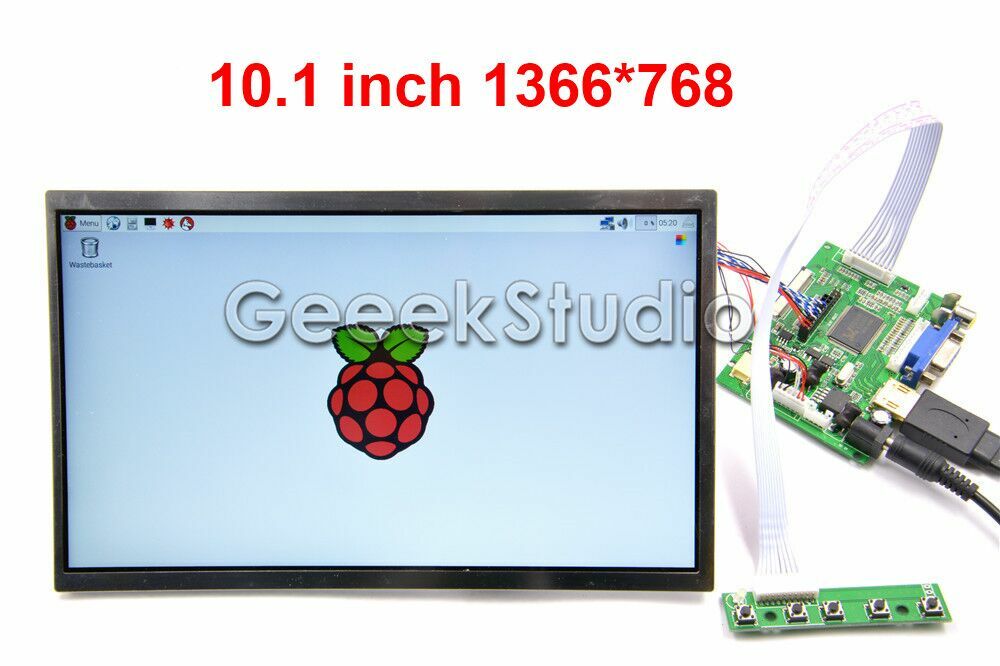

10.1 inch 1366*768 LCD Screen Display module kit for Raspberry Pi 3 / 2 Model B

Description:

This 10.1 inch High-resolution 1366*768 LCD display module kit is especially designed as a monitor for Raspberry Pi 3 / 2 Model B and Raspberry Pi B+ B A+.

For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to the native 1366x768 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the Pi TF card into an every day computer and edit config.txt with any text editor and save.
Features:

• Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"
• Panel Type: a-Si TFT-LCD Panel
• Panel Size: 10.1"
• Resolution (RGB): 1366x768, WXGA
• Brightness: 200cd/m2
• Contrast Ratio: 800:1 (Min.)
• Display Colors (16bit): 65K
• Response Time (Tr+Td): 30
• Viewing Angle (CR>10): 85/85/85/85
• Operating voltage: 12V (current requirement 1A-2A)
• Rated power: 6-7W
• Signal input: AV + VGA + HDMI (HDMI 1.2)
• Resolution: 1366* 768,
• Plug and Play: Support
• OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
• Control: Multifunction OSD operation or potentiometer adjust the brightness and color

Specifications:

• Screen size: 10.1 inch
• Touch screen: Not support
• Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"
• Panel Type: a-Si TFT-LCD Panel
• Panel Size: 10.1"
• Resolution (RGB): 1366x768, WXGA
• Display Mode: HFFS, Normally Black, Transmissive
• Surface: Hard coating
• Brightness: 200cd/m2
• Contrast Ratio: 800:1 (Min.)
• Display Colors (16bit): 65K

Package Includes:

• 1× HDMI+VGA+2AV LCD Controller Board
• 1× 10.1 inch 1366x768 LCD Screen
• 1× LVDS Cable
• 1× Keyboard with Wire
