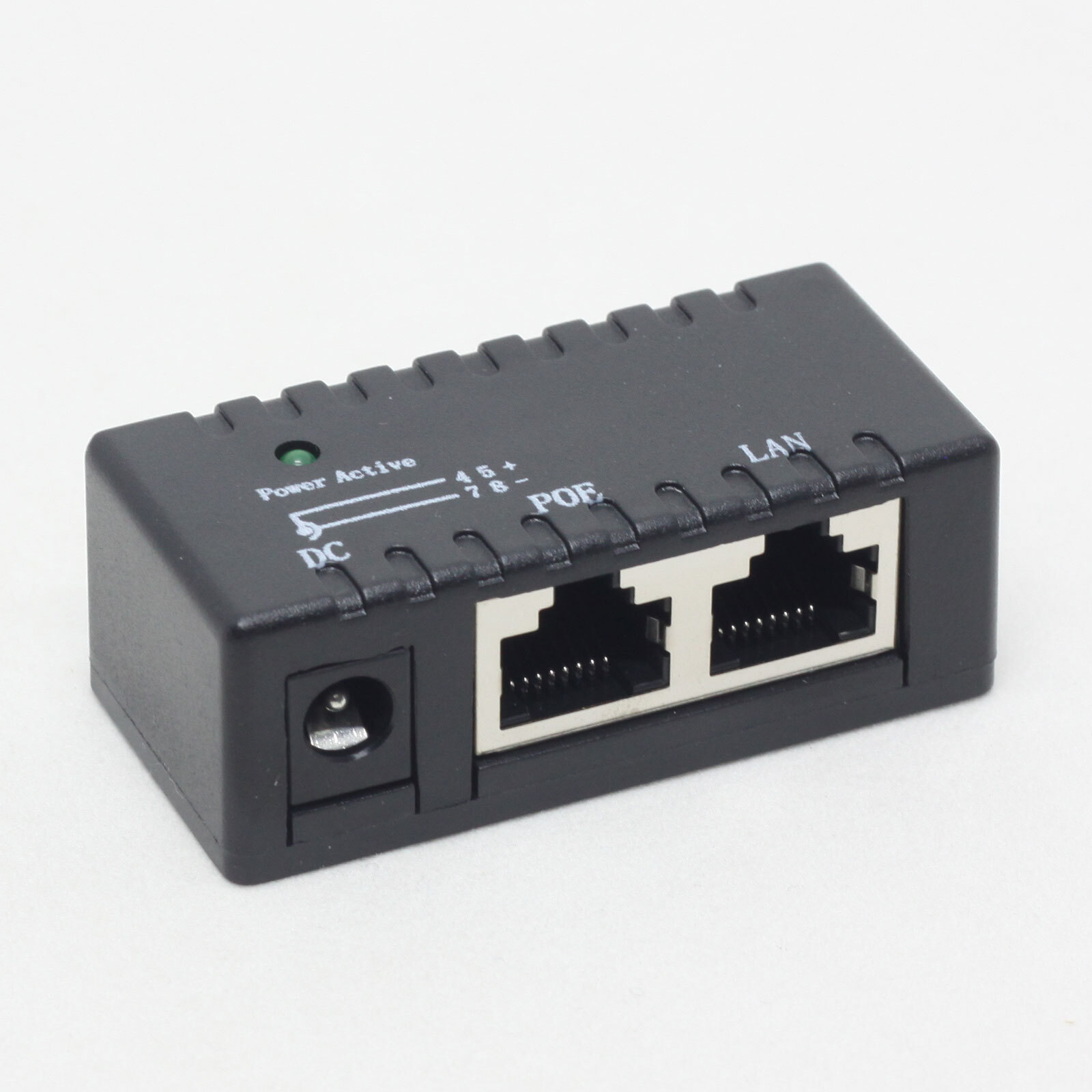

10pcs Passive PoE Injector/ Splitter

IEEE 802.3af Mode-B(4,5+/7,8-) 9-48V/1A

This is a Passive PoE Injector (or Splitter), you need an extra 5.5*2.1mm DC port Power adapter if you need it works as a Injector. While if it works as a Splitter, then you need another male to male DC cable, the port is 5.5*2.1mm (the DC cable is available in our store)

This Adapter only support 10/100M connection, do not support gigabit ethernet connection, because "PoE" port use 4,5,7,8 pin as power transfer. Please do not connect any gigabit ethernet device on "PoE" port, this will damage your device.

As a Injector, the "PoE" out port is an 802.3af, but it does NOT include the 802.3af compliant detection feature. It supplies power NO MATTER WHAT, so don't plug the "PoE" side into anything that isn't ready for it.

When works as Injector,this"PoE" out port is compatible with all 802.3af devices as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....

Specification:

Model PSI-348 Product Name Simple POE Injector / Splitter Data PIN 1/2 & 3/6 Power PIN 4/5+ & 7/8 Data in Connects PC/HUB/Switch Weight 60 Dimensions 75mm*28mm*21mm Case of material ABS 94V-0 Ethernet Data rate 10/100 Mbp Ethernet Cable TIA/EIA 568 Cat.5 Ethernet Cable Connector RJ-45 Operating Temperature 0 - 40 Degree Storage Temperature -40 - 70 Degree Operating Humidity 10% to 80% RH Storage Humidity 5% to 90% RH

Item Included:

Passive PoE Injector Adapter x10
