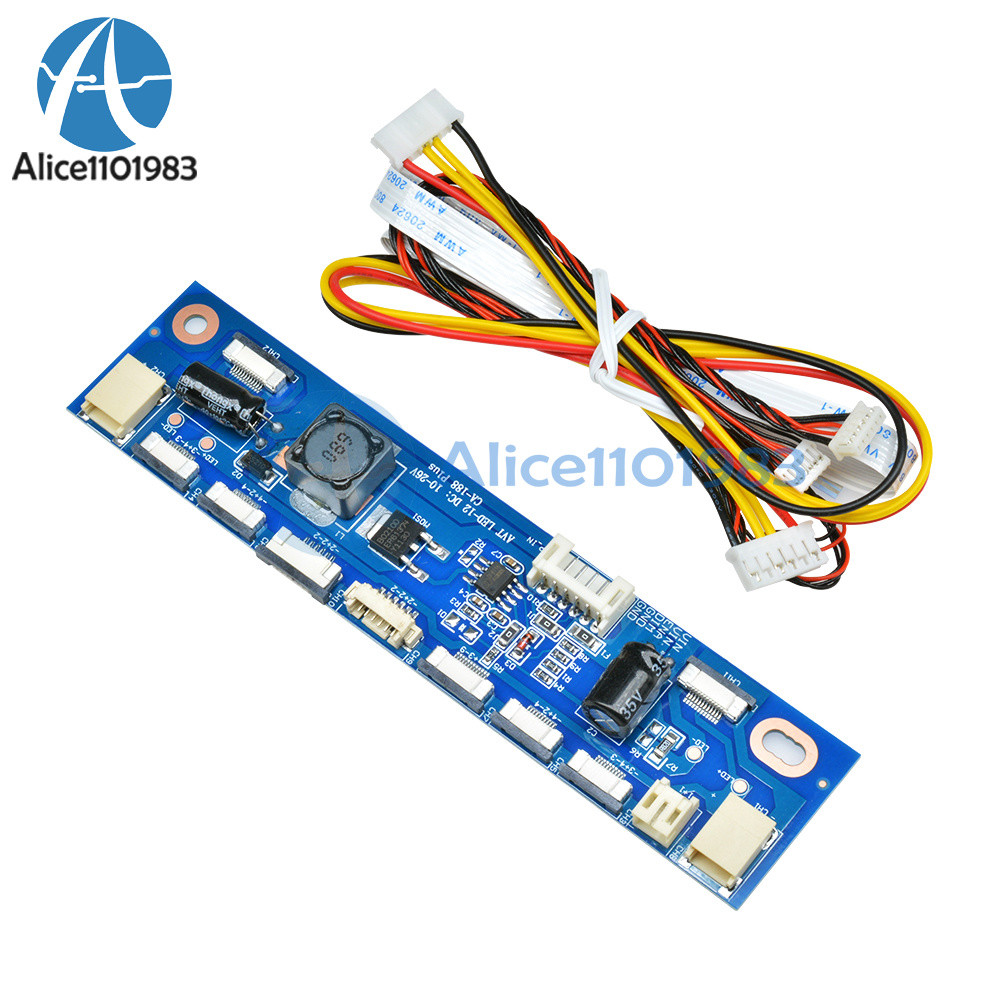

10pcs Backlight LED Inverter Tester 12 Connecters Constant Current Driver Board
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
10pcs Backlight LED Inverter Tester 12 Connecters Constant Current Driver Board
Price: CN $34.59

Backlight LED Inverter Tester 12 Connecters Constant Current Board Driver BoardItem Description
  • 100% brand new and high quality
  • Color: as shown in pic
  • Description:
  • Not provide technical support. you should know how to use it. If not, think twice before your order. Thanks!
    　
  • LED high-pressure board conversion instructions
  • 1: Connect the power, ground, and switch signals required by the booster board to the universal LED booster board
  • VCC Power ON Switch Signal ADJ Brightness Control GND Ground
  • HINT: Connect the same way as the LCD high voltage board
  • 2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few lines
  • Line is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition.
  • 【Product Name】Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage board
  • LED connection must pay attention to the definition of the interface is only positive and negative points, the positive input power supply must not be reversed or wrong,
  • Improper connection caused by the consequences of their own, special reminder, but also understanding.
  • 【Size】 12.3cm * 3.1cm
  • 【Annex】 send six LED cable + 1 power supply control line 6P 10p 12P soft row 6P electronic lines
  • 【Interface definition】 Outputs 12 interfaces
  • -3 + 4-3
  • -4 + 2-4
  • + 3-9
  • -1 + 1
  • -2 + 2-2 electronic wire
  • -2 + 2-2FFC
  • -4 + 2-4
  • -3 + 4-3
  • -5 + 2-5 * 2
  • Small mouth * 2
    　
  • Input: Power supply switch signal brightness control ground wire
  • (Same as LCD)
  • Not all of the interfaces are soldered on, we pre-installed one or more details see above description.
  • Note:
  • Due to the difference between different monitors, the picture may not reflect the actual colorof the item. Thank you!
Package Included: 1 x Backlight LED Inverter Tester Constant Current Board Driver Board 12 Connecters
