Features:
1. The effect varies according to the machine as well as the motor.
2. No relationship with the main control board, firmware, any main control board, firmware is applicable.
3. Related to the motor, motor resistance is small, the effect is more obvious.
4. There will be heat, if necessary, you can add heat sink cooling.
5. The product is smallDescription:
The board provides flyback diodes for the motor, so that it can also resist the induction voltage in the driver without power supply state. Protects the stepper motor driver. v2 protector also contains a diode from logic voltage (anode) to motor voltage (cathode) to ensure the power supply sequence of all silent stepper bars. This product is mainly for the parallel structure 3D printing when the vibration ripple, especially the use of TMC2100 drive and relatively low resistance of the motor effect is more obvious, can effectively eliminate the effect of low-speed motor is more obvious, effective elimination of low-speed situation uneven signal wave, so as to achieve a relatively flat signal wave effect, in the use of TMC2100 drive 24V power Delta models most obvious The elimination effect of different machines will vary in magnitude. Applicable to: DVR8825, A4988, TMC2100, LV8729V, and any two-phase four-wire stepper motor.Package and list:

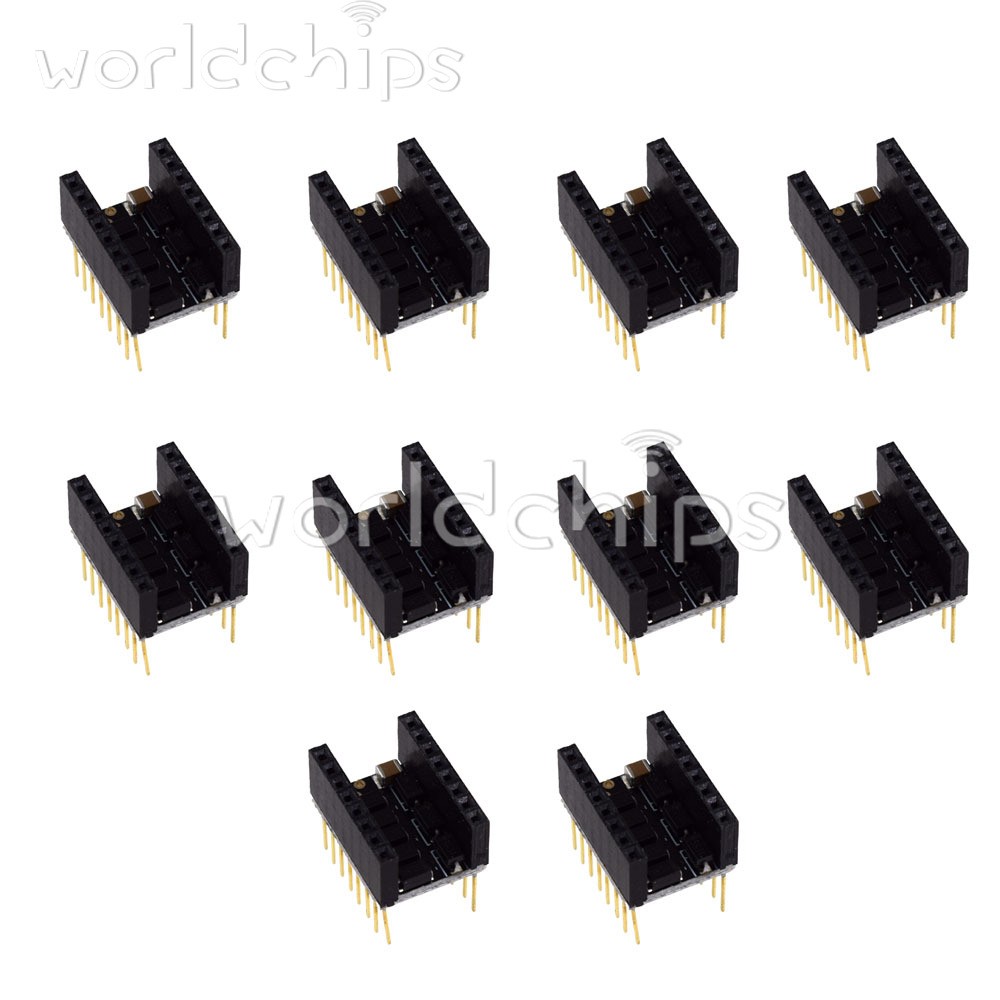

10PCS
