TTI Fiber FDB-16B

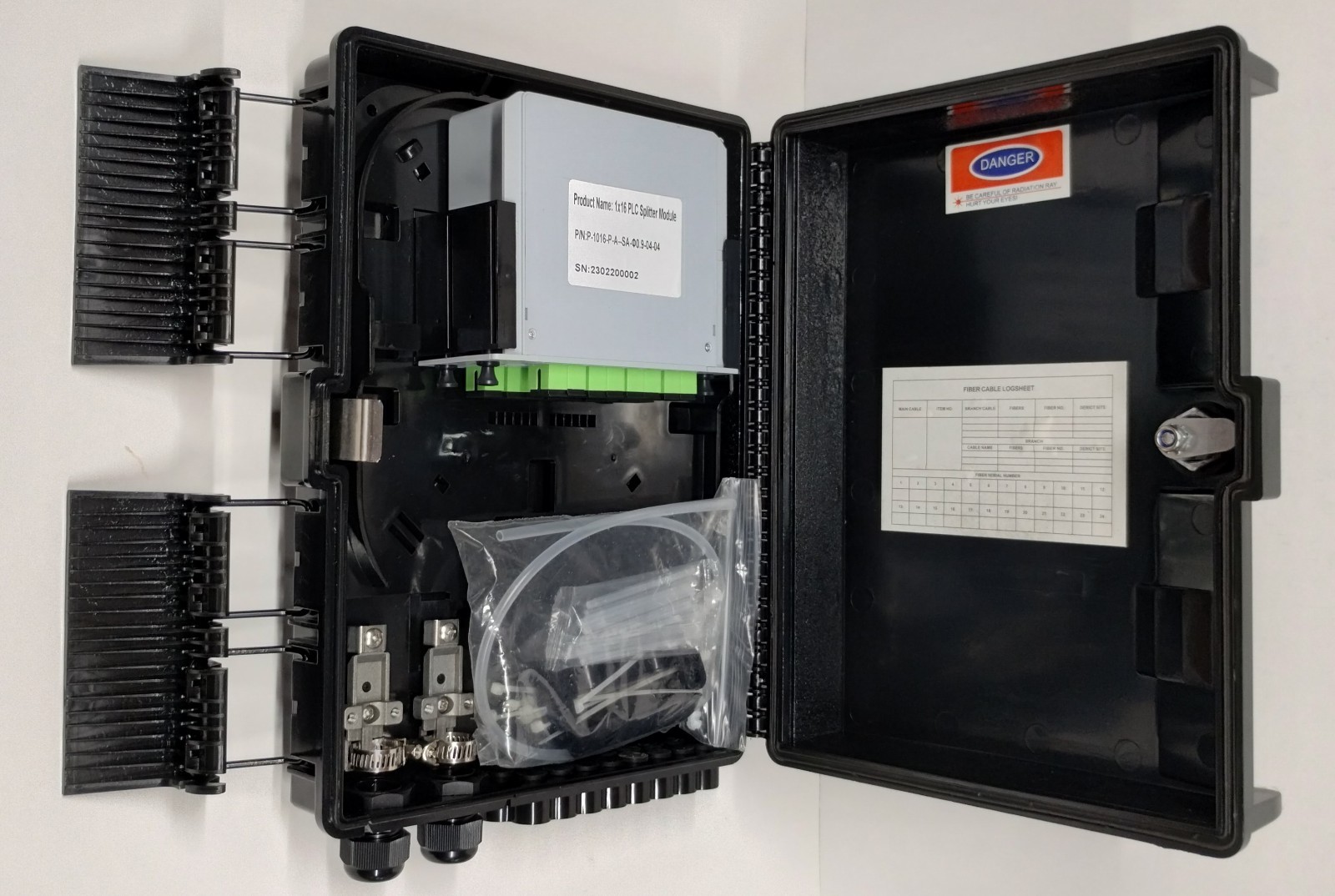

16-Port SC/APC FTTH Fiber Distribution Box with 1x16 PLC Cassette Style SplitterDescriptionThis Lockable IP65 distribution box is supplied loaded or unloaded and offers the ability to terminate 16fibers housed in a strong robust ABS（ABS+PC）enclosure for indoor and outdoor applications. This terminal box terminates up to 16 fiber optic cables, offers spaces for splitters and up to 24 fusions, allocates 16 x SC Simplex adapters or 16 xLC Duplex adapters and working under both indoor and outdoor environments. It allows also fiber splitting, splicing and distribution. Provides solid protection and management for the FTTH network building.
Features

• IP 65 Rating for external use
• Lockable door for added security
• Integrated cable tie points for securing incoming cable
• Up to 24 splices & 16xSC Simplex connection points or 1×4/1×8/1×16 PLC splitter
• Removable splice tray for easy installation
• Accepts loose tube, distribution and pre-terminated cables
• Integrated bend radius protection
• Removable door for ease of installation
• Supplied with 16 heat shrink splice protectors
• Supplied with transit tubing
• Supplied with wall fixings and tie wraps
• ROHS, REACH FDB-16C-2PLC Modular (1×16 PLC Cassette Style Splitter)Cable Ports 2Applicable cable OD 5-15mmBox Dimensions(mm) 303mm*236mm*109mmMaterial ABS/ABS+PCMax capacity(F) 24FInstallation method Rack mount and pole mountOperation conditions:Temperatures: -40℃ — 60℃Humidity: 93% at 40℃Air Pressure: 62kPa – 101kPa
  * Distribution Box is NIB. Free Shipping. *
