LCD Parameters:
Screen Size:4.0 inch
Screen Type:TN
Resolution:320xRGBx480 (pixels)
Area (AA area):55.68(W)x83.52(H)(mm)
Number of Colors(Max):16.7M
Driver IC:ST7796S
Display Interface:4-Line SPI
Pixel Size:0.174(H)x0.174(mm)
View Angle:12 O'CLOCK
Brightness(TYP): 300(cd/m2)
Backlight Type:White LED*8
Operation Temperature:-10~50(℃)
Storage Temperature:-20~60(℃)
Electrical Parameters：
Working Voltage：5.0 V/3.3V(Recommended to connect to 5V)
Backlight Current：103 mA
Power：0.5 W
Touch Screen Parameters:
Touch Area:4.0 inch
Touch Screen Type:Capacitive Touch Screen
Touch Screen Resolution:320x480(pixels)
Driver IC:FT6336U
Touch Screen Visual Area:55.98(W)x83.82(H)(mm)
Communication Interface： IIC
Operation Temperature: -20~70(℃)
Storage Temperature: -30~80(℃)
Size Parameters:
TFT Outline cables and adhesive backing)
Touch Screen Outline Size:60.88±0.1(W)x94.57±0.1(H)x1.35 (D)(mm)(Excluding cables and adhesive backing)
Module Outline Size:Have Touch Pin Header)
Other Parameters：
Interface：14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Package include：

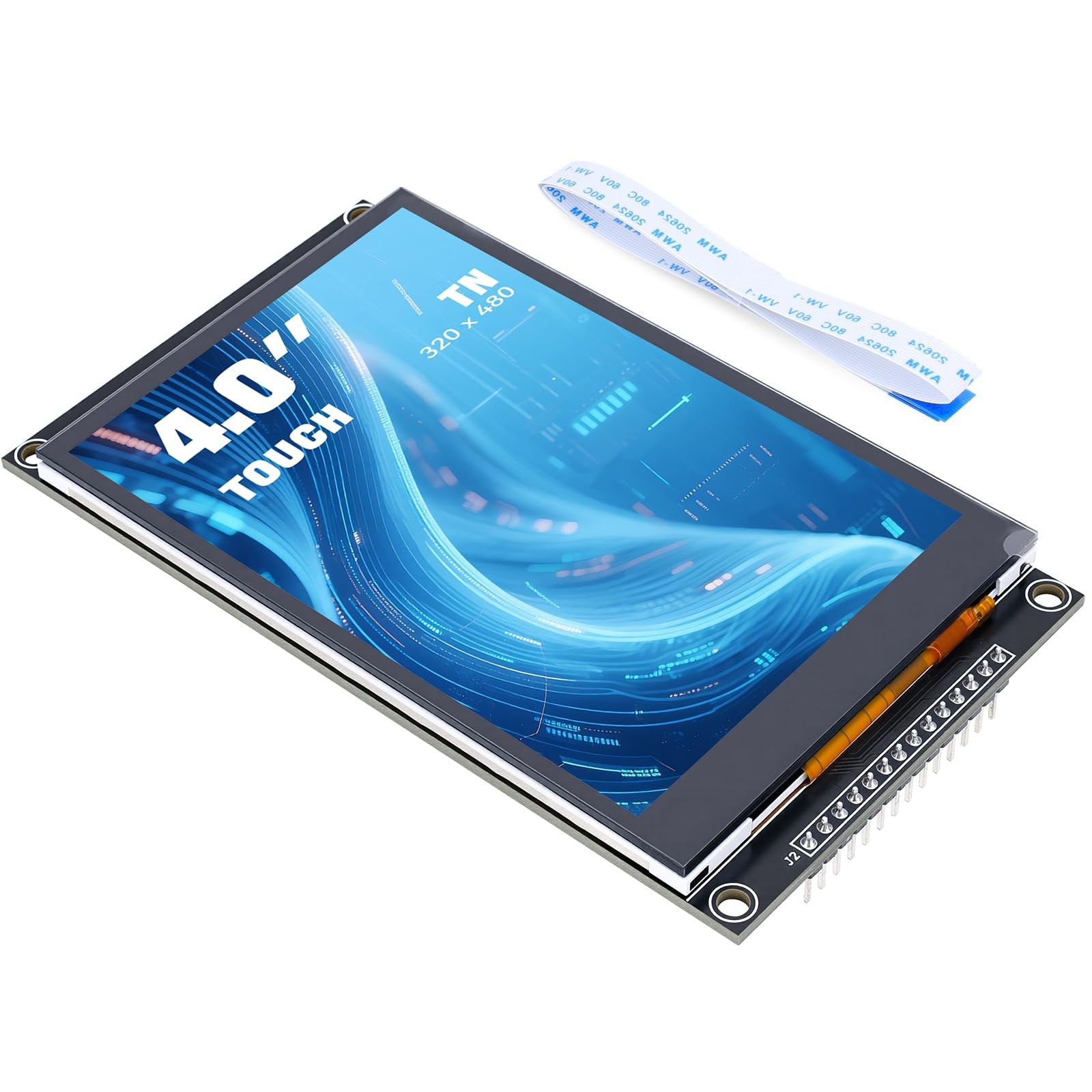

1 x 4.0” touch screen
1 x FPC cables
1 x Plastic protective box
LCD display parameters: 4.0-inch TN capacitive touch screen, resolution 320x480, 65K colors, rich display colors, brightness 300 (cd/m²), display interface: 4-Line SPI
ESP32 display module: using ST7796S driver, onboard level conversion circuit, compatible with 5V and 3.3V MCU; using four-wire SPI serial bus, saving I/O pins
Advantages: Newly upgraded to capacitive touch for Ar duino screen module. Compared with resistive screen, it is more convenient to use and more accurate to touch
Humanized design: The module input supports 2.54-pin interface and FPC expansion interface, equipped with Micro TF card slot for easy storage and expansion; provides rich example learning programs (ESP32/STM32/Ar duino R3 & Mage2560/C51/CH32), provides underlying driver technology support, online update information, and supports long-term stable work
