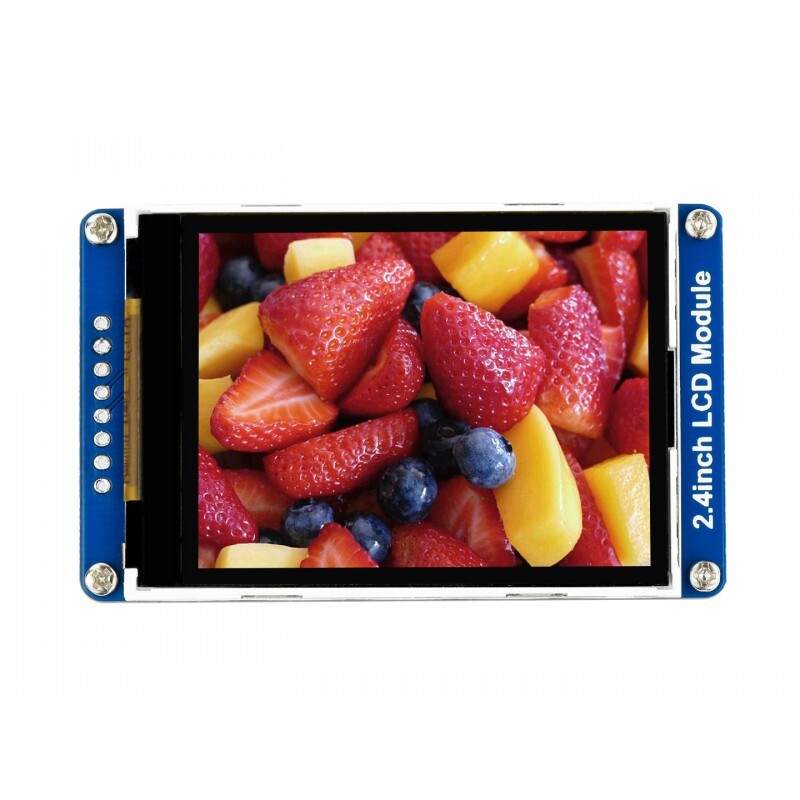

2.4inch 240×320 LCD Display Module ILI9341 TFT Screen SPI Interfac 65K RGB Color For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
2.4inch LCD Display Module, 65K RGB Colors, 240×320 Resolution, SPI Interface2.4" LCD DISPLAY MODULE Embedded ILI9341 Driver, Using SPI Bus Comes with examples for Raspberry Pi, Arduino, STM32, etc. - Size2.4"
- Display Color65K RGB
- InterfaceSPI
- 240×320 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with development resources (examples for Raspberry VOLTAGE3.3V/5VRESOLUTION240 × 320 pixelsCOMMUNICATION INTERFACE4-wire SPIDISPLAY SIZE36.72 × 48.96mmDISPLAY PANELTFTPIXEL SIZE0.153 × 0.153mmDRIVERILI9341DIMENSIONS70.50 × 43.30mmControlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32 VCCPower (3.3V/5V input)GNDGroundDINSPI data inputCLKSPI clock inputCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low activeBLBacklightHardware ConnectionConnecting With Raspberry Pi Connecting With Arduino Board Living ExampleOutline Dimensions
Development Resources - 2.4inch LCD Module x1
- PH2.0 8PIN 20cm cable x1
