Description:

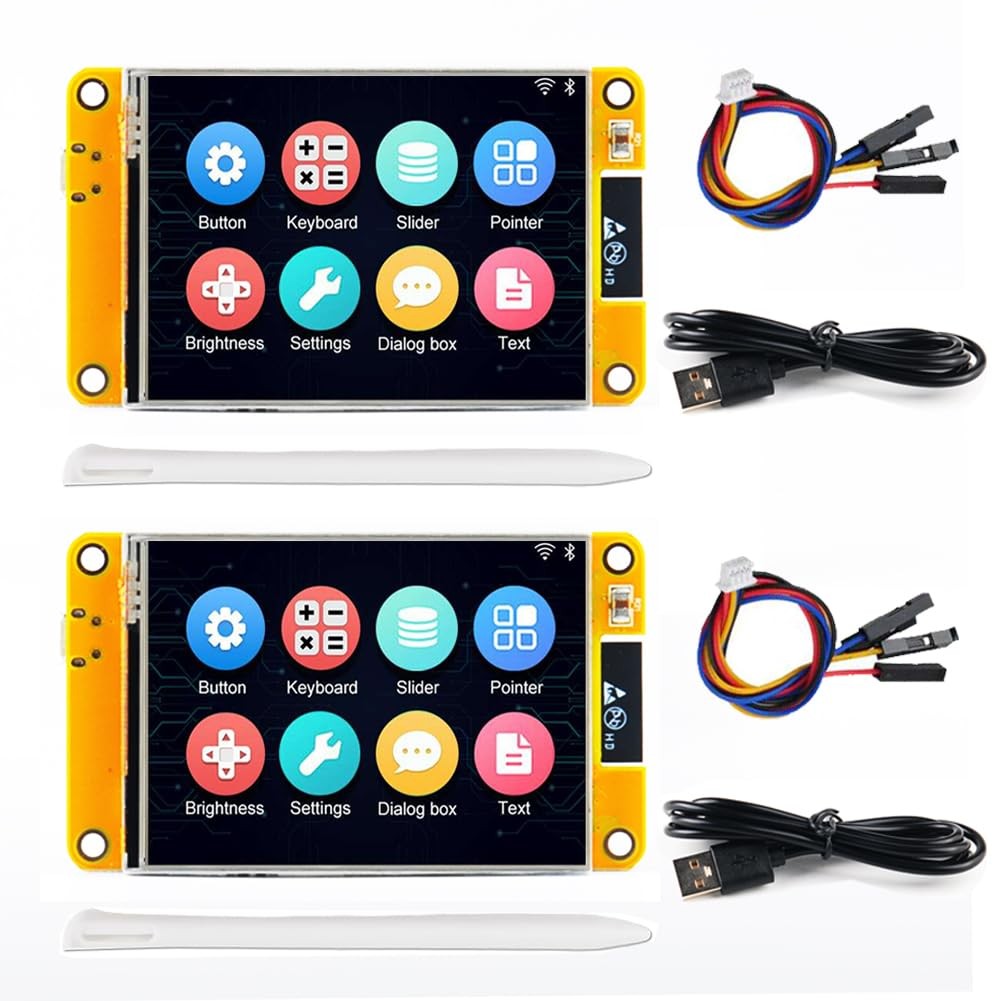

ESP32-2432S032 development board, which gives full play to the development of the Internet of Things, is a real IOT development tool with a control-lable display screen.
ESP32 Touchscreen can be used for APP remotecontrol, remote environmental data collection, remote data fusion, remote Parameter settings and other loT development applications. Specifications:
Driver Chip: ILI9341
Working voltage 4.75-5.25V
SPI Flash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16 Transmit power
802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7) Receiving sensitivity
CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm Power consumption
Turn off the flash: 180mA5V
Turn on the flash and adjust the brightness to the maximum: 310mA5V Deep-sleep:
The lowest power consumption can reach 6mA5V
Modern-sleep: the lowest can reach 20mA5V
Light-sleep: the lowest can reach 6.7mA5V
WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃,
