Product description

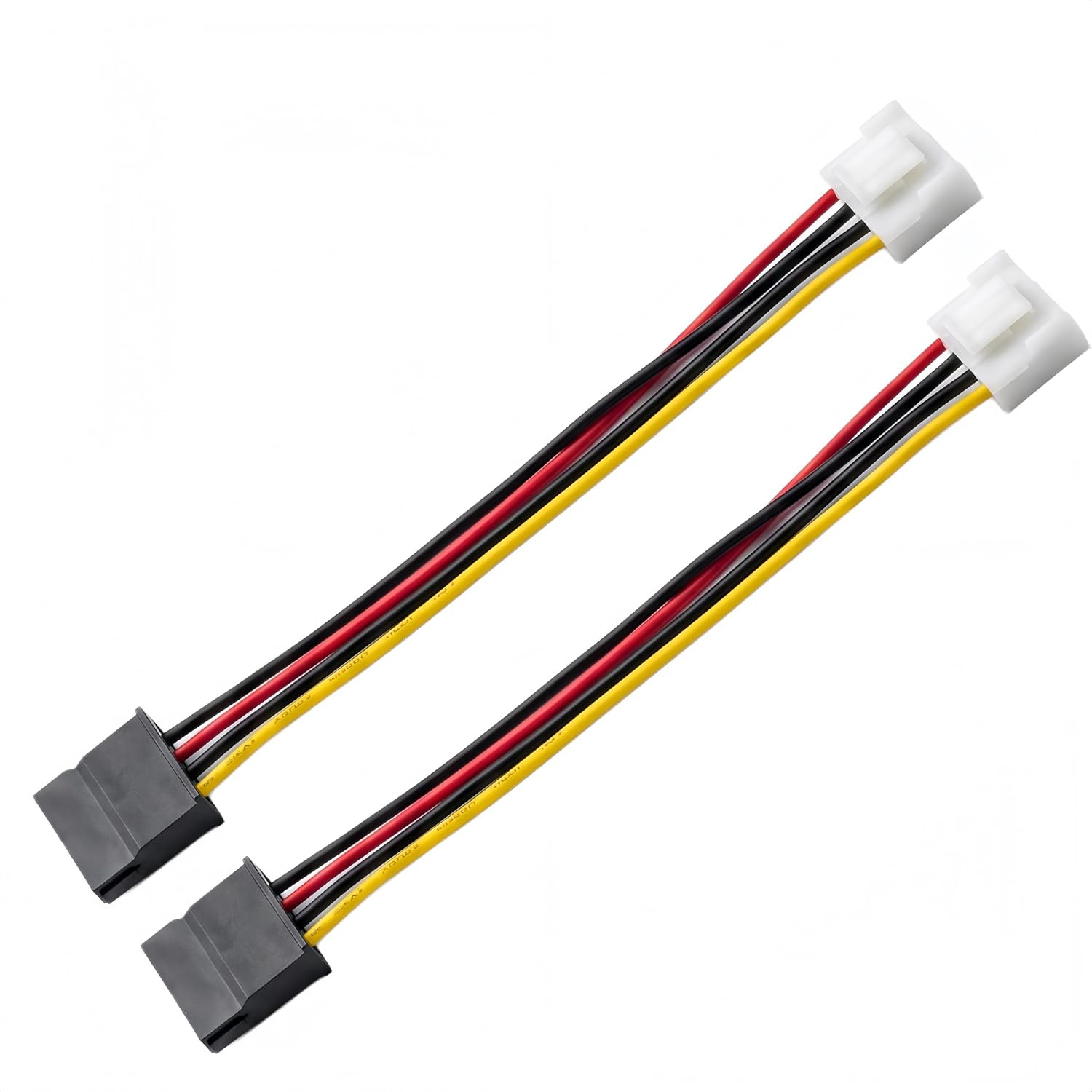

Do you need to add a second hard drive to your Hikvision DVR or NVR, or replace a lost or damaged SATA power cable? This 2-Pack 4 Pin to SATA Power Adapter Cable is the perfect solution.

Designed specifically for Hikvision video recorders, this adapter cable connects the proprietary 4-pin power port on your Hikvision recorder to a standard SATA hard drive, allowing you to power up to two HDDs or SSDs in your security system-1.

What This Cable Does:

Component Connection

Connector A (Recorder Side) 4-pin Male – connects to Hikvision recorder‘s proprietary power port

Connector B (Drive Side) SATA 15-pin Female – connects to standard SATA hard drive or SSD

Compatibility Hikvision DVR/NVR recorders only – NOT for standard PC power supplies

Why You Need This Cable:

• Replace lost or damaged original power cables
• Add a second hard drive to dual-bay recorders for extended storage
• Upgrade to a larger capacity hard drive with a fresh, reliable cable
• Keep a spare cable on hand for troubleshooting

This cable uses a special 4-pin connector that is ONLY compatible with Hikvision video recorders.

Compatible With:

• Hikvision 7100 series (7104, 7108, 7116, etc.)
• Hikvision D1 series (D1-108C, etc.)
• Hikvision N1 series (N1-104, etc.)
• Hikvision 71 series
• Hikvision DS-76 series (DS-7604N-E1/4P, etc.)
• Hikvision DS-78 series (7808HGH, 7816HGH, etc.)
• Hikvision 5108H, 5116H
• Hikvision 3100 series
• Many DS-7600 and DS-7800 series models

NOT Compatible With:

• Standard computer power supplies-
• Standard 4-pin Molex (IDE) connectors-
• Other brands of video recorders (Dahua, Lorex, Swann, etc.)
• Desktop PC motherboards or power supplies

Technical Specifications Connector A (Recorder Side) 1x 4-Pin Male (Hikvision proprietary) Connector B (Drive Side) 1x SATA 15-Pin Female Cable Length 7.5 inches / 19 cm (including connectors) Wire Gauge 1007-18AWG Tin-Coated Copper Cable Type Black Braided Sleeved Compatible Devices Hikvision DVR/NVR video recorders (see list above) Quantity 2 cables per pack Voltage 12V DC

Step 1: Verify Compatibility – Check that your Hikvision recorder model is listed in the compatible models above.

Step 2: Power Down – Turn off your Hikvision recorder and disconnect the power cord.

Step 3: Connect to Recorder – Plug the 4-pin male end of the adapter cable into the corresponding 4-pin power port on your Hikvision recorder. The connector is keyed to fit only one way – do not force it.

Step 4: Connect to Hard Drive – Plug the SATA 15-pin female end into your hard drive‘s power port.

Step 5: Secure and Test – Close the recorder chassis, reconnect power, and power on your system. The hard drive should be detected automatically.

• 🔹 SATA POWER CABLE FOR HIKVISION VIDEO RECORDER – This adapter cable features a 4-pin male connector on one end that connects to the proprietary power port on Hikvision video recorders, and a standard SATA 15-pin female connector on the other end that connects to your hard drive HDD/SSD. Designed as a direct replacement for lost, damaged, or missing power cables.
• 🔹CRITICAL – HIKVISION VIDEO RECORDER ONLY – This cable uses a special 4-pin connector that is ONLY compatible with Hikvision DVR/NVR video recorders as listed below. It is NOT compatible with standard computer power supplies, standard 4-pin Molex (IDE) connectors, or other brands of video recorders. Please verify your recorder model before ordering.
• 🔹2-PACK INCLUDED – GREAT VALUE FOR MULTIPLE DRIVES – Each kit includes two (2) adapter cables, giving you the flexibility to power two hard drives simultaneously in dual-bay recorders, keep a spare on hand, or use for multiple recorder setups. Cost-effective solution for security system installers and DIY users.
• 🔹PREMIUM 18AWG CONSTRUCTION – SAFE & RELIABLE – Built with high-quality 1007-18AWG tin-coated copper wire for stable power delivery and minimal voltage drop. The 7.5-inch (19cm) length provides just enough reach for clean routing inside DVR/NVR chassis without excess cable clutter. Black braided sleeving offers protection against abrasion and heat.
• 🔹WIDE COMPATIBILITY – SUPPORTS POPULAR HIKVISION MODELS – Compatible with a wide range of Hikvision video recorders including: 7100 series (7104/7108/7116), D1 series (D1-108C), N1 series (N1-104), 71 series, DS-76 series (DS-7604N-E1/4P, etc.), DS-78 series (7808HGH, 7816HGH, etc.), 5108H, 5116H, 3100 series, and more. Also compatible with many DS-7600 and DS-7800 series models.
• 🔹PLUG-AND-PLAY – EASY INSTALLATION – No drivers or software required. Simply connect the 4-pin male end to your Hikvision recorder‘s power port, and plug the SATA 15-pin female end into your hard drive. The connectors are keyed to fit only one way – do not force them. Perfect for upgrading or replacing hard drives in your security system.
