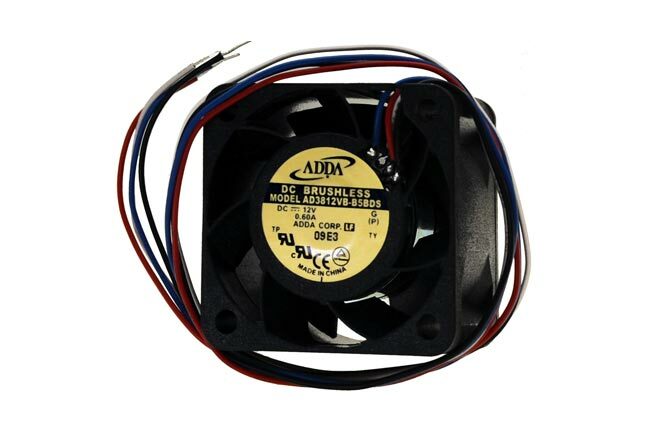

38mm x 38mm x 28mm 4-Wire PWM 12V Super High Speed Fan (FFB03812VHN or AD3812VB)
Price: US $8.85
ADDA AD3812VB-B5BDS or Delta FFB03812VHN-9C3P
Dimensions: 38x38x28 MM
Rated Voltage: DC 12V
Current: 0.6A (Duty cycle 100%)
Input Power: 0.72W (Duty cycle 100%)
Speed: 15000 RPM (Duty cycle 100%)
Air Flow: >20 CFM, (0.566 m³ /min)
Noise: 54 dBA
Bearing: Ball
Feature: Speed Sensor (Tachometer Output) PWM Control
Mounting Style: Rib Type
Termination: 4-Wire / 12-Inch
Wires: Red = positive, Black = negative, White = FG, Blue = PWM
