Superbat offers Micro Coax Cable Assemblies in 50 Ohm are uesd Micro Coax Cable of 1.13,1.37 and RG178. We'll configure your assembly with the U.FL(AMC, MHF ,UMCC) connectors and other end with and so on. Our Micro Coax Cable Assemblies are commonly Applied to GPS,WLAN,Remote Measuring Equipment,Bluetooth,Personal Digital Assistant (PDA),Portable Devices.
U.FL cable assembliescan be attached to a variety of RF coaxial connectors. Ideal
for ham radio, Wi-Fi radio modems, and 2.4Ghz radio control (R/C) system projects .We operates onsite
semi-automatic U.FL termination equipment to facilitate quick turn cable assemblies.
Typical applicationsof the U.FL series include a variety of wireless technology systems such as GPS,
wireless routers, Bluetooth, MIMO, RFID, WiMAX, iBurst, UWB, and Zigbee.
Frequency - Max:6GHz | Impedance:50 Ohm | 1.13MM Cable is double-shielded,low-loss and very flexible/easily bendable.
Our MHF4 and U.FL connectors are precision machined and gold-plated for low loss.| can be used for small devices, space saving.
Make sure you are familiar with your connectors before buying, As stated in the listing MHF4 will NOT work for Mini PCIe Wireless Card. They are for NGFF Wireless Card known as (MHF4) only.
Characteristics:
Impedance50 Ωconnectors
One end: U.FL Male Right Angle
Other end: MHF4 Female Right Angle
cable
1.13mm
Length
4" (10cm) default
Compatible with:
Radio ManufacturerRadio that use U.FL connectorProxim ORiNOCO
Mini-PCI Components
EnGenius
NL-5354MP Plus Mini-PCI adapter,NL-3054CB Plus Mini-PCI adapter, NL-3054MP Plus Mini-PCI Adapter, NL-2511MP Plus Mini-PCI Adapter
SenaoNL-5354MP Plus, NL-3054MP Plus, WMP-3000ZcommaxXG-900, with all mini PCI card or most mini PCI-E card
For Example:
N5321 4G EM7345 GOBI5000, HUAWEI ME906E ME906V ME906J NGFF M2M Card 3G 4G
Apple BCM94360CSAX, BCM94360CS2, BCM94360CS2AX
BCM94360HMB WIFI WLAN CARD
Inel 7260, 7265, 3160 NGFF
Applications:
GPS antenna
Car audio
GSM antenna
Wireless equipments
Wireless class="STYLE10" align="left">Package included:

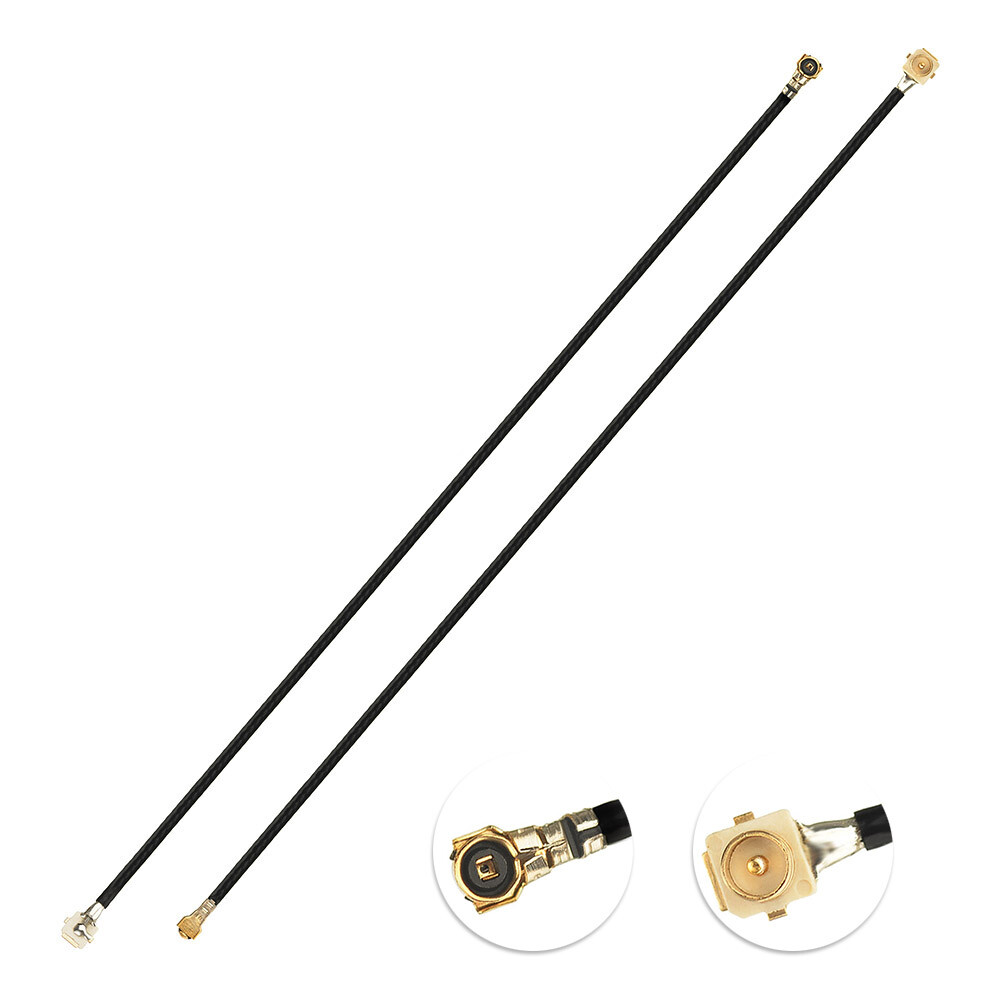

3pcs UFL / u.fl male SMD connector to MHF4 female right angle jumper cable 1.13mm RF Pigtail Antenna Cable 10cm For BCM94360HMB
