Allows you to add multiple functions to the front panel.
Description:

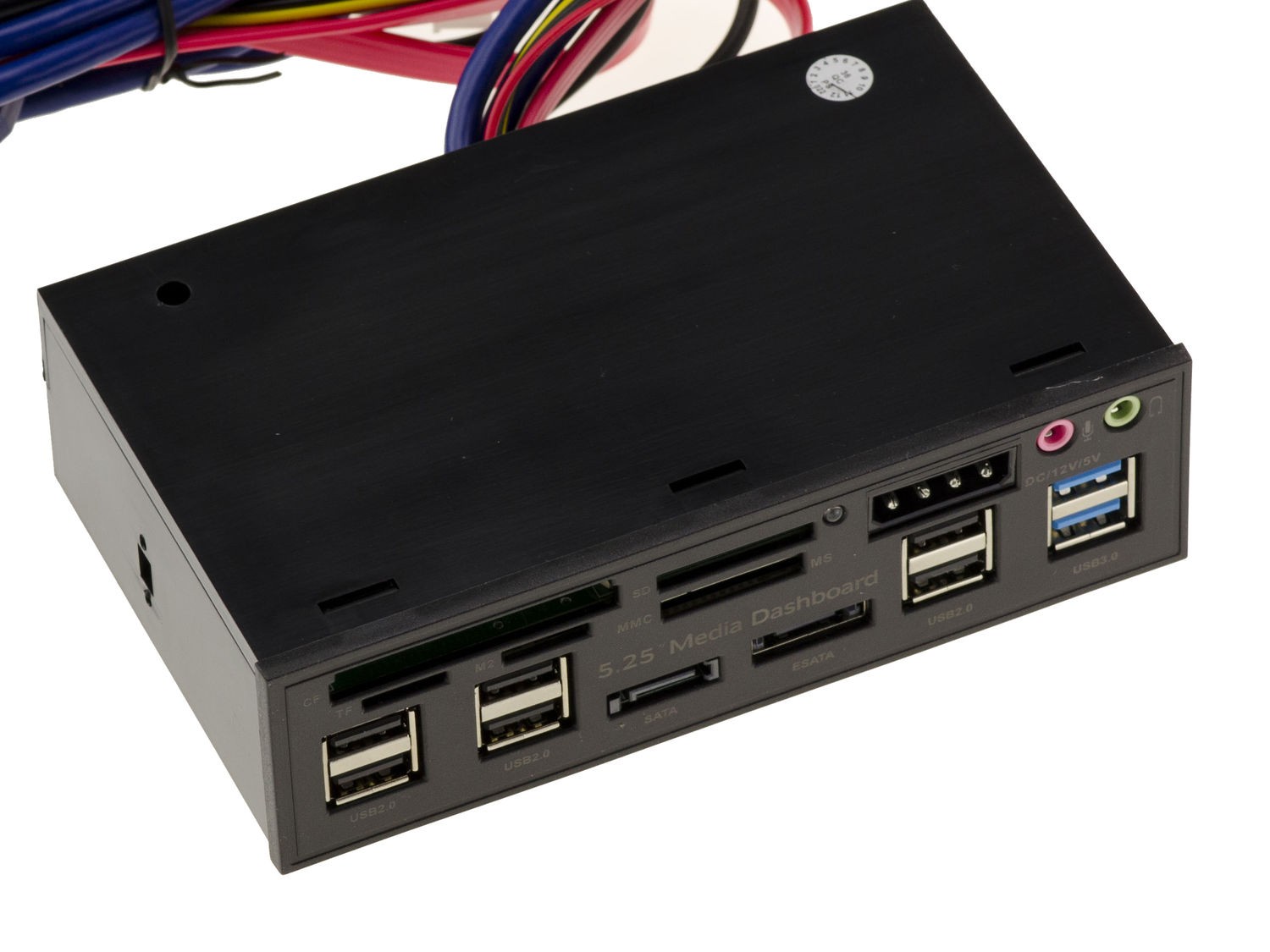

This front panel relays the functions of your motherboard, so it will need to be connected to the relevant ports.
2 USB3 ports (connected to the motherboard via an internal 19-point USB3 connector).
4 USB2 ports and 1 CF SD MicroSD (TF) M2 MS card reader (connected to the motherboard by an internal 9-pin USB2 connector).
1 eSATA port and 1 SATA port (connected to the motherboard by internal 7-point SATA connectors).
2 Audio, headphone and microphone ports (connected to the motherboard via internal audio connector).
1 Molex GND/5V/12V port (connected to the motherboard by Molex connector).
Note: this bay will replace a 5.25" bay (location of DVD/Bluray players on the front).
Length of internal cords: 60cm.
