Welcome to our stores!Discover Top Quality Products! We assure your satisfaction.5PCS 2.17in Panel Mounting Shielded RJ45 CAT6 Waterproof ConnectorImage GalleryProduct Information

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. The shielded coupler maintains the shield continuity offering protection from EMI/RFI interference. Specifications:
INGRESS PROTECTION: IP68（Waterproof and dustproof）
Thread: M23
Color: Black, Blue
Number of cores: 8 PIN
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (4.5～7.5) mm
Connector transmission classification: CAT5, CAT5E, CAT6
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 2.4A
Rated voltage: 250VAC
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10mΩ
Material:
Shell: nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:

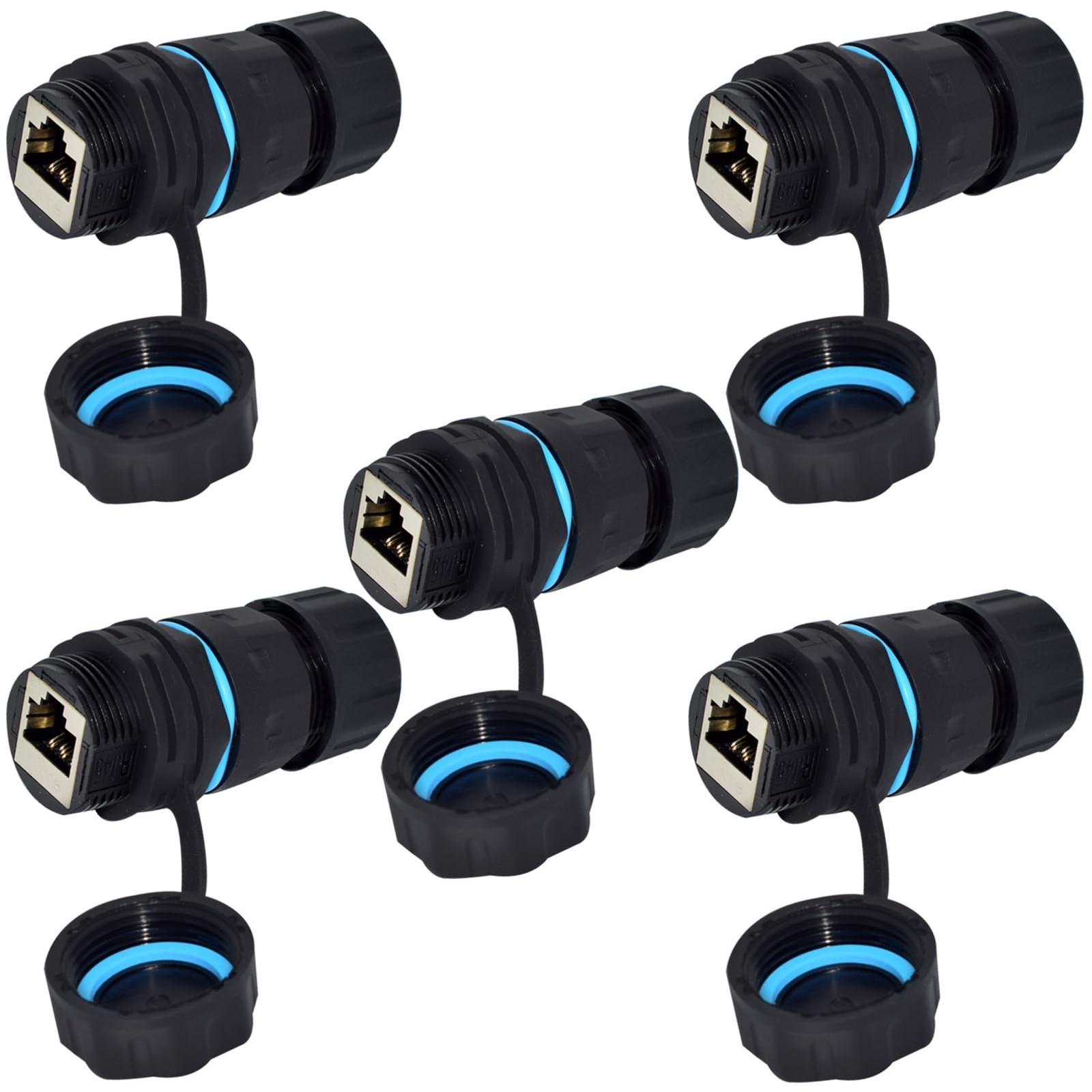

5x M23-CAT6 Panel Mounting Shielded Waterproof RJ45 Connector

Product Highlights

• Small Size(55.2mm, 2.17inch): The 3.23in Panel Mounting Shielded RJ45 CAT6 Waterproof Connector is a specialized termination component designed to create a robust, sealed, and electromagnetically shielded connection for Ethernet cables. Its compact and shorter body structure makes it suitable for network connections in tight spaces or connecting two shorter cables.
• High-speed Transmission: CAT6 standard provides performance of up to 250 MHz and backwards compatible with CAT5/CAT5E. Transfer speed up to 10Gbps (10000Mbps).Perfect for external holiday lighting displays, Poe security cameras, industrial applications.
• IP68 Waterproof and Dustproof: The waterproof ethernet coupler features high-quality PA66 housing and rubber rings, providing excellent sealing performance and achieving the highest IP68 waterproof rating. Designed to withstand the harshest environments, indoor/outdoor, rainy, acid, alkali, oxidation and so on.
• EASY INSTALLATION: It is miniaturization, and save installation space, No special tools required. Simply plug your existing RJ45 connectors into each end, twist the locking threads, and the internal rubber seal compresses to create a perfect waterproof barrier. The design is reusable and easy to disconnect when needed.Plug and Play.
• Shielded (FTP): It includes a metal shell and a mechanism to connect to the cable's overall foil or braid shield. This protects the data signals from electromagnetic interference (EMI) and radio-frequency interference (RFI), which is crucial in industrial settings with motors, drives, and heavy machinery.
