These DB25 Solderless Connectors are used to terminate the connection of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:
Name: 16mm Thin DB25 solderless module
Plug :
: housing, screw, card line buckle
Connector material: pure copper plated joint
Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell : Screw lock
Pin Pitch: 3.81mm/0.15in
Cable Specification: 28-16 AWG/0.15-1.5mm2
Torque: 0.2Nm (1.7Lb-In.)
Opening size (cable port): 10.5mm/0.41″
Thickness: 16mm/0.63″
Application: tax control machine, digital , PLC, PDA, MODEM, set-top , barcode machine, industrial instrumentation, etc.
Size: 60 mm×57 mm×16 mm/ 2.36″×2.24″×0.63″

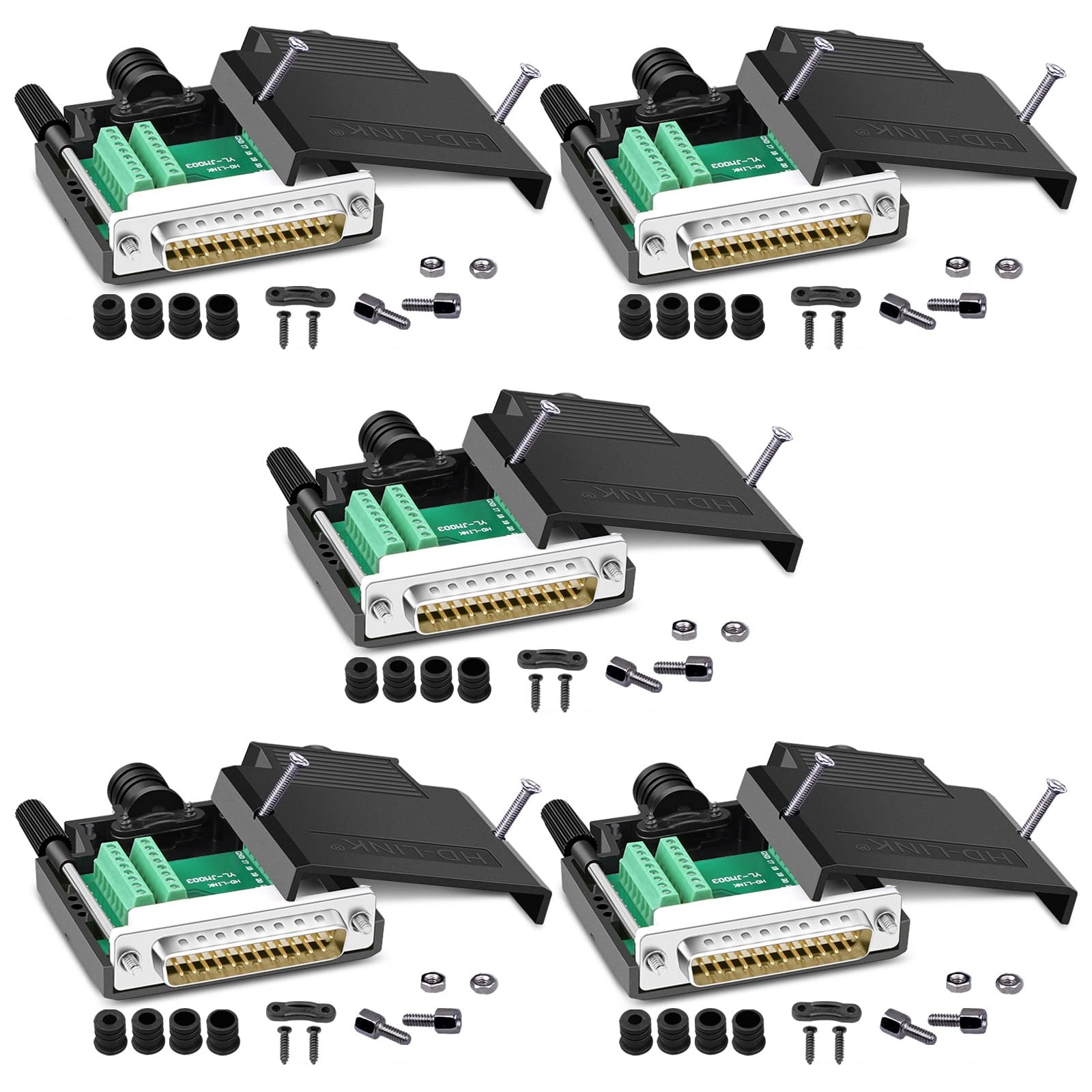

Package includes:
5 x DB25 16mm Solderless Connectors
5x cable pressing plate
10x Lock screws
10x Long bolts
5x 5mm tail pipe
5x 6mm tail pipe
5x 7.5mm tail pipe
5x 8.5mm tail pipeDURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.
SOLDERLESS: No welding required, 128 environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.
SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
REDUCE ERRORS: The terminal block area is clearly marked making proper termination virtually foolproof.
WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital , PLC, PDA, MODEM, set-top , barcode machine, industrial instrumentation and other equipment for communication.
