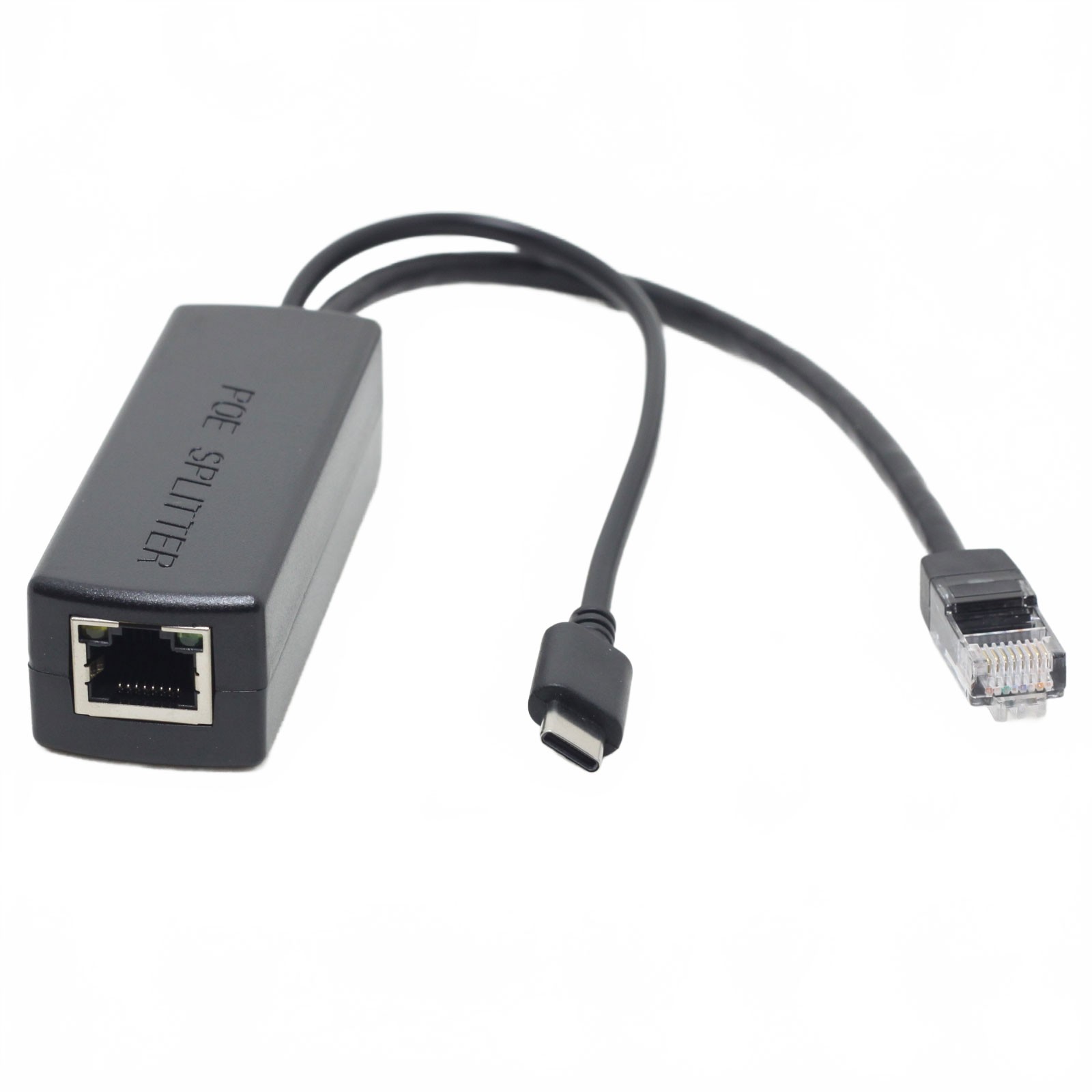

Product Overview
This Gigabit PoE splitter provides a stable 5V 3A USB Type-C output with peak current up to 4A, making it suitable for Raspberry Pi 5, Jetson boards, and other Type-C powered devices requiring up to 15–20W.
Designed for use with IEEE 802.3at (PoE+)switches or injectors, it ensures safe and efficient power delivery. The internal 2.5kV isolation protects both the powered device and upstream network equipment. Full 10/100/1000 Mbps data passthrough is supported.
Note: Although the product is compliant with IEEE802.3af, the 15.4W power limitation of af-standard devices may lead to overload protection or power failure. Use with 802.3at or 802.3bt sources is strongly recommended.
Key Features
-
Provides 5V 3A regulated output via USB Type-C
-
Supports peak output up to 4A for short-duration high current demands
-
Designed for IEEE802.3at (PoE+)power sources
-
10/100/1000Mbps Ethernet passthrough
-
Built-in 2.5kV isolation for enhanced electrical protection
-
Auto device detection and plug-and-play operation
-
Compact and lightweight design
Technical Specifications Specification Details Supported Standards IEEE 802.3af / 802.3at / 802.3bt (Use with 802.3af only if power demand ≤12W; overload risk exists above 15.4W) Input Voltage DC 44V ~ 57V (via PoE RJ45 female port) Output Voltage 5V Rated Output Current 3A Peak Output Current Up to 4A (short duration only) Output Port USB Type-C power plug Data Input Port RJ45 female (PoE IN) Data Output Port RJ45 male (Data only) Data Rate 10/100/1000 Mbps PoE IN Power Pins 1/2(+/-), 3/6(-/+), 4/5(+), 7/8(-) Isolation 2.5kV Device Detection Supported Dimensions 80 × 27 × 22 mm DC Cable Length 165 mm RJ45 Cable Length 155 mm Weight 60 g Operating Temperature -20°C ~ 45°C Storage Temperature -30°C ~ 70°C Package Includes
