6 Channel 5V Solid State Relay Module 240V 2A Low Level Trigger Listing Solid State Relay Module 6 Channel · Low Level Trigger 5V DC Input · 240V 2A AC Output // Omron SSR · Resistive Fuse · KF301 Terminals 6 Channel Solid State
Relay Module — 5V / 240V

Omron SSRs · Low Level Trigger · 5V DC Control · 240V 2A AC Output · Arduino / Raspberry Pi Compatible

6 Channels LOW Level Trigger 5V DC Input 240V 2A Output Omron SSR KF301 Terminals ⚡ MAINS VOLTAGE — This module switches 240V AC. Always isolate power before wiring. Use by qualified persons only. At a Glance 6 Channels 5V DC Control Input 240V 2A AC Output LOW Trigger Type Product Overview

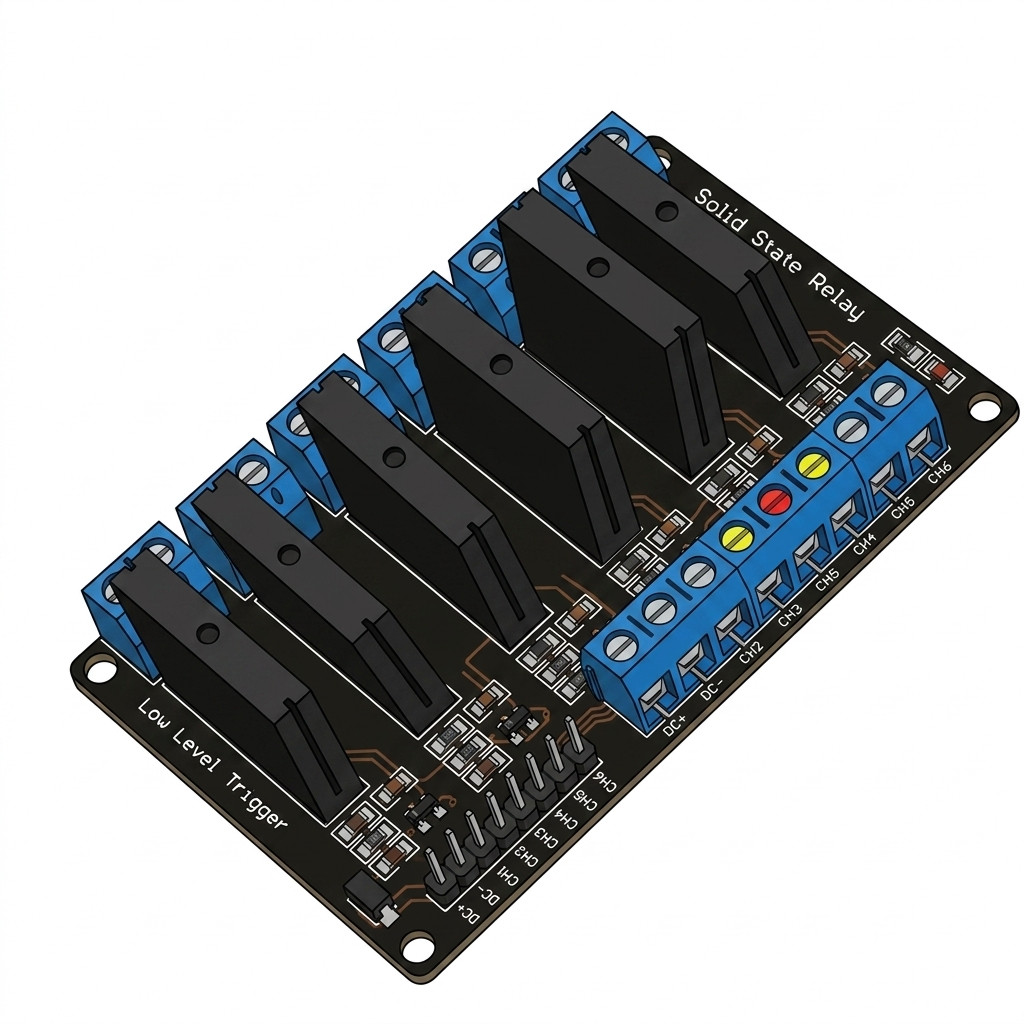

This 6-channel solid state relay module uses Omron SSR components to provide reliable, silent switching of up to 240V 2A AC loads via low-voltage 5V DC control signals. Unlike mechanical relays, solid state relays have no moving parts — meaning faster switching, no audible click, longer service life, and no contact arcing.

The module operates on low level trigger logic — pulling a channel input to 0–2.5V (logic LOW) activates the relay; 3.3–5V (logic HIGH) turns it off. This makes it directly compatible with Arduino, Raspberry Pi, ESP8266/ESP32, and any 3.3V or 5V microcontroller. Each output is protected by a resistive fuse at 240V 2A. Blue KF301 screw terminals and 2.54mm header pins provide secure, tool-free AC load wiring.

Channel Interface Map DC+ DC + (Power) Positive supply — 5V DC relay power input DC− DC − (Ground) Negative supply — common ground CH1 CH1 Signal Channel 1 trigger — low level active CH2 CH2 Signal Channel 2 trigger — low level active CH3 CH3 Signal Channel 3 trigger — low level active CH4 CH4 Signal Channel 4 trigger — low level active CH5 CH5 Signal Channel 5 trigger — low level active CH6 CH6 Signal Channel 6 trigger — low level active Trigger Logic — Low Level Active Control Signal (CH1–CH6) Voltage Range Relay State AC Output Logic LOW 0 – 2.5V ON Load powered — circuit closed Logic HIGH 3.3 – 5V OFF Load off — circuit open Pin floating / unconnected — ON ⚠ Relay may activate — always drive pins

Full Technical Specifications Number of Channels6 Relay TypeSolid State Relay (SSR) Relay BrandOmron Trigger TypeLow Level (Active LOW) Input Power Supply5V DC Input Current Draw160 mA (all channels active) Control Signal — Relay ON0 – 2.5V (Logic LOW) Control Signal — Relay OFF3.3 – 5V (Logic HIGH) AC Output Voltage (max)240V AC AC Output Current (max)2A per channel Output ProtectionResistive fuse 240V 2A per channel AC TerminalsBlue KF301 screw terminals DC Control Header2.54mm standard pin header Board Dimensions103 × 53 × 21 mm (4.05 × 2.08 × 0.82″) Compatible Logic3.3V and 5V microcontrollers Input Header Pin Reference Pin LabelTypeFunction DC + Power 5V DC positive supply — powers relay module DC − Power Negative / GND — common with MCU ground CH1 Signal Input Channel 1 trigger — LOW = relay ON CH2 Signal Input Channel 2 trigger — LOW = relay ON CH3 Signal Input Channel 3 trigger — LOW = relay ON CH4 Signal Input Channel 4 trigger — LOW = relay ON CH5 Signal Input Channel 5 trigger — LOW = relay ON CH6 Signal Input Channel 6 trigger — LOW = relay ON Key Features 6 independent solid state relay channels Genuine Omron SSR components Low level trigger — active LOW logic 5V DC control, 240V 2A AC output per channel Resistive fuse protection on each AC output No moving parts — silent, no audible click Longer service life than mechanical relays No contact arcing — cleaner switching Blue KF301 screw terminals for AC load wiring Standard 2.54mm header for DC control side 3.3V and 5V microcontroller compatible Works with Arduino, Raspberry Pi, ESP32/8266 Typical Applications Home Automation Arduino Mains Switching Raspberry Pi Control Lighting Control Appliance Switching HVAC Control Industrial Automation ESP8266 / ESP32 IoT Irrigation Systems Smart Home Projects Fan / Pump Control PLC Replacement Safety & Installation Notes ⚡ Important Safety Information

• This module switches mains voltage (240V AC). Always isolate power before connecting or disconnecting AC wiring.
• Installation should only be performed by a qualified person familiar with mains voltage safety.
• Maximum AC load per channel is 240V / 2A. Do not exceed rated current — each channel is fuse protected.
• Ensure all AC wiring is fully insulated and enclosed. Never leave exposed mains terminals accessible.
• Always connect DC ground (DC−) to the microcontroller GND to ensure correct logic reference.
• Unconnected/floating CH pins may cause the relay to activate — always drive all pins to a defined state.
• Not suitable for inductive or motor loads without appropriate snubber or TVS protection.

Package Contents 1× 6-Channel SSR Module Omron SSRs pre-fitted KF301 Terminals installed 2.54mm header pins

✔ Brand New · Omron SSR · Fast Dispatch
