Description:

• - mini infrared wireless remote control kit consists of ultra-thin infrared remote control and 38KHz infrared receiver module.

• - It supports launching with IR double LED / LIRC software / XBMC system / Double GPIO button.

• - Mini ultra-thin infrared remote control , 38 KHZ infrare dreceiving module

• - Has 20 function keys, the infrare demission furthest distance up to 8 meters, very suitable for indoor control devices of all kinds.

• - Infrared remote control receiving module can receive standard 38 KHZ modulation signal, through the study of the programming , can realize the remote control signal decoding operation, which can produce all kinds of remote control robots and interactive work.

Specification:

• - Material: Plastic

• - Product detailed size: remote control 85 x 40mm line length about 175mm need a CR2025 3V battery, not included

• - CR2025 environmental button battery capacity: 160mah

• - Emission distance: 8m or more (specifically related to the surrounding environment, sensitivity of the receiving end, etc.)

• - Effective angle: 60 degrees

• - Surface sticker material: 0.125mmPET

• - Effective life: 20,000 times

• - Quiescent current: 3-5uA

• - Dynamic current: 3-5mA

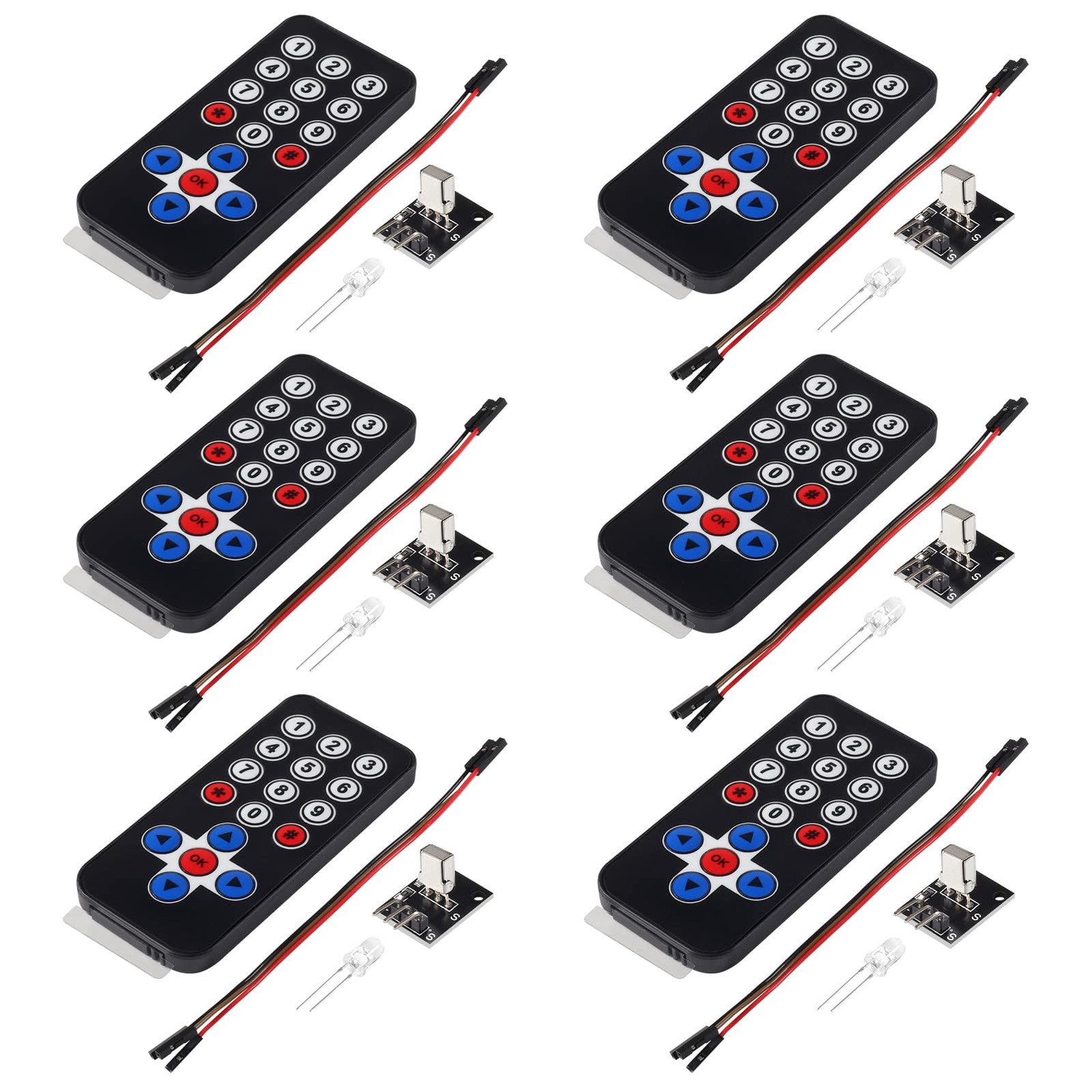

Package Includes:

6 Piece Remote control

6 Piece Receiving board

6 Piece Cable

❃❃Dynamic current: 3-5mA
❃❃Note： not included battery (you can use the CR2025 )
❃❃Product detailed size: remote control 85 x 40mm line length about 175mm
❃❃Effective life: 20,000 times
❃❃ for Arduino suite by ultrathin Mini infrared wireless remote control infrared remote control and 38 KHZ infrared receiving module.
