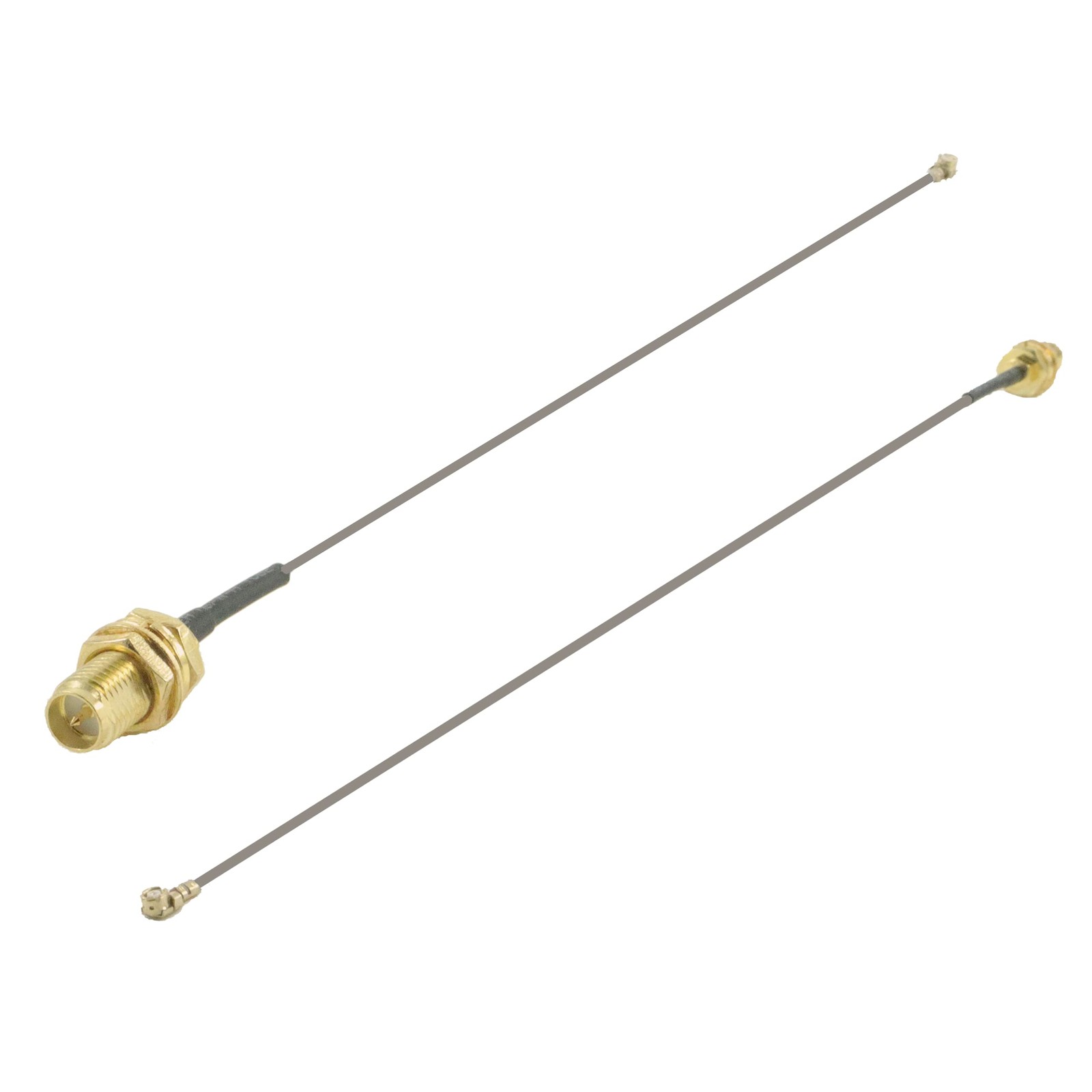

This short high quality coax jumper cable is used to connect external RP-SMA devices such as antennas to RF radio sources which have circuit board-level surface mounted Hirose U.FL (I-PEX MHF1) connection points.
Common applications include WiFi access points, PCI expansion cards, routers, software defined radio (SDR) systems, Bluetooth, ZigBee, Helium, LoRa and others.
This adapter cable is made with RF1.37mm diameter coax which has lower signal loss (attenuation) at high frequencies than most other micro-coaxes, yet is thin and flexible enough for most applications. Its 8 inch length gives you lots of flexibility for routing the cable inside around tight spaces in your chassis without sacrificing performance.
Specifications
Frequency Range: DC to 6 GHz
Connector 1: Standard U.FL
Connector 2: Standard Reverse Polarity SMA Female Straight
Pins: Gold-Plated
Cable : RF1.37 mm
Cable Length: 8 inches (200 mm)
Impedance: 50 Ohm
VSWR:
