Manufacturer: APC

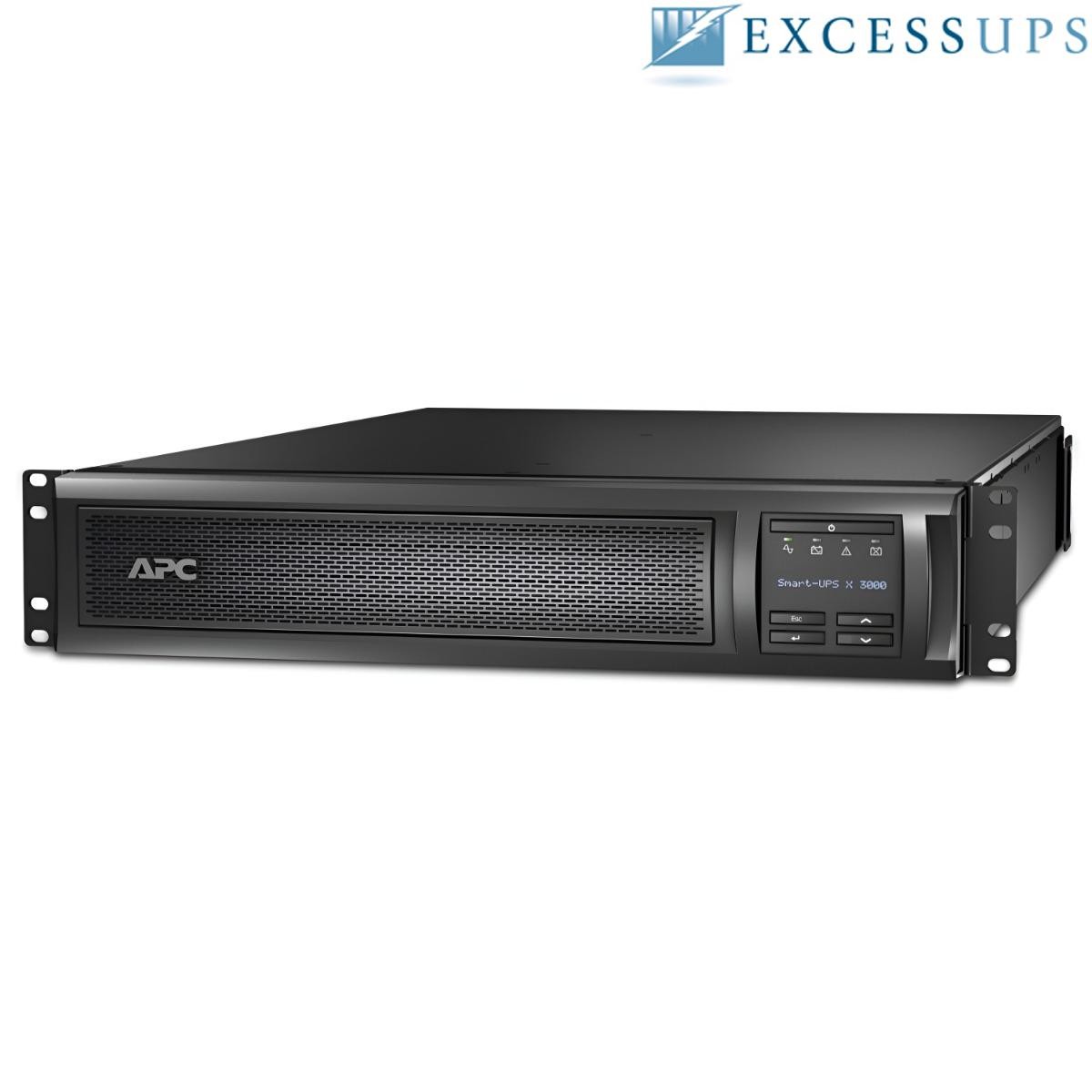

Model: APC Smart-UPS X 3000VA 2700W, LCD, RM 2U, 208/230/240V
Condition: New Batteries, Refurbished UPS
Part Number: SMX3000RMHV2U
Maximum Output: 2700W / 3000VA
Typical Backup Time at Half Load: 18.1 Minutes (1350 Watts)
Typical Backup Time at Full Load: 6.3 Minutes (2700 Watts)
Input: IEC 320 C20, 208/230V (220/240V Supported)
Output: (8) IEC 320 C13, (1) IEC 320 C19
Topology: Line-Interactive
Output Waveform: Sine Wave
Extended Runtime: Yes – Compatible with SMX120RMBP2U External Battery Packs
Replacement Battery: APCRBC117
Warranty: 1 Year Full Replacement Warranty

Description: The APC Smart-UPS X SMX3000RMHV2U is a 3000VA / 2700W line-interactive UPS designed for servers, networking equipment, storage systems, and other critical IT applications. This 2U rackmount UPS supports 208V, 220V, 230V, and 240V operation and provides (8) IEC C13 and (1) IEC C19 output receptacles. It delivers sine-wave output, Automatic Voltage Regulation (AVR), a multifunction LCD status and control console, hot-swappable batteries, SmartSlot expansion, USB connectivity, Emergency Power Off (EPO), and extended-runtime capability using compatible SMX120RMBP2U external battery packs. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.





APC Smart-UPS X 3000VA 2700W RM SMX3000RMHV2U - User Manual





SMX3000RMHV2U - APC Smart-UPS X FamilySmart-UPS X Part NumberSMX3000RMHV2U UPS TopologyLine-Interactive Form FactorRack / Tower Convertible Rack Height2U Rated Power in VA3000VA Rated Power in W2700W Maximum Configurable Power3000VA / 2700W Main Input Voltage208V / 230V Other Input Voltage220V / 240V User-Selectable Voltage200–240V Main Output Voltage230V Other Output Voltage208V / 220V / 240V Input Connection TypeIEC 320 C20 Output Connections(8) IEC 320 C13  (1) IEC 320 C19 IEC Jumper Cables(2) Cable Length6 ft (1.83 m) Number of Cables1 Battery TypeSealed Lead-Acid Extended RuntimeYes External Battery PackSMX120RMBP2U Maximum External Battery PacksUp to 10 Rail KitIncluded    Input  Main Input Voltage208V / 230V Other Input Voltages220V / 240V Selectable High-Voltage Range200–240V Input ConnectionIEC 320 C20 Additional Supplied Input CordsSchuko CEE 7 / EU1-16P; BS1363A British Input Voltage Operating Range140–280V Input Frequency50/60 Hz ±3 Hz Auto-Sensing Number of Power Cords1 Input Cord Length6 ft (1.83 m) Automatic Voltage Regulation (AVR)Yes Generator CompatibleYes    Output  Output Power Capacity3000VA / 2700W Maximum Configurable Power in VA3000VA Maximum Configurable Power in W2700W Main Output Voltage230V Other Output Voltages208V / 220V / 240V

Output Connection Type

(8) IEC 320 C13

(1) IEC 320 C19

(2) IEC Jumpers





Output Groups3 Switchable Outlet Groups Switchable Outlet GroupsYes Output WaveformPure Sine Wave Waveform in Battery ModePure Sine Wave Output Frequency50/60 Hz ±3 Hz Sync to Mains Crest Factor3:1 Harmonic DistortionLess Than 5% Transfer Time2–4 ms / 6 ms Typical, 10 ms Maximum Voltage RegulationAutomatic Voltage Regulation (AVR) Cold StartYes Load ManagementSwitchable Outlet Groups Outlet Group ControlSupported Sequential Shutdown / RestartSupported through Outlet Groups    Batteries & Runtime  Battery TypeSealed Lead-Acid Replacement BatteryAPCRBC117 RBC Quantity1 Typical Backup Time at Half Load18.1 Minutes (1350W) Typical Backup Time at Full LoadApproximately 6.3 Minutes (2700W) Runtime at 2700WApproximately 6 min 15 sec Typical Recharge Time3 Hours Battery Life3–5 Years Battery Power738 VAh Runtime Battery Charge Power245W Rated Hot-Swappable BatteriesYes User-Replaceable BatteriesYes Extendable RuntimeYes External Battery Pack CompatibilitySMX120RMBP2U Maximum Number of External Battery Packs10 1 × SMX120RMBP2U2214 VAh 2 × SMX120RMBP2U3690 VAh 3 × SMX120RMBP2U5166 VAh 4 × SMX120RMBP2U6642 VAh 6 × SMX120RMBP2U9594 VAh 8 × SMX120RMBP2U12546 VAh 10 × SMX120RMBP2U15498 VAh Battery ExpansionScalable Extended Runtime    Communications & Management  Control PanelMulti-Function LCD Status and Control Console LCD DisplayYes SmartSlot(1) SmartSlot Network Management CardOptional via SmartSlot USB PortYes Serial CommunicationYes Emergency Power Off (EPO)Yes PowerChute CompatibilityYes PowerChute Serial ShutdownSupported Graceful OS ShutdownSupported via USB / Serial Remote MonitoringSupported with Optional Network Management Card Remote ManagementSupported with Optional Network Management Card UPS Status MonitoringYes Input Voltage MonitoringYes Output Voltage MonitoringYes Load MonitoringYes Battery Status MonitoringYes Runtime MonitoringYes Alarm MonitoringYes Event MonitoringSupported Network-Based ManagementAvailable through Optional SmartSlot Card Environmental MonitoringAvailable with Compatible Network Management Accessories    User Interface, Alerts & Controls  Front PanelMulti-Function LCD Status and Control Console Display TypeLCD UPS Status DisplayYes Load Level DisplayYes Battery Status DisplayYes Estimated Runtime DisplayYes Input / Output InformationDisplayed through LCD Configuration MenuYes On-Line StatusYes On-Battery StatusYes Replace Battery IndicatorYes Overload IndicatorYes Audible AlarmYes On-Battery AlarmYes Low-Battery AlarmYes Configurable Alarm DelaysYes Emergency Power OffYes Cold Start ControlSupported Switchable Outlet Group ControlSupported    Power Management Features  Automatic Voltage RegulationYes Boost AVRSupported Trim AVRSupported Switchable Outlet Groups3 Load SheddingSupported through Outlet Groups Controlled Equipment ShutdownSupported Controlled Equipment RestartSupported Sequential Outlet Group ControlSupported Cold StartYes Generator CompatibilityYes Extended Runtime CapabilityYes    General  Product Web Sub-FamilyExtended Run ApplicationServers, Networking Equipment, Storage and Critical IT Equipment RedundantNo USB CompatibleYes Rack / Tower ConvertibleYes Rack Rail KitIncluded Tower Height2U Height3.36 in (85 mm / 8.5 cm) Width17.0 in (432 mm / 43.2 cm) Depth26.26 in (667 mm / 66.7 cm) Net Weight82.1 lb (37.32 kg) Mounting ModeRack-Mounted / Tower Convertible Mounting LocationFront Mounting PreferenceLower Rack MountableYes Tower Temperature32–104°F (0–40°C) Storage Temperature5–113°F (-15–45°C) Operating Relative Humidity0–95%, Non-Condensing Storage Relative Humidity0–95%, Non-Condensing Operating Altitude0–10,000 ft Storage Altitude0–50,000 ft (0–15,240 m) Acoustic Level55 dBA Heat Dissipation184 BTU/hr    Surge Protection & Filtering  Surge Energy Rating645 Joules Noise FilteringFull-Time Multi-Pole Noise Filtering IEEE Surge Let-Through0.3% Clamping Response TimeZero Surge & Warranty  ConditionRefurbished UPS BatteriesNew Batteries Installed Warranty1 Year Full Replacement Warranty
