Trusted, Qualified and Recognized Seller!

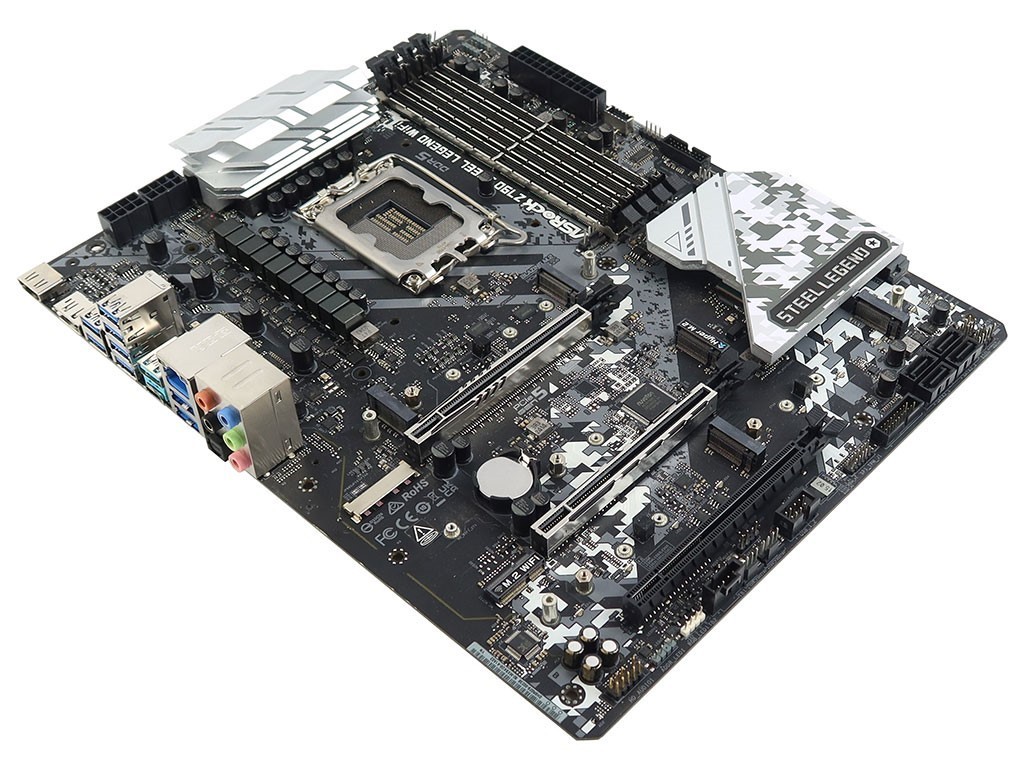

We stand 100% behind our product! Buy with confidence! ASRock Z790 STEEL LEGEND WIFI
Intel Chipset Z790 Socket LGA1700
DDR5 SATA 6Gb/s HDMI ATX Desktop
Motherboard 80-MXBKD0-A1A02
Please note, this motherboard does not include an I/O Shield, cables, fan bracket, fan backplate, VRM heatsink, 2 M.2 heatsinks, WiFi Card, or any other accessories! ASRock Z790 STEEL LEGEND WIFI Intel Chipset Z790 Socket LGA1700 DDR5 SATA 6Gb/s HDMI ATX Desktop Motherboard 80-MXBKD0-A1A02. Model: Z790 STEEL LEGEND WIFI Part Number: 80-MXBKD0-A1A02 Chipset: Intel Z790 Socket: Intel LGA1700 Compatible/Supported CPU: Supports 14th 13th 12th Gen Intel Core Processors Max Supported Memory: 256GB Number of Memory Slots: 4 Memory Type: DDR5 SDRAM Speed: Storage Interface: SATA 6Gb/s RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5 Bluetooth Standard: Bluetooth Wireless Lan Support: 802.11ax Wi-Fi 6E Network/Communications: Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Audio: 7.1 CH HD Audio Realtek ALC897 Audio Codec Connectors: 1x eDP Signal Connector; 1x SPI TPM Header; 1x Power LED and Speaker Header; 1x RGB LED Header; 3x Addressable LED Headers; 1x CPU Fan Connector (4-pin); 1x CPU/Water Pump Fan Connector (4-pin); 5x Chassis/Water Pump Fan Connectors (4-pin); 1x 24 pin ATX Power Connector; 2x 8 pin 12V Power Connectors; 1x Front Panel Audio Connector (15µ Gold Audio Connector); 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card); 2x USB 2.0 Headers (Support 3 USB 2.0 ports); 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) Input/Output Ports: 2x Antenna Ports; 1x HDMI Port; 1x DisplayPort 1.4; 1x Optical SPDIF Out Port; 1x USB 3.2 Gen2 Type-A Port (10 Gb/s); 1x USB 3.2 Gen2 Type-C Port (10 Gb/s); 8x USB 3.2 Gen1 Ports; 1x RJ-45 LAN Port; 5x HD Audio Jacks Interface: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x M.2 Key-E for WiFi, 1x M.2 Socket (M2_1, Key M), 2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_2, Key M), 2260/2280 PCIe Gen5x4 (128 Gb/s), 1x M.2 Socket (M2_3, Key M), 2242/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_4, Key M), 2242/2260/2280 PCIe Gen4x4 (64 Gb/s), 1x M.2 Socket (M2_5, Key M), 2260/2280 PCIe Gen4x4 (64 Gb/s), 8x SATA3 6.0 Gb/s Connectors Form Factor: ATX Type: Desktop Motherboard Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Onboard Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

I/O Controller
iTE I/O Controller Chip

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Unique Features
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 16+1+1 Power Phase, 60A SPS for VCore+GT
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
