Item description

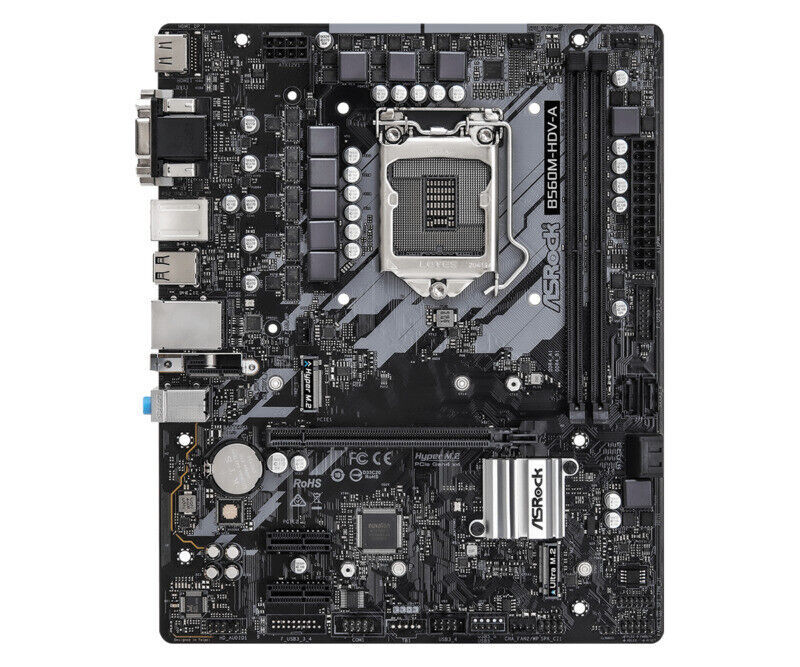

ASRocK B560M-HDV-A Motherboard Intel B560 LGA 1200 2 x DDR4 M.2 Miro-ATX DVI-D
Exclusive features
ASRock Super Alloy
- 50A high efficiency inductor
- Gem Black PCB
- High Density Moisture Resistant Fiber Circuit Board ASRock Super M.2 (PCIe Gen4x4)
ASRock Full Protection (supports all USB, audio, network interfaces)
ASRock Instant Update & App Market
CPU
- Supports 10th and 11th Generation Intel® Core™ processors (socket 1200)
- Digitally powered
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
-Intel® B560
RAM
- Dual channel DDR4 memory technology
- 2 x DDR4 memory slots
- 11th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 5000+(OC)*
- 10th Gen Intel® Core™ processor supports DDR4 (non-ECC), un-buffered memory up to 4600+(OC)*
- Supports ECC UDIMM memory modules (operating in non-ECC mode)
- Maximum system memory capacity: 64GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
*11th Gen Intel® Core™ (i9/i7/i5) natively supports DDR4 2933; Core™ (i3), Pentium and Celeron® natively support up to DDR4 2666. .
10th Gen Intel® Core™ (i9/i7) natively supports DDR4 2933; Core™ (i5/i3), Pentium and Celeron® natively support DDR4 2666.
**Due to operating system limitations, the actual memory available under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.
BIOS
- Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
- Compliant with ACPI 6.0 Compliant Wake Events
- Support SMBIOS 2.7
- CPU Core/Cache, GT, Memory, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multifunction Regulator
Onboard graphics card
- 11th Generation Intel® Core™ processors support Intel® Xe Graphics Architecture (Gen 12). 10th Generation Intel® Core™ processors support Gen 9 Graphics
- Three display output options: D-Sub, DVI-D and HDMI
- Supports simultaneous output of three monitors
- Supports HDMI 2.0, up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel® Core™ processor
- Supports HDMI 1.4 technology, up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel® Core™ processor
- Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz
- Supports D-Sub, up to 1920x1200 @ 60Hz
- Supports HDMI 2.0 port Auto Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
- Supports HDCP 2.2 with DVI-D and HDMI ports (HDCP 2.3 ready with 11th Gen Intel® Core™ processor)
*Only processors with built-in GPU can support Intel® UHD graphics chip built-in visual technology and display output.
Graphics specifications may vary between CPU types.
Sound effect
- 7.1 channel high definition audio (Realtek ALC897 audio codec)
- Support anti-surge
local area network
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Support Wake-On-LAN function
- Support anti-lightning/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Support PXE
Expansion slot
11th Generation Intel® Core™ Processors
- 1 x PCI Express 4.0 x16 slot*
10th Generation Intel® Core™ Processors
- 1 x PCI Express 3.0 x16 slot*
- 2 x PCI Express 3.0 x1 slots
- 1 x vertical M.2 slot (Key E), supports Type 2230 WiFi / BT PCIe WiFi module (integrated WiFi/BT) (on rear I/O)
*Support NVMe SSD boot
Storage
- 4 x SATA3 6.0 Gb/s ports, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 connector (M2_1), supports M Key 2260/2280 type M.2 PCIe module to Gen4x4 (64 Gb/s) (slot M2_1 is only for 11th Gen Intel® Core™ processors)*
- 1 x Ultra M.2 connector (M2_2), supports M Key 2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe modules to Gen3 x4 (32 Gb/s)*
*Supports Intel® Optane™ Technology (M2_2)
Support NVMe SSD boot
Support ASRock U.2 kit
Onboard interface
- 1 x COM port header
- 1 x SPI TPM header
- 1 x Chassis open warning function header and speaker header
- 1 x CPU Fan Connector ((4-pin))*
- 1 x CPU / Water Pump Fan Connector ((4-pin)) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors ((4-pin)) (Smart Fan Speed Control)***
- 1 x 24-pin ATX power connector
- 1 x 8-pin 12V power connector
- 1 x front panel audio jack
- 2 x USB 2.0 pin headers (supports 3 USB 2.0 ports) (supports ESD protection)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports) (supports ESD protection)
*CPU fan connector supports up to 1A (12W) power supply.
**CPU / water pump fan supports up to 2A (24W) water cooling fan.
***The case/water pump fan supports up to 2A (24W) water cooling fan.
CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can automatically detect 3-pin or 4-pin fans.
I/O port on the rear panel
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub connector
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 2.0 ports (supports ESD protection)
- 4 x USB 3.2 Gen1 ports (supports ESD protection)
- 1 x RJ-45 network interface with indicator lights (action/connection indicator and speed indicator)
- HD Audio Jack: Line In / Front / Mic
OS
- Supports Microsoft® Windows 10 64-bit / 11 64-bit
Dimensions
- Micro ATX; 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
Included
1 x motherboard.
2 x SATA II cables.
1 x I/O shield.
