Product Description

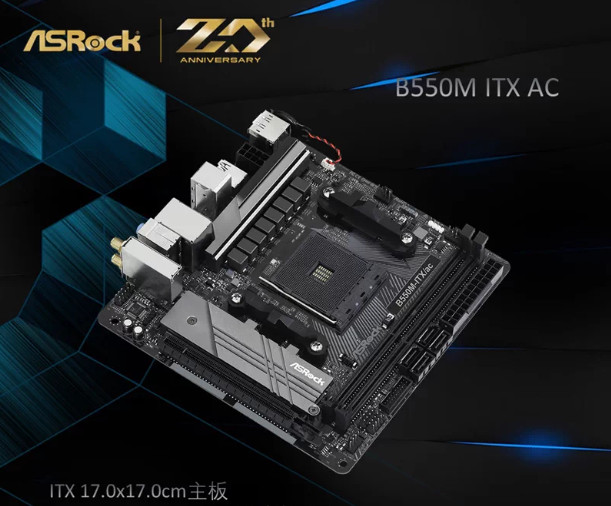

Model: ASRock B550M-ITX/ac Form Factor: Mini-ITX (170mm × 170mm)
CPU
- Socket: AMD AM4
- Supported CPUs: AMD Ryzen 3000 / 3000 G-Series, 4000 G-Series, 5000 / 5000 G-Series Desktop Processors
- 8-phase Digi Power VRM design
- *Not compatible with AMD Athlon processors
Chipset
Memory
- 2 × DDR4 DIMM slots, Max 64GB
- Dual Channel, ECC & Non-ECC Unbuffered
- Native: 2133 / 2400 / 2667 / 2933 / 3200 MHz
- OC up to DDR4 4733+ MHz
- AMD EXPO & XMP 2.0 memory profile support
Expansion Slots
- 1 × PCIe 4.0 x16 slot
- 1 × M.2 Key E slot for Wi-Fi module
Storage
- 4 × SATA3 6Gb/s ports
- 1 × Hyper M.2 Socket 3 (M-Key 2280)
- Supports PCIe Gen4 x4 NVMe SSD and SATA3 SSD
- Bandwidth shared: M.2 SATA mode will disable SATA3 port
- Supports NVMe boot
Onboard Graphics (Only for Ryzen APU)
- 1 × HDMI 2.1 (4K@60Hz)
- 1 × DisplayPort 1.4 (5K@120Hz)
Audio
- 7.1 CH HD Audio, Realtek ALC887 / ALC897 Audio CODEC
- Solid audio capacitors
Network & Wireless
- 1 × Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps)
- Onboard Wi-Fi: 802.11 a/b/g/n/ac Dual Band (2.4GHz +5GHz)
- Bluetooth 4.2
USB
Rear I/O:
- 3 × USB 3.2 Gen1 Type-A
- 1 × USB 3.2 Gen1 Type-C
- 2 × USB 2.0
Internal Headers:
- 1 × USB3.2 Gen1 header (2 ports)
- 1 × USB2.0 header (2 ports)
Rear I/O Panel
- 1 × PS/2 combo port (Keyboard/Mouse)
- 1 × HDMI 2.1, 1 × DisplayPort 1.4
- 1 × RJ45 Gigabit LAN
- 2 × Wi-Fi antenna connectors
- 3 × Audio Jacks (7.1CH HD Audio)
- 3×USB3.2 Gen1 Type-A, 1×USB3.2 Gen1 Type-C, 2×USB2.0
Power & Fan Headers
- 1 × 24-pin ATX main power
- 1 × 8-pin ATX 12V CPU power
- 2 × 4-pin PWM fan headers (supports water pump)
BIOS & Features
- UEFI AMI BIOS, 128Mb Flash ROM
- ASRock Instant Flash
- Supports Windows 10 / Windows 11 64-bit
Dimensions
Mini-ITX: 170 mm × 170 mm
