Digi Power
rn
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
rn
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
rn
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
rn
Intel® Gigabit LAN
rn
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
rn
M.2 (KEY E) For WiFi
rn
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
rn*Wi-Fi module is not included.
rn
KEY_TAB
rn3 Graphics Outputs
rn
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
rn*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
rnKEY_TAB
rn
KEY_TAB
rnPremium Power Choke
rnKEY_TAB
rnCompared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
rn
Sapphire Black PCB
rnKEY_TAB
rnPure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
rn
High Density Glass Fabric PCB
rnKEY_TAB
rnHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
rnKEY_TAB
rn
Full Spike Protection
rn
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

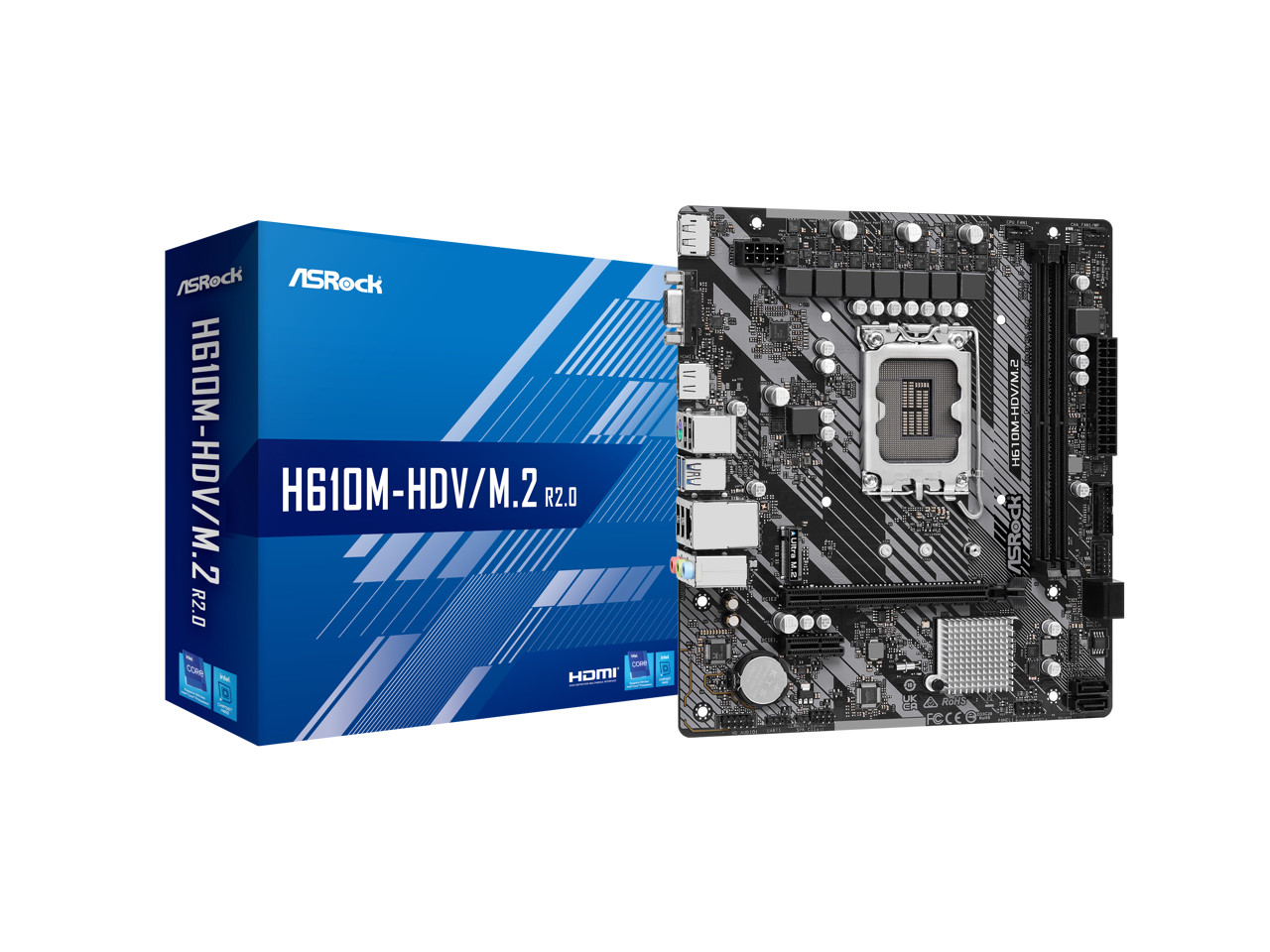

Learn more about ASRock H610M-HDV/M.2 R2.0ModelBrandASRockModelH610M-HDV/M.2 R2.0Supported CPUCPU Socket TypeLGA 1700CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)ChipsetsChipsetIntel H610MemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardUp to DDR4 3200Maximum Memory Supported64GBChannel SupportedDual ChannelECC SupportedNon-ECCBuffer SupportedUn-bufferedExpansion SlotsPCI Express 4.0 x16CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*PCI Express x1Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE1)*Supports NVMe SSD as boot disksStorage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.21 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode**Supports NVMe SSD as boot disks
Supports ASRock U.2 KitOnboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 8111HMax LAN Speed1GbpsRear Panel PortsBack I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.Software FeatureBIOS Feature128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustmentPhysical SpecForm FactorMicro ATXLED LightingNone RGBDimensions (W x L)8.66" x 7.6"Power Pin1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power ConnectorFeaturesFeaturesASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
